RL78/G13 CHAPTER 6 TIMER ARRAY UNIT
R01UH0146EJ0100 Rev.1.00 418
Sep 22, 2011

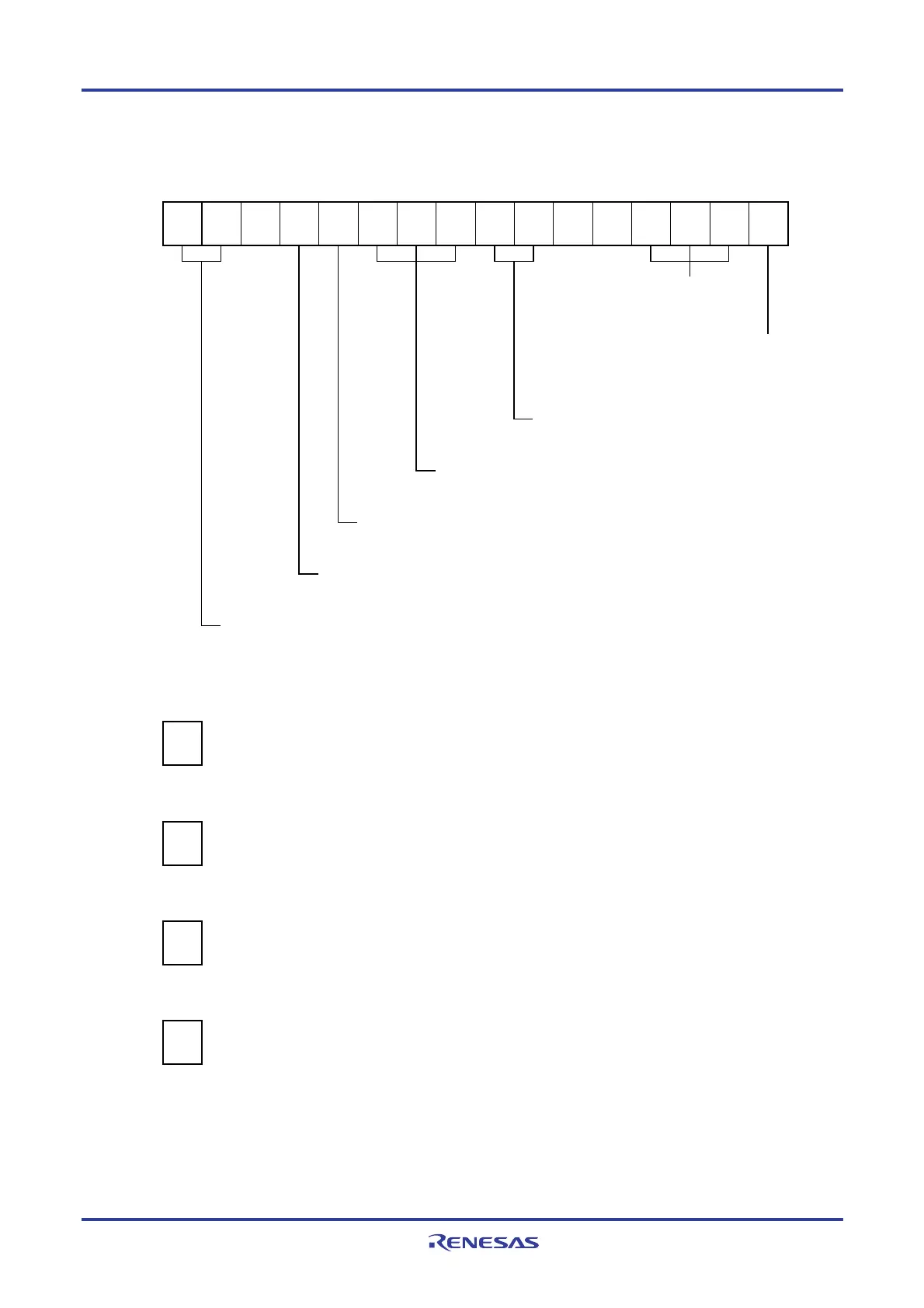

Figure 6-68. Example of Set Contents of Registers When PWM Function (Master Channel) Is Used
(a) Timer mode register mn (TMRmn)
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
TMRmn
CKSmn1
1/0
CKSmn0
0
0
CCSmn
0
MAS
TERmn
1
STSmn2
0
STSmn1
0
STSmn0
0
CISmn1
0
CISmn0
0
0
0
MDmn3
0
MDmn2
0
MDmn1
0
MDmn0
1
Operation mode of channel n
000B: Interval timer
Setting of operation when counting is started
1: Generates INTTMmn when counting is
started.
Selection of TImn pin input edge
00B: Sets 00B because these are not used.
Start trigger selection
000B: Selects only software start.
Slave/master selection
1: Master channel.
Count clock selection
0: Selects operation clock (f
MCK).
Operation clock (f
MCK) selection
00B: Selects CKm0 as operation clock of channel n.
10B: Selects CKm1 as operation clock of channel n.
(b) Timer output register m (TOm)
Bit n
TOm
TOmn
0
0: Outputs 0 from TOmn.
(c) Timer output enable register m (TOEm)
Bit n
TOEm
TOEmn
0
0: Stops the TOmn output operation by counting operation.
(d) Timer output level register m (TOLm)
Bit n
TOLm
TOLmn
0
0: Cleared to 0 when TOMmn = 0 (master channel output mode).
(e) Timer output mode register m (TOMm)
Bit n
TOMm
TOMmn
0
0: Sets master channel output mode.
Remark m: Unit number (m = 0, 1), n: Channel number (n = 0, 2, 4, 6)
