(4) Processing flow (in continuous transmission mode)

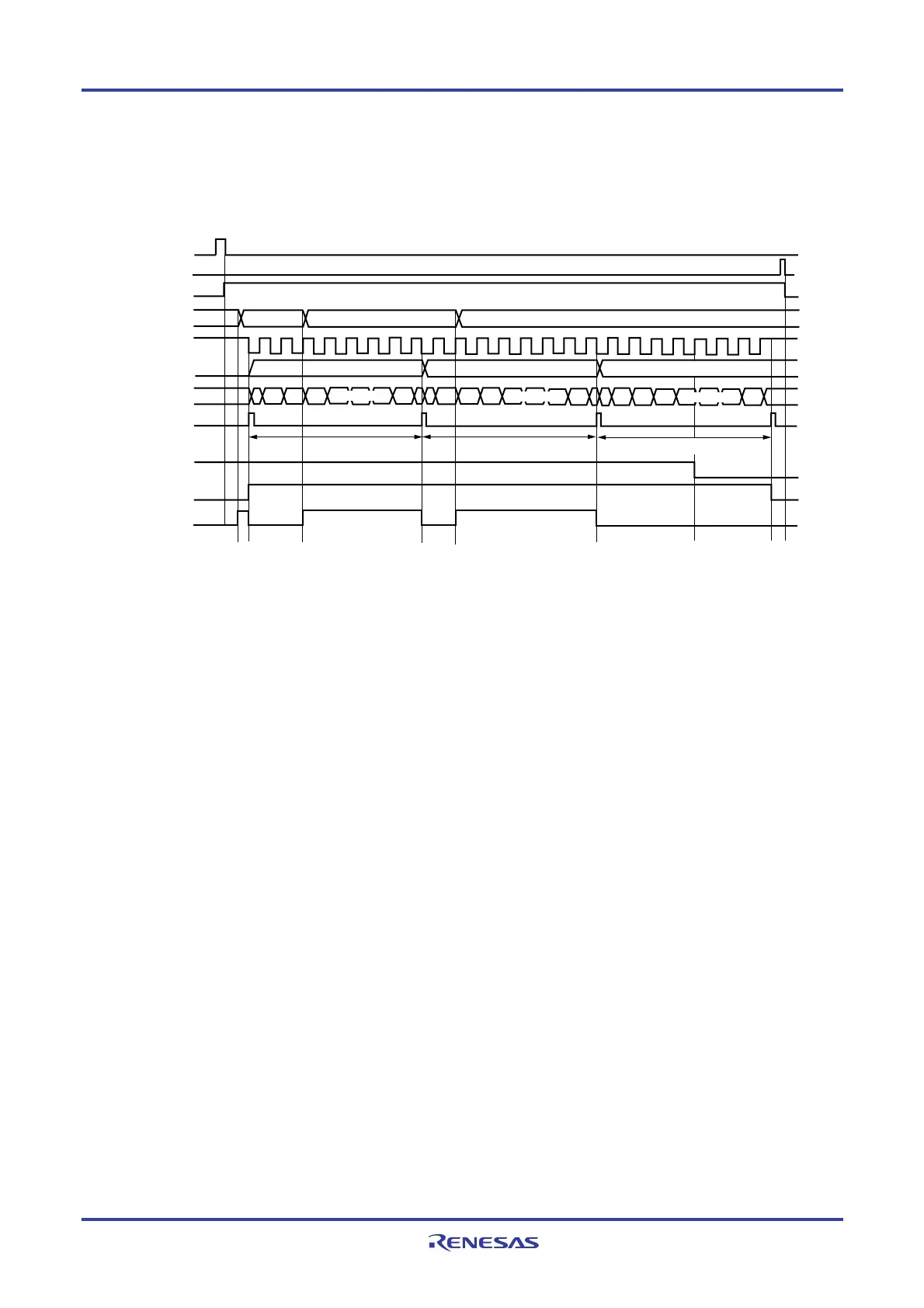

Figure 12-32. Timing Chart of Master Transmission (in Continuous Transmission Mode)
(Type 1: DAPmn = 0, CKPmn = 0)
SSmn
SEmn
SDRmn
SCKp pin
SOp pin
Shift
register mn
INTCSIp
TSFmn
Data transmission (8-bit length)
Data transmission (8-bit length)
Transmit data 2
Transmit data 1
Transmit data 3
BFFmn
MDmn0
Transmit data 2
<1>
<2>
<2>
<2>
<3>
<3>
<3>
<5><6><4>
(Note)
Shift operation
Shift operation
Shift operation
Transmit data 3
Data transmission (8-bit length)
STmn
Transmit data 1
Note If transmit data is written to the SDRmn register while the BFFmn bit of serial status register mn (SSRmn) is
1 (valid data is stored in serial data register mn (SDRmn)), the transmit data is overwritten.
Caution The MDmn0 bit of serial mode register mn (SMRmn) can be rewritten even during operation.
However, rewrite it before transfer of the last bit is started, so that it will be rewritten before the
transfer end interrupt of the last transmit data.
Remark m: Unit number (m = 0, 1), n: Channel number (n = 0 to 3), p: CSI number (p = 00, 01, 10, 11, 20, 21, 30,
31), mn = 00 to 03, 10 to 13
