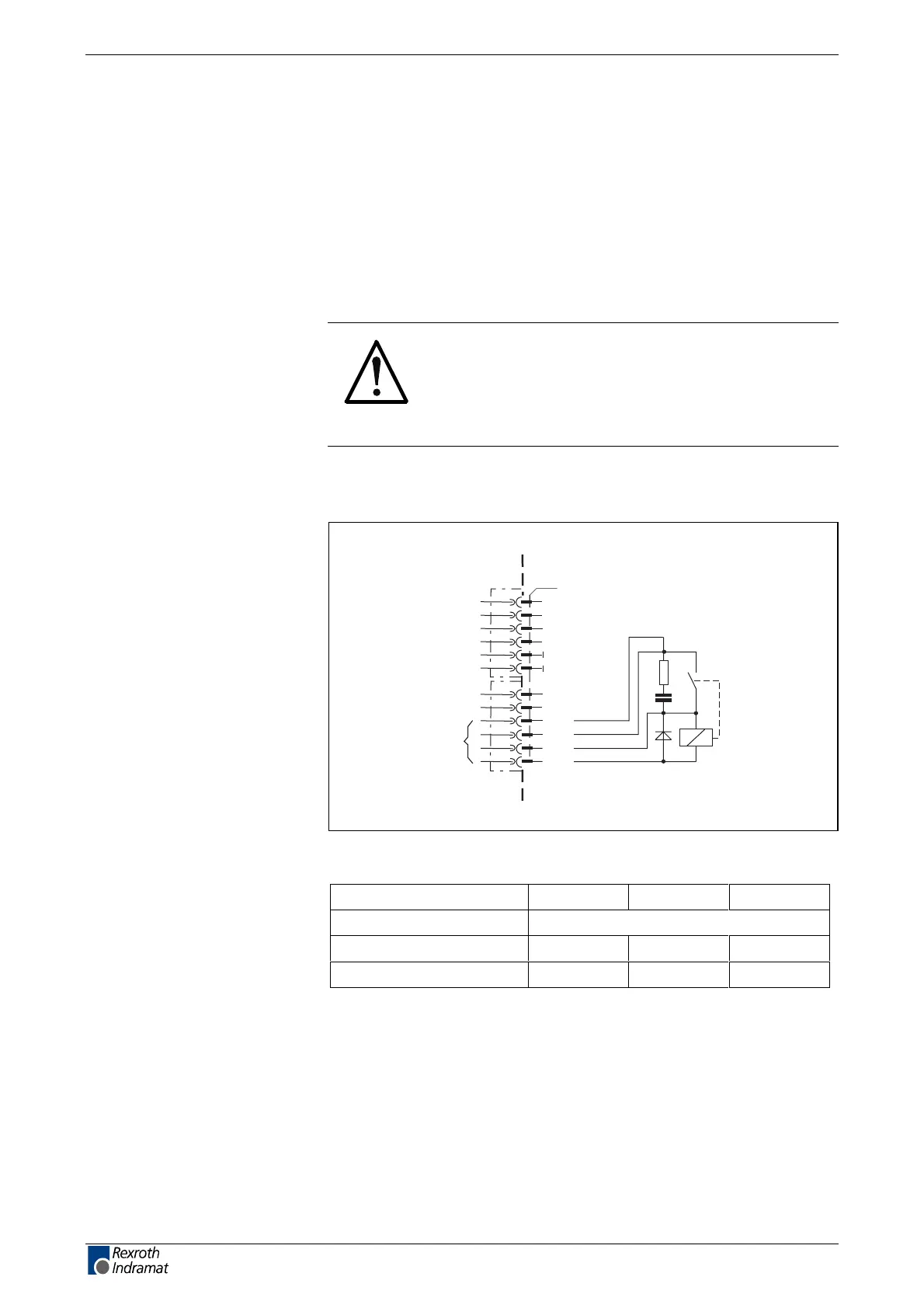

4-60 DURADRIVE HDC01.1 Drive Controller DURADRIVE Drive Controllers
DOK-DURADR-HDC01.1****-PR02-EN-P
The Bb contacts opens:
if control voltage for HDC is not applied
if 24 volts not present at the emergency stop input when the E-stop
function is activated (depends on parameterization, see function
description).
With an error in the drive (depends on parameterization, see firmware
functional description: "Power off on error").
How to use the contact, see page 7-2: "Control circuits for the mains
connection"
WARNING
Damage possible if Bb contact not connected !
The ready to operate contact Bb acknowledges the drive
is ready for mains voltage.
Integrate Bb contact as per "Control Circuits for the
Mains Connection".
Activation power ON
device-external device-internal
AP5366F1.FH7
X11
1
2
3
4
5
6
7
8
9
10
11
12
24V
0V
ON1
ON3
ON2
ON4
activation
power ON
Fig. 4-106: ON1, ON2, ON3, ON4
40 A 100 A 200 A
Control voltage DC 24 V ± 10 %
Charging and holding power 3,3 W 5,4 W 13,3 W
Charging and holding current 138 mA 225 mA 555 mA
Switching states
Bb
Connection
Power ON
(schematics)
Technical data of the contactor
