8-8 Constructing the control cabinet DURADRIVE Drive Controllers
DOK-DURADR-HDC01.1****-PR02-EN-P
8.3 Wire routing in the cable duct
• A distance of at least 100 mm between power and control or signal
cables (e.g., feedback cables) must be maintained or
• Separate cable duct with metal divider.
Metal cable duct
MB5008F1.FH7
2...4 mm
>100 mm
Plastic cable duct

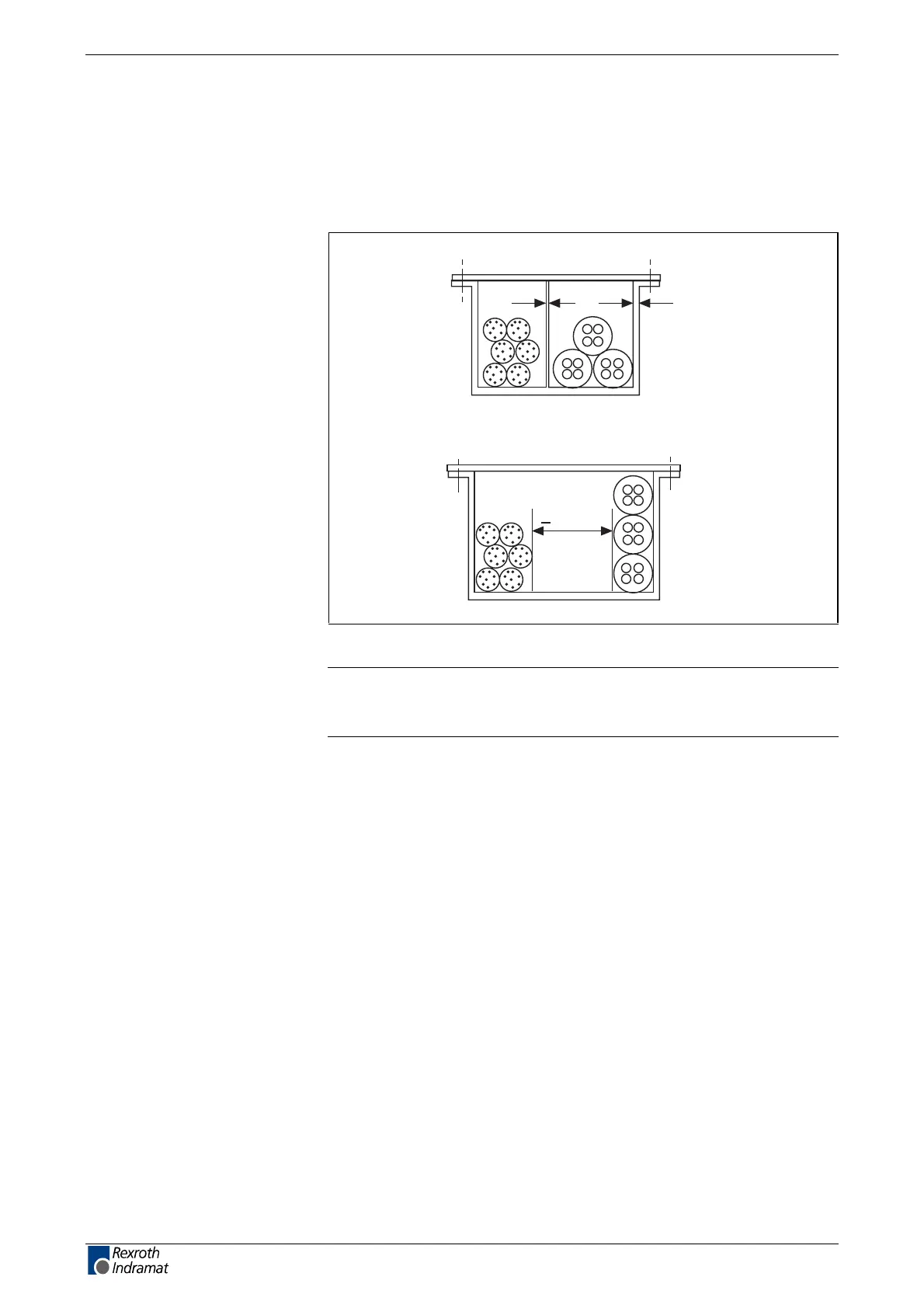

Fig. 8-9: Cable duct variant
Note: Details are specified in the project planning manual
"Electromagnetic compatibility (EMC) or AC drives“, doc. Type
DOK-GENERL-EMV********-PRxx.
