4-28 DURADRIVE HDC01.1 Drive Controller DURADRIVE Drive Controllers
DOK-DURADR-HDC01.1****-PR02-EN-P
X2, Serial interface
Note: Serial interfaces are generally used for programming,
parameterization and diagnoses upon commissioning and
during service. It can be operated either as RS 232 or RS 485.
Technical description of connector
Ap5265f1.FH7
1
8
9
15

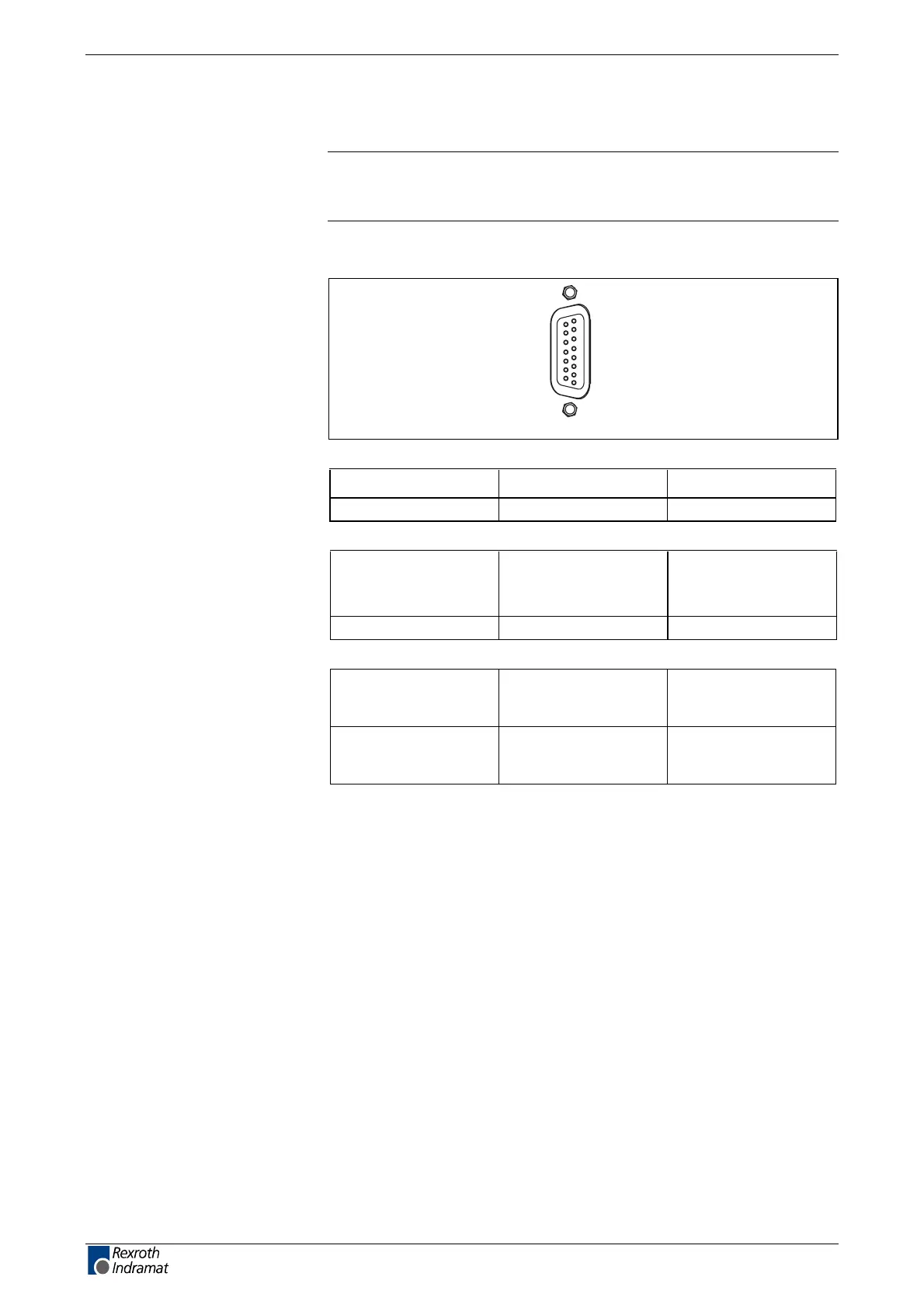

Fig. 4-38: Connector X2
Type No. of pins Design
D-SUB 15 Bushings on unit
Fig. 4-39: Design
Cross section
single wire
[mm²]
Cross section
multi core wire
[mm²]
Cross section
in AWG
gauge no.:
-- 0.25-0.5 --
Fig. 4-40: Connection cross section
RS 232 pin 4, 5
against each other
against 0 V
present
RS 485 pin 2, 3
against each other
against 0 V
present
Fig. 4-41: short circuit protection
Illustration
Design
Connection cross section
Short circuit protection
