DURADRIVE Drive Controllers DURADRIVE HDC01.1 Drive Controller 4-29
DOK-DURADR-HDC01.1****-PR02-EN-P
RS 232 interface
The RS 232 interface is used for programming, parametrization and
diagnoses at start up and service.
It makes possible:
• a participant number of maximum 1
• a transmission length of up to 15 m
• transmission rates of 9600/19200 baud
Using an RS 232 interface only one drive at a time can be parametrized
with the DriveTop start up program.
AP5063F1.FH7
RxD
TxD
GND
DTR
DSR
RTS
CTS
3
2
7
20
6
4
5
max. 15 m
PC with 25-pin
D-SUB connector
TxD
RxD
0 V
3
2
4
5
7
RS485+
RS485-
X2
TxD
RxD
GND
DTR
DSR
RTS
CTS
3
2
5
4
6
7
8
max. 15 m
PC with 9-pin
D-SUB connector
TxD
RxD
0 V
3
2
4
5
7
RS485+
RS485-
X2
IKB0005
1)
1)
1) Connect the metallic connector case with the device potential using the
fastening screws of the connector

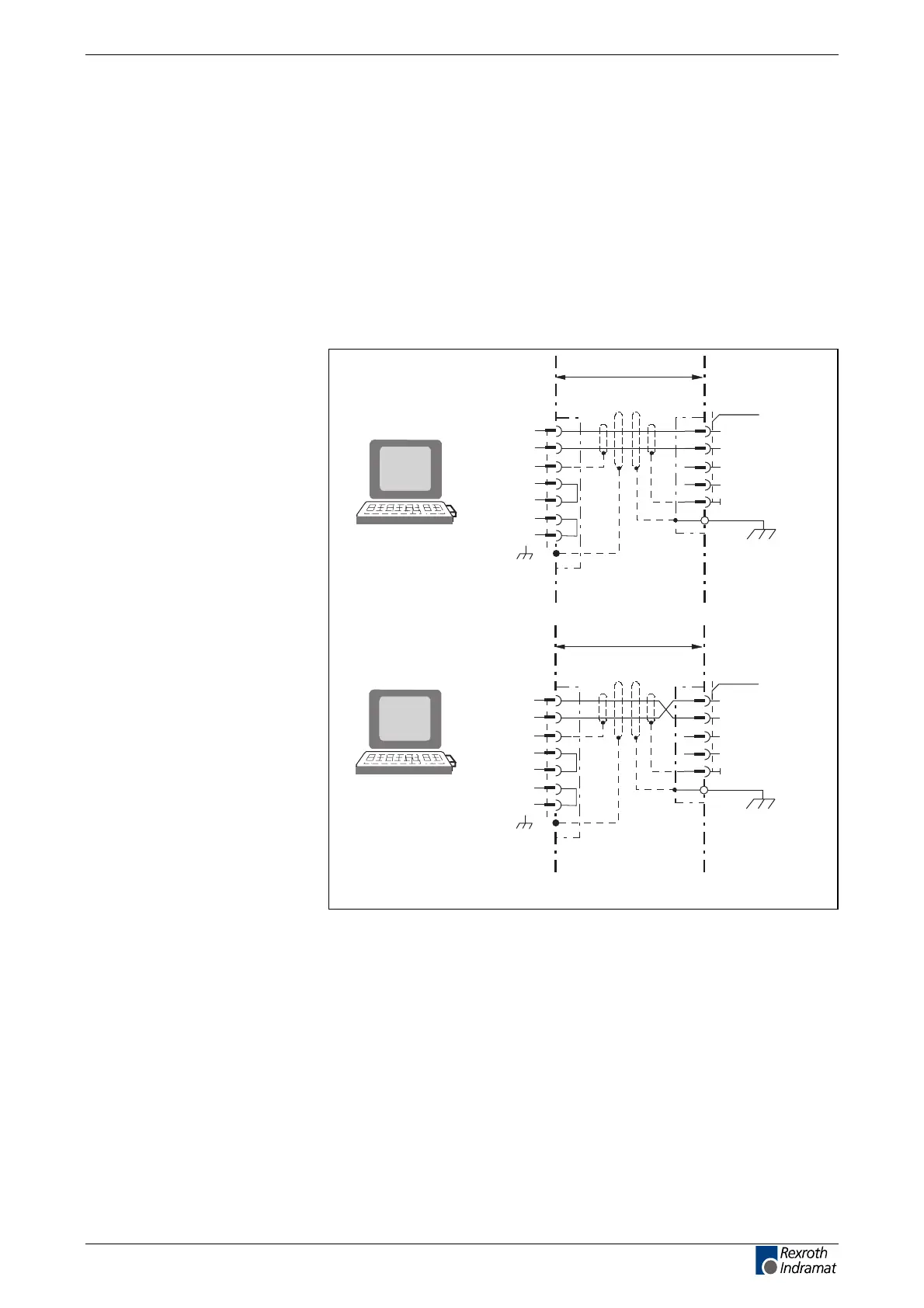

Fig. 4-42: Connecting a PC to the RS 232 interface on a HDC
Connection
RS232
