Rexroth Indramat DURADRIVE SYSTEM200 - X11, Ready to Operate Contact Bb, Activation Power on

4-56 DURADRIVE HDC01.1 Drive Controller DURADRIVE Drive Controllers
DOK-DURADR-HDC01.1****-PR02-EN-P
drive or
E/A-
module
drive or
E/A-
module
drive
120 R
120 R
IAN+
IAN-
EcoX bus
3,5V
2,5V
1,5V
voltage
time
dominant
recessive
IAN+
IAN-
recessive
SV5179F1.FH7

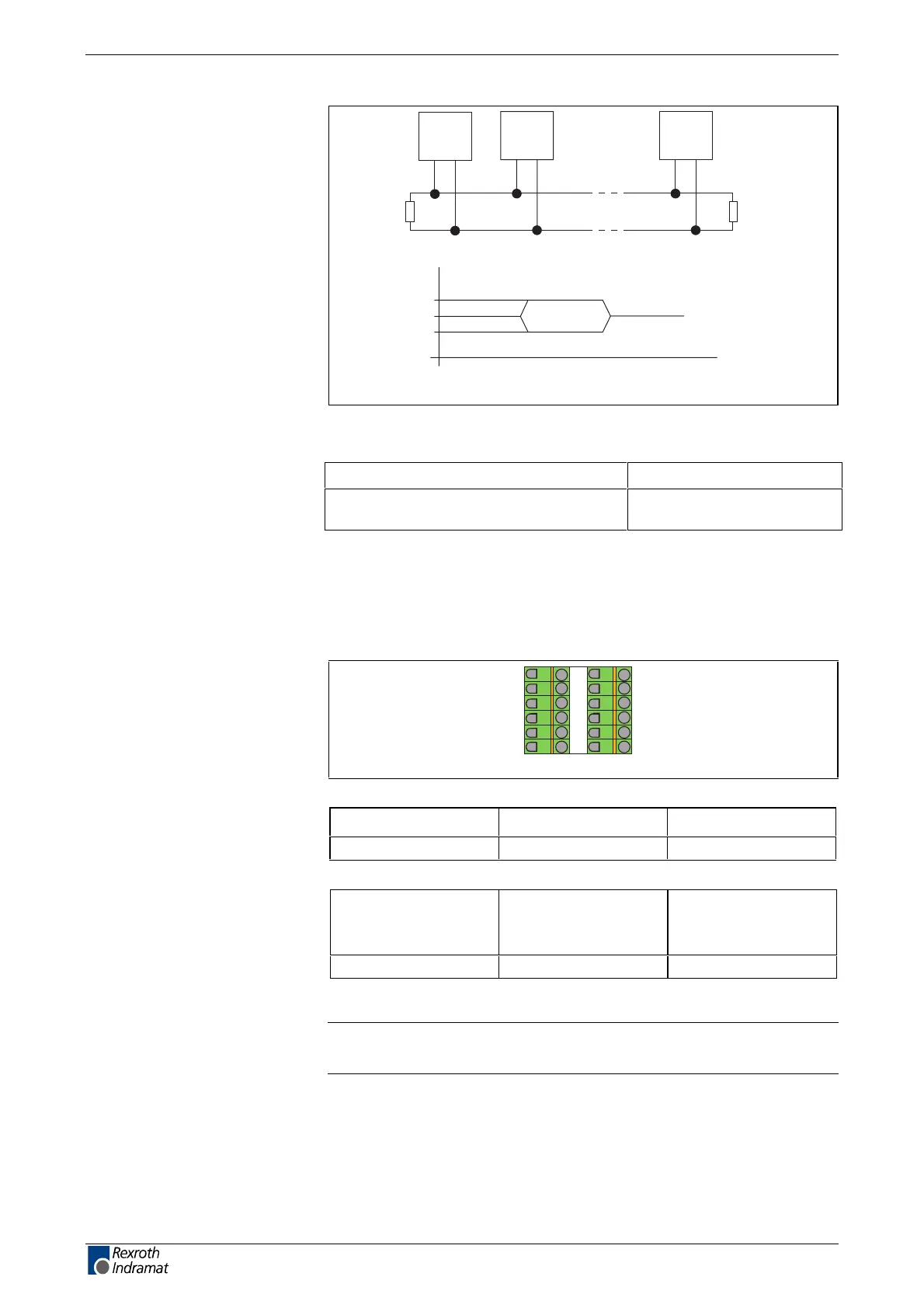

Fig. 4-95: EcoX interface
max. bus length l: 20 m
Terminating resistor at both ends of the bus
cable
2 x 120 R / 250 mW
X11, Ready to operate contact Bb, activation power ON
Technical description of connector
Ap5269f1.FH7
123456
7
9
1011 12
8
Fig. 4-96: Connector X11
Type No. of pins Design
Spring contact 2 x 6 Bushing on connector
Fig. 4-97: Design
Cross section
single wire
[mm²]
Cross section
multi core wire
[mm²]
Cross section
in AWG
Gauge no.:
0.2-2.5 0.2-1.5 24-16
Fig. 4-98: Connection cross section
Note: Always use a shielded cable for connection. Connect the
shield to XS1, XS2 or XS3.
EcoX bus
Bus cable
Illustration
Design
Connection cross section
