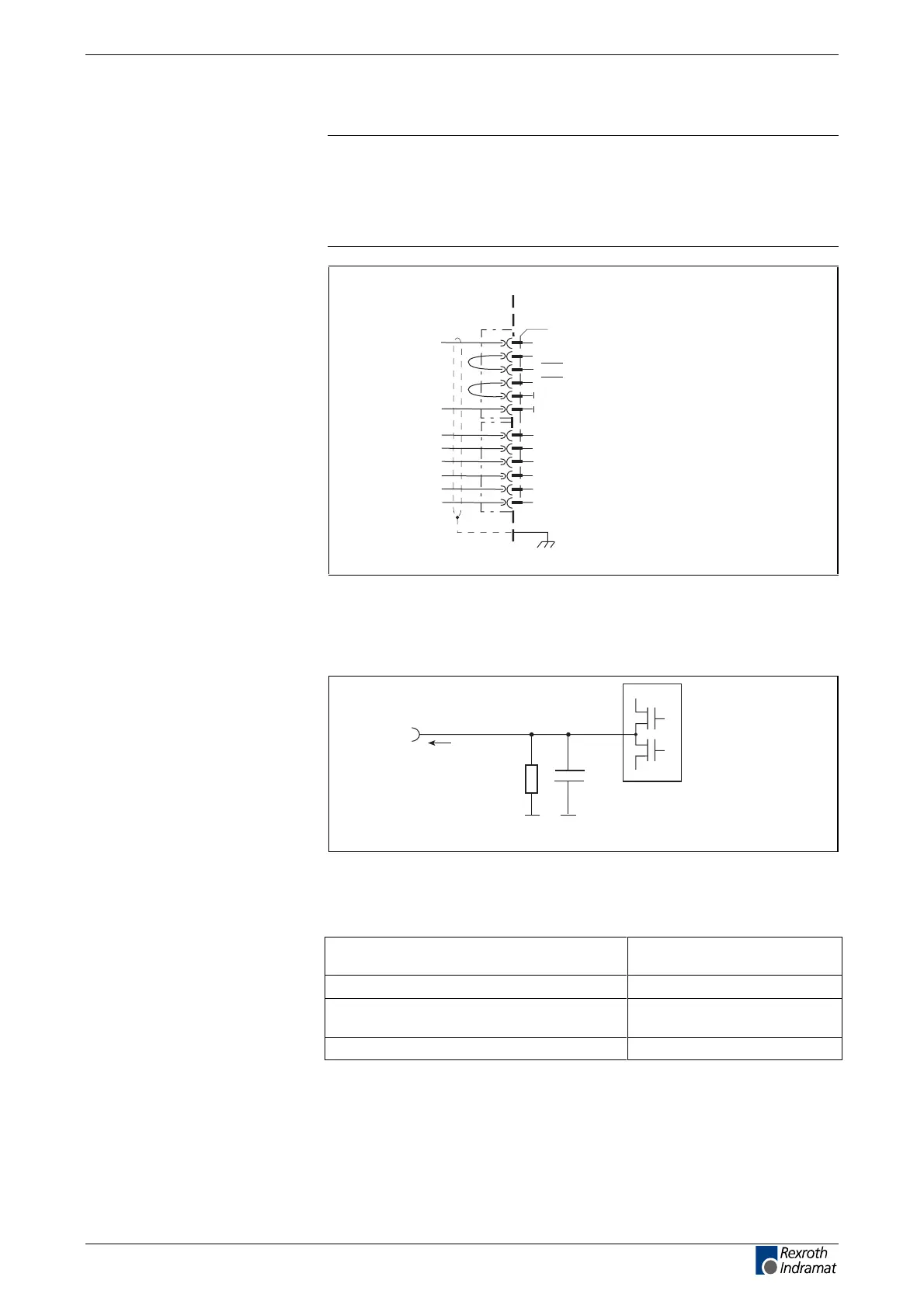

DURADRIVE Drive Controllers DURADRIVE HDC01.1 Drive Controller 4-57
DOK-DURADR-HDC01.1****-PR02-EN-P
ZKS control supply
Note: Internal DC bus dynamic brake setup (ZKS) not included in
40 A units.
The fast discharge of the power DC bus when switching off the
control voltage is only carried out automatically, if the internal
24 V power supply is used for controlling the ZKS.
device-external device-internal
AP5359F1.FH7
X11
1
2
3
4
5
6
7
8
9
10
11
12
+24Vpro
XS
0V
ZKS1
ZKS2
Fig. 4-99: DC bus dynamic brake control
At delivery: with bridges at: X11.2 to X11.3
X11.4 to X11.5
Ap5184f1.fh7
R1
C1
Q
n
I
out
Schematics
R1: approximately 12 R
C1: 470 µF
Fig. 4-100: Voltage source from X2.1
max. output voltage
(dependent of control voltage an X1.1)
DC (19.2...28.8) – 2V
max. allowed output current: DC 0.1 A
Thermal overload protection via charging current limiter
behind X1.1
max. short circuit current 2.4 A
The connections supported the ZKS inputs.
Connection
+24Vpro and OV
Output
+24Vpro
Loadability of the connection
+24Vpro
Application
+24Vpro
