DURADRIVE Drive Controllers DURADRIVE HDC01.1 Drive Controller 4-69
DOK-DURADR-HDC01.1****-PR02-EN-P
HDC01.1-***N-PB01-01-FW – Profibus-DP Interface

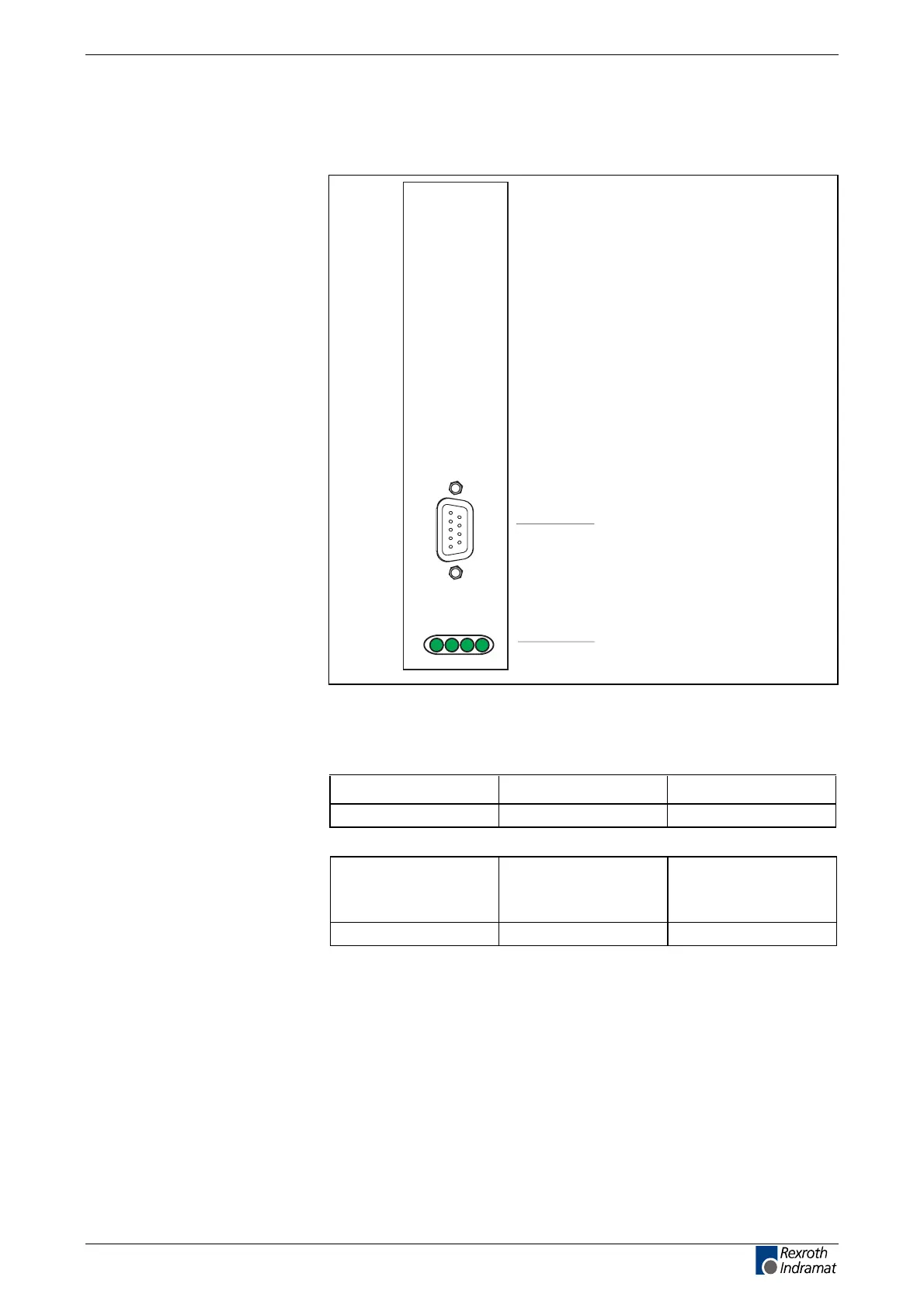

View of command communication interface
FA5028F1.FH7
H33 H30 H31 H32
X30
6
1
5
9
Profibus interface
(female, 9 pins)
Diagnostic indicators
Fig. 4-125: View of command communication interface
Technical description of connector
Type No. of pins Design
D-SUB 9 Bushing on the unit
Fig. 4-126: Design
Cross sections
single wire
[mm²]
Cross sections
multi core wire
[mm²]
Cross sections
in AWG
gauge no.:
-- 0.08-0.5 --
Fig. 4-127: Connection cross sections
Design
Connection cross sections
