5-4 DC24V NTM power supplies DURADRIVE Drive Controllers
DOK-DURADR-HDC01.1****-PR02-EN-P
AP0227F1.FH7
NTM
Input DC 24 V
V+
V-
S+
S-
Load
Strand sensor line
Power supply

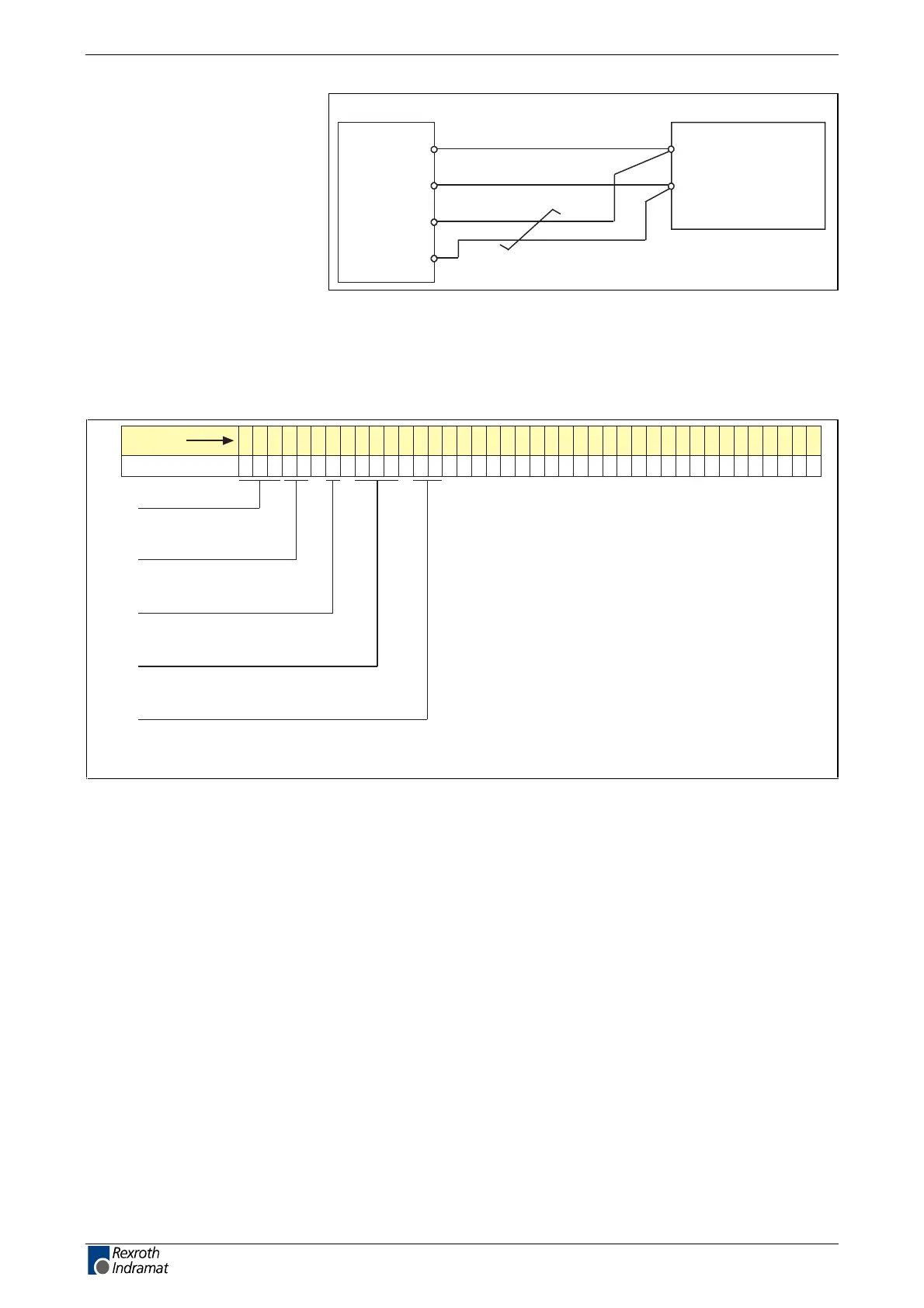

Fig. 5-6: Connecting the sensor cables NTM01.1-024-004 and
NTM01.1-024-006
5.6 Type code
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
NTM01 . 1 -024- 02
1. Product group
1.1 NTM . . . . . . . = NTM
2. Line
2.1 1 . . . . . . . . . . . . . . . . = 01
3. Design
3.1 1 . . . . . . . . . . . . . . . . . . . . . . = 1
4. Nominal output voltage
4.1 DC 24 . . . . . . . . . . . . . . . . . . . . . . = 024
5. Nominal output current
5.1 2,1 A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 02
5.2 4,2 A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 04
5.3 6,3 A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 06
Fig. 5-7: Type code
