4-16 DURADRIVE HDC01.1 Drive Controller DURADRIVE Drive Controllers
DOK-DURADR-HDC01.1****-PR02-EN-P
Allowed DC bus peak power
Relationship peak to DC bus
continuous power
0
0,2
0,4
0,6
0,8
1
1,2
1,4
1,6
00,511,522,5
t in s
P
ZWS
/P
ZWD

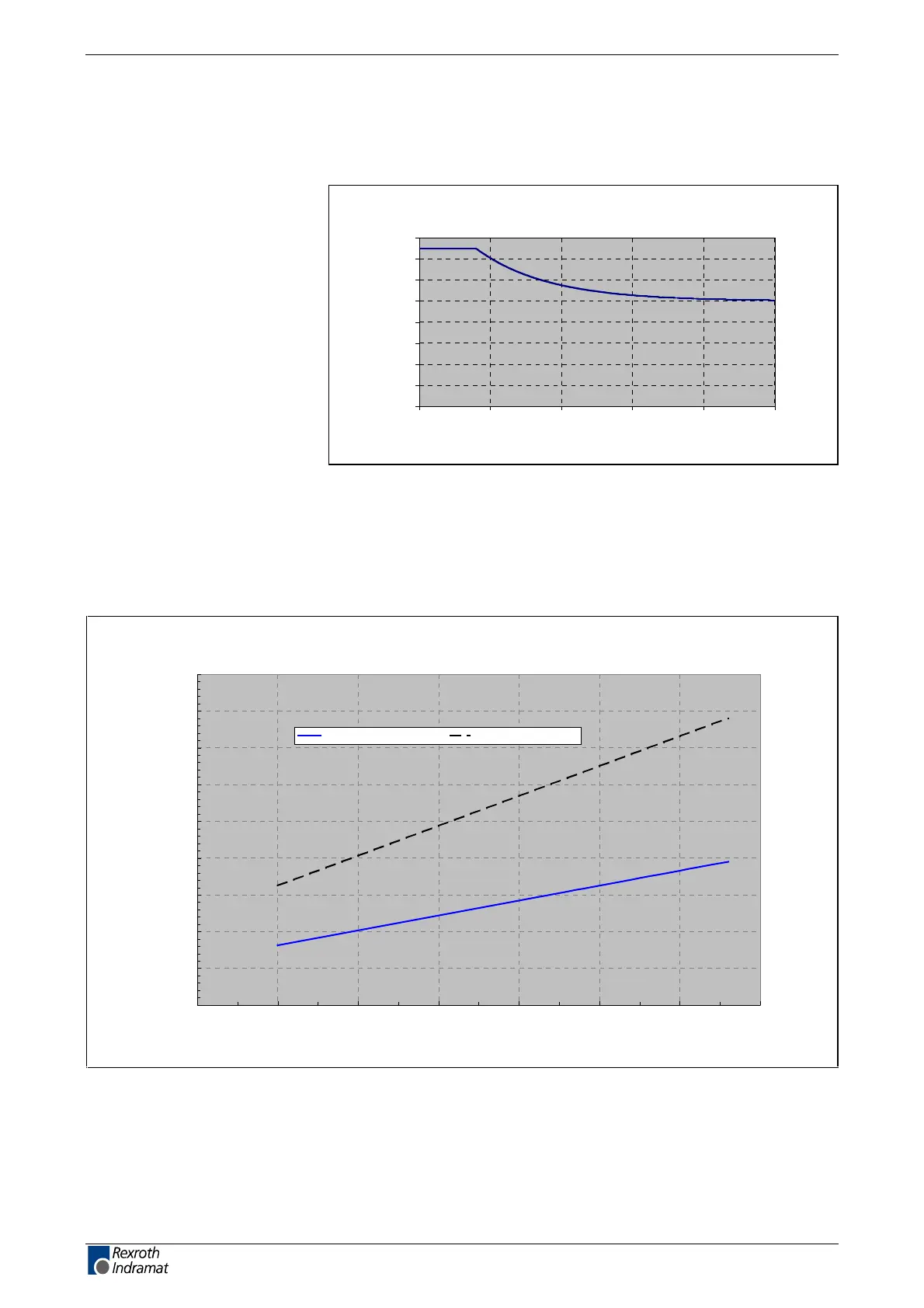

Fig. 4-20: Allowed peak power in DC bus of HDC01.1-A040N
HDC01.1-A040N are not suited for drive applications if the required
intermittent operating power of the unit’s nominal power exceeds 50%!
Allowed DC bus continuous power
0,0
0,2
0,4
0,6
0,8
1,0
1,2
1,4
1,6
1,8
150 200 250 300 350 400 450 500
mains input voltage UN1 3*AC in V
P
ZWD
[kW]
HDC040 not ventilated HDC040 ventilated
Fig. 4-21: Allowed DC bus continuous power of HDC01.1-A040N
HDC01.1
