Rexroth Indramat DURADRIVE SYSTEM200 - Electrical Connections - Dependent on the Drive Controller Type; HDC01.1-***N-SE01-01-FW - SERCOS Interface

DURADRIVE Drive Controllers DURADRIVE HDC01.1 Drive Controller 4-65
DOK-DURADR-HDC01.1****-PR02-EN-P
4.3 Electrical connections – dependent on the drive
controller type
HDC01.1-***N-SE01-01-FW – SERCOS interface

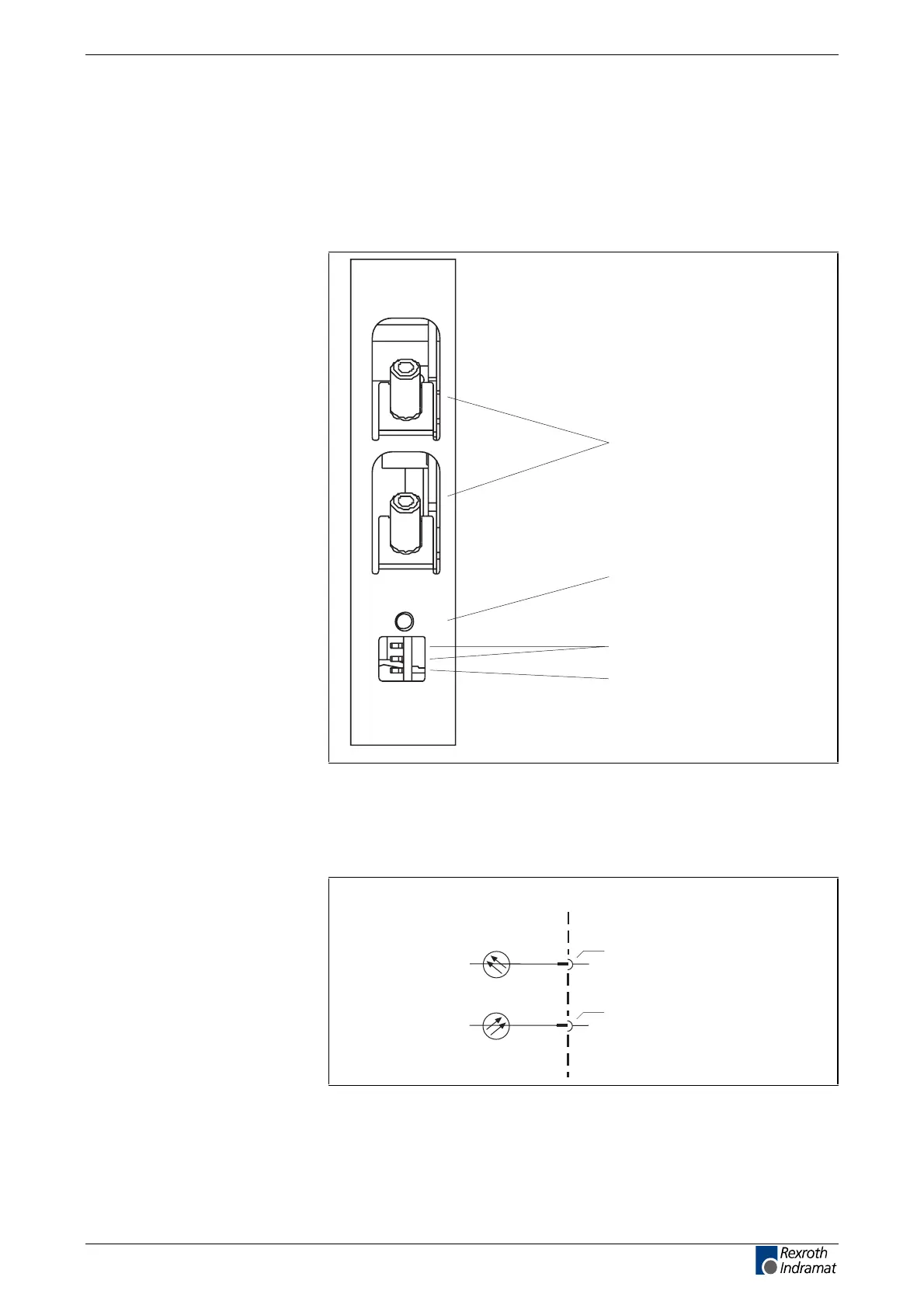

View of command communication interface
FA5031F1.FH7
H20
ERROR
3
2
1
S20
X20 TX
X21 RX
switch to set transmitting
power
distortion LED of
SERCOS interface
fiber optic
connection for SERCOS ring
switch to set data rate
Fig. 4-119: View of command communication interface
Connection diagram for SERCOS interface
AP5049F1.FH7
optical transmitter
X20
fiber optic
cable
optical receiver
X21
SERCOS interface
fiber optic
cable
device-external device-internal
Fig. 4-120: I/O connection allocations
Connection
SERCOS interface
