DURADRIVE Drive Controllers DURADRIVE HDC01.1 Drive Controller 4-61
DOK-DURADR-HDC01.1****-PR02-EN-P
X13, Mains connection
Technical description of connector
H
E
F
L
A
G
B
C
D
AP5354F1.FH7

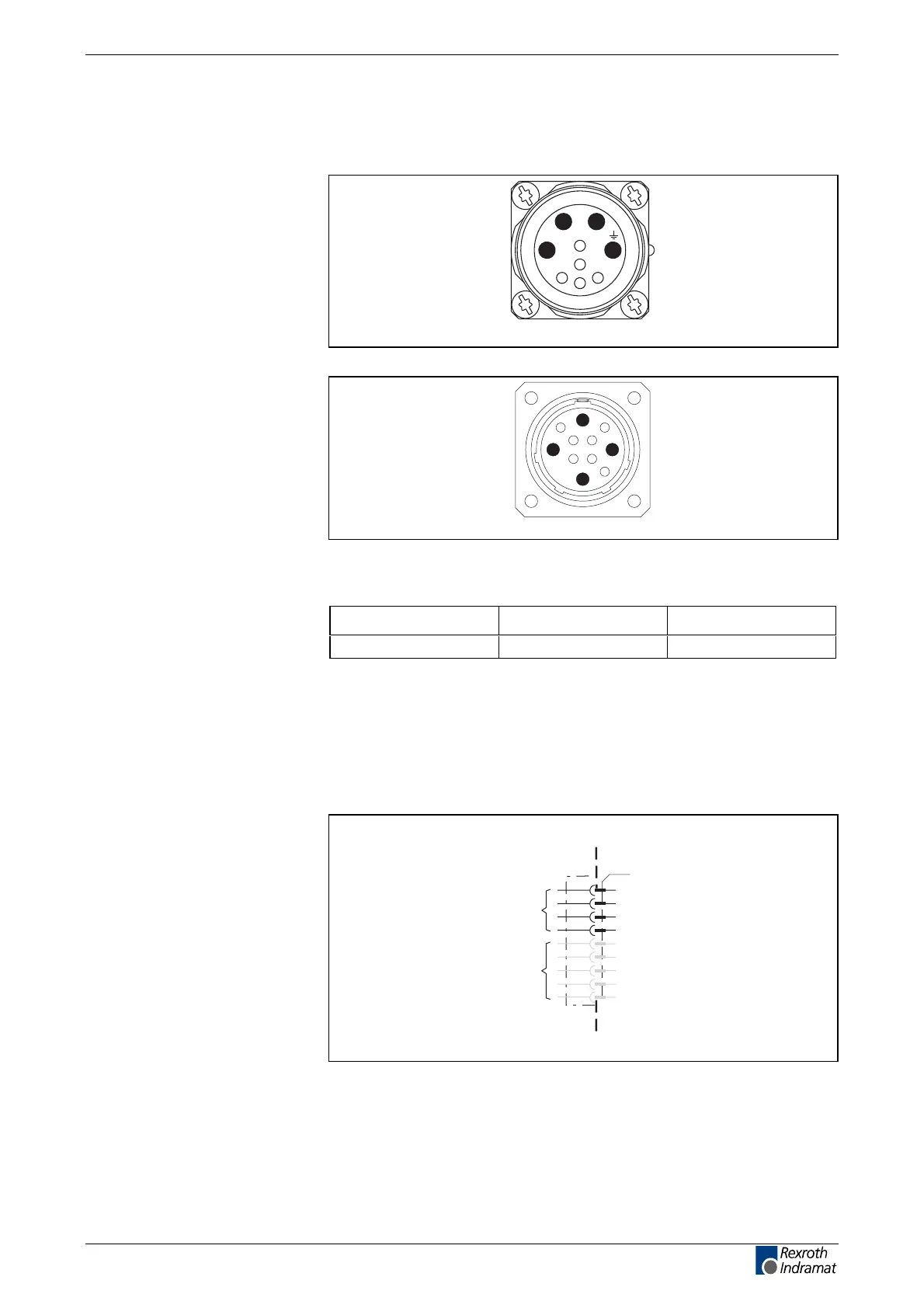

Fig. 4-107: Connector X13 (HDC01.1-A040N)
AP5379F1.FH7
G
C
B
A
L
F
H
E
D
JK
Fig. 4-108: Connector X13 (HDC01.1-A100/200N)
Type No. of pins Design
Circular connector 4 Pins on unit
Fig. 4-109: Design
Mains connection
The mains connector serves as the connection of the drive controller with
the power supply.
device-external device-internal
AP5367F1.FH7
X13
mains connection
L1
L2
L3
C
B
A
PE
D
E
F
G
H
I
not fitted
Fig. 4-110: Mains connection
See also page 7-1: "Mains Connections"
X14, Ventilator connection
Illustration
Design
Connection
Mains
