Ricoh Aficio MP 301SPF Service Manual

Other Replacements
D127/D128 4-40 SM

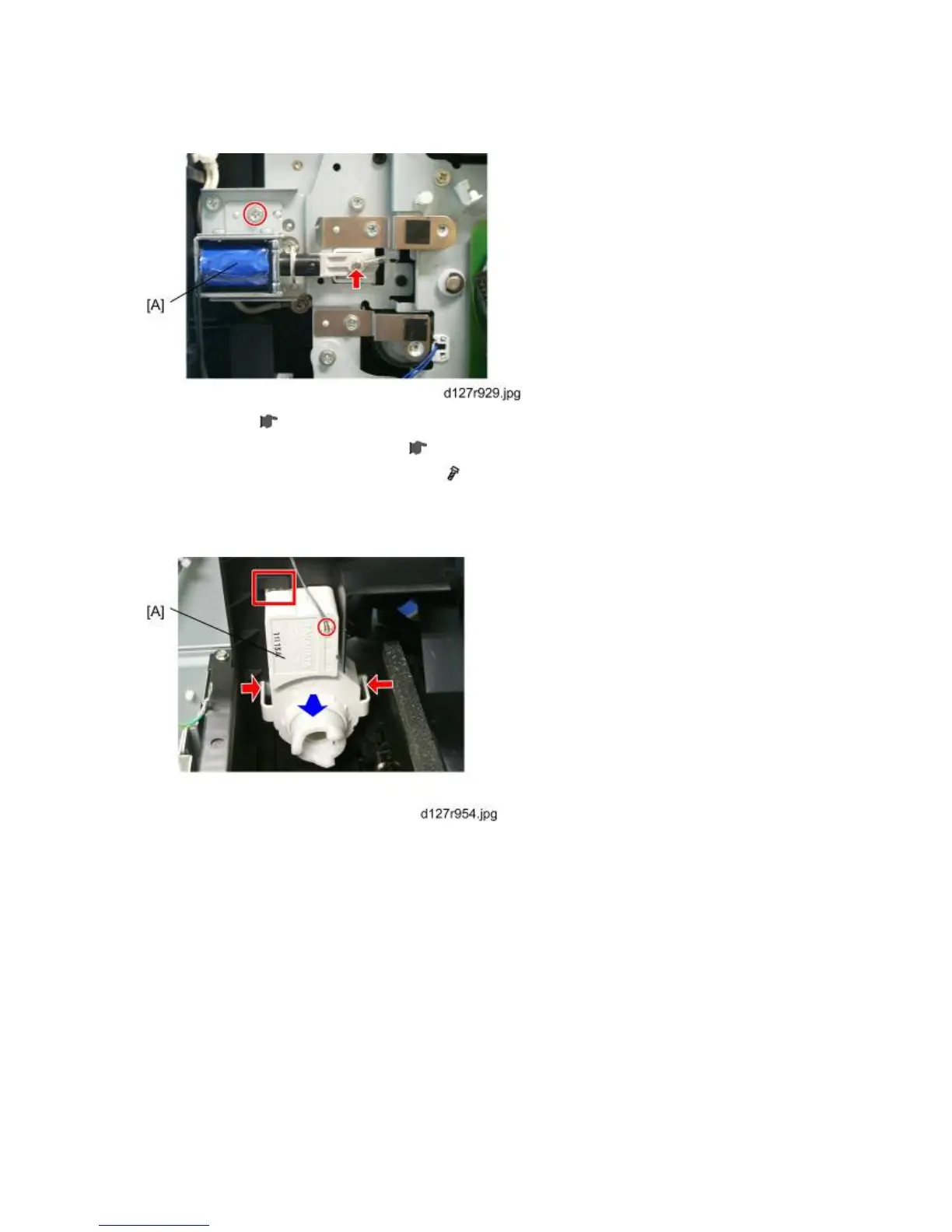

4.11.4 CONTACT-RELEASE SOLENOID
1. Rear cover ( p.4-3 "Rear Cover")
2. High-voltage power supply board (
p.4-38 "High-Voltage Power Supply Board ")
3. Contact-release solenoid [A] (1 spring,
x 1)
4.11.5 TONER SUPPLY MOTOR
1. Toner bottle holder
2. Hold both sides of the Toner Supply Clutch [A] as the red arrows show. Then pull to your side
with trying to release the upper hook the red square shows.
3. Remove the harness the red circle shows.

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
