Ricoh Aficio MP 301SPF Service Manual

Controller Options
D127/D128 2-34 SM
 This SD card must be inserted into Slot 2, the lower slot.
2.6.5 GIGABIT ETHERNET
 Unplug the main machine power cord before you do the following procedure.

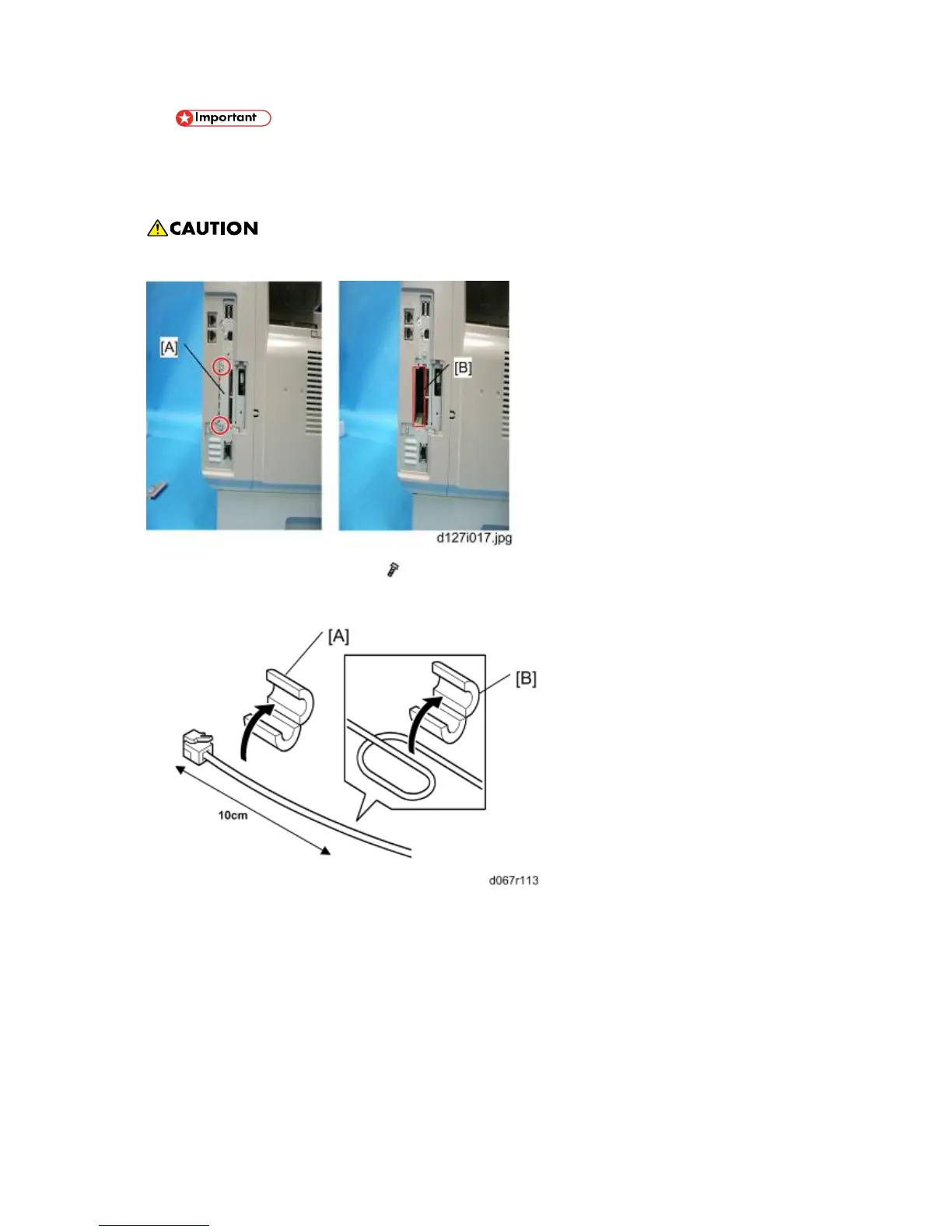

1. Remove the I/F-slot cover [A] (
x 2).
2. Install the Gigabit Ethernet board (Knob-screw x 2) into the I/F-slot [B].
3. Attach one ferrite core [A] to the end of the Ethernet interface cable, and then attach the other
ferrite core [B] about 10cm from the end of the Ethernet interface cable.
4. Connect the Ethernet interface cable to the Gigabit Ethernet port.
Make sure that the machine can recognize this option (see 'Check All Connections' at the end of
this section).

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
