Ricoh Aficio MP 301SPF Service Manual

Controller Options
SM 2-41 D127/D128
Installation
Activating the Security Applications
1. Make sure that the following settings are not at their factory default values:
 Supervisor login password
 Administrator login name
 Administrator login password
If any of these settings is at a factory default value, tell the customer these settings must be
changed before you do the installation procedure.
2. Make sure that "Admin. Authentication" is ON.
[System Settings] – [Administrator Tools] – [Administrator Authentication Management] -
[Admin. Authentication]
If this setting is OFF, tell the customer this setting must be ON before you do the installation
procedure.
3. Make sure that "Administrator Tools" is enabled (selected).
[System Settings] – [Administrator Tools] – [Administrator Authentication Management] -
[Available Settings]
If this setting is disabled (not selected), tell the customer this setting must be enabled
(selected) before you do the installation procedure.
4. Refer to the Security Reference for details about activating the security applications (HDD
Encryption Unit and DataOverwriteSecurity).
HDD Encryption Recovery from a Device Problem

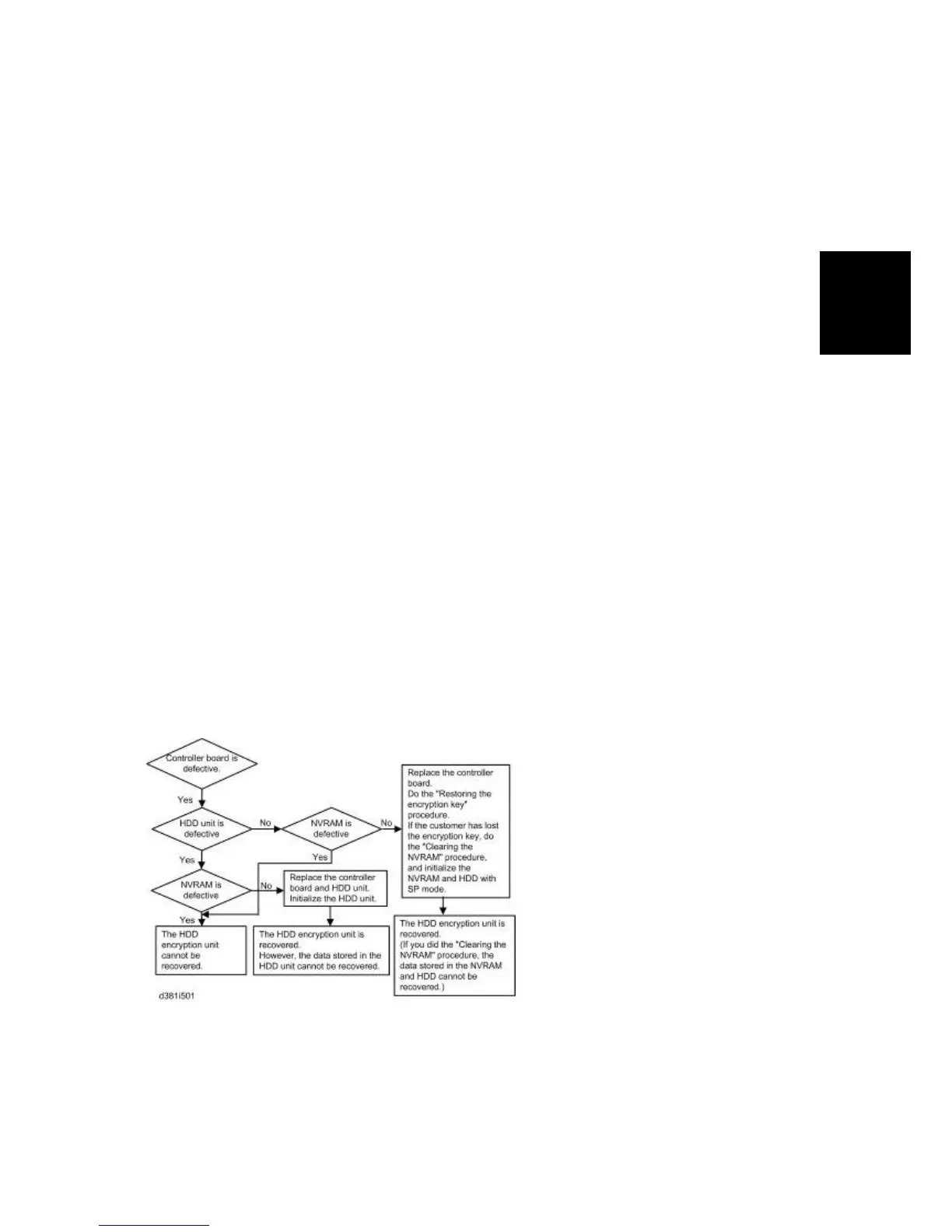

The flowchart below shows the recovery possibility of the HDD encryption if one of devices related
with the HDD encryption is defective.

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
