Ricoh Aficio MP 301SPF Service Manual

How to Clear the PM Counter
D127/D128 3-2 SM
3.2 HOW TO CLEAR THE PM COUNTER
Reset the PM counter after your maintenance work.

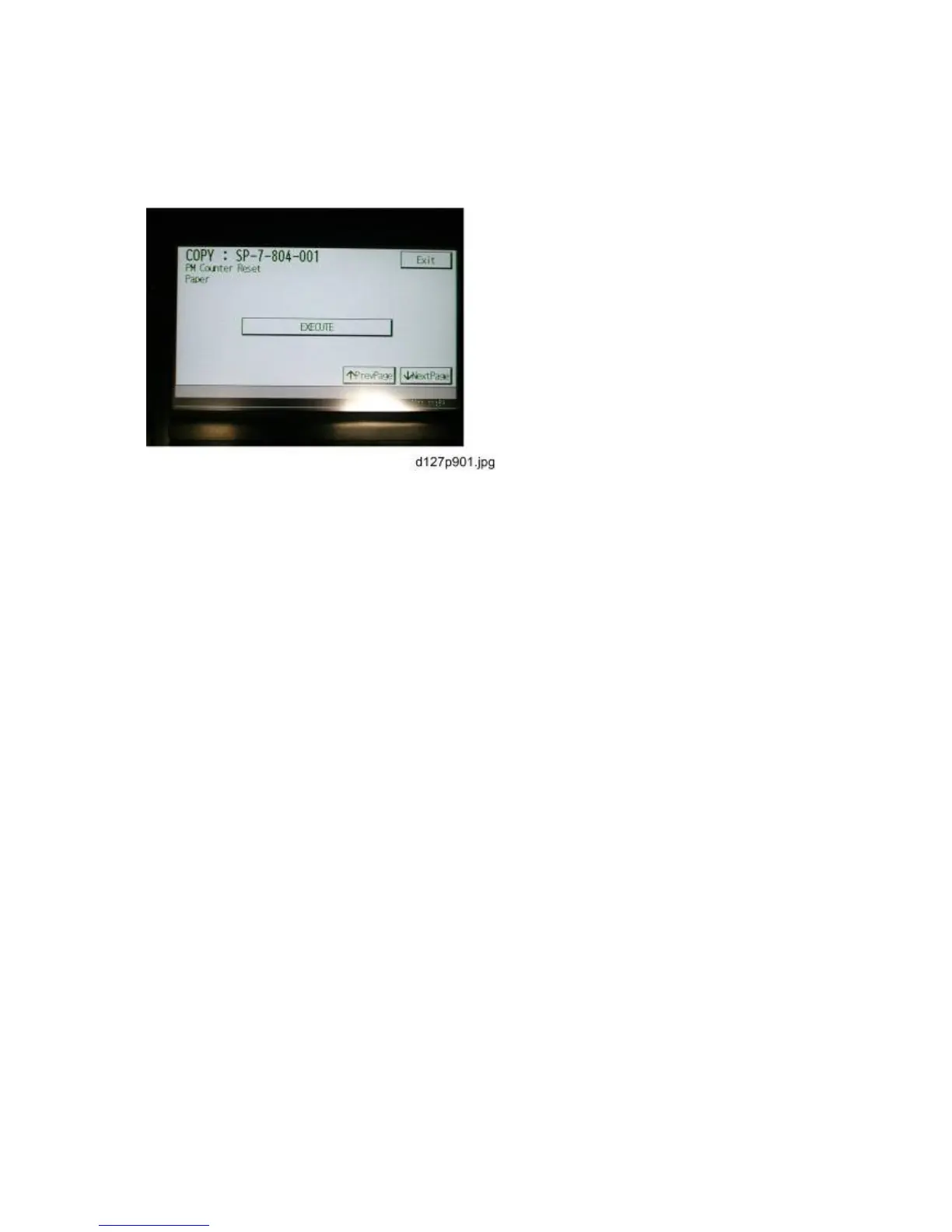

1. Activate the SP mode.
2. Select SP7-804-001.
3. Press the EXECUTE. The message "Completed" is displayed when the program ends
normally. An error message is displayed if the program ends abnormally.
4. Press the Exit to end the program.

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
