Paper Tray Unit Heater
SM 2-21 D127/D128
Installation
26. Attach the grounding wire (Long) [21] ( x 1, Washer x1, Spring washer x1)
27. Attach two of the clamps (Mid) [22] [23].
28. Attach the clamp (Mid) [24].
29. Connect the heater harness (Long) to the heater harness (Short).
30. Attach the heater harness through the clamps as shown.
Be sure to make the bind attached on the heater harness upper than the clamp (Mid) [22]
[24].
31. Remove the drawer from the paper tray unit.

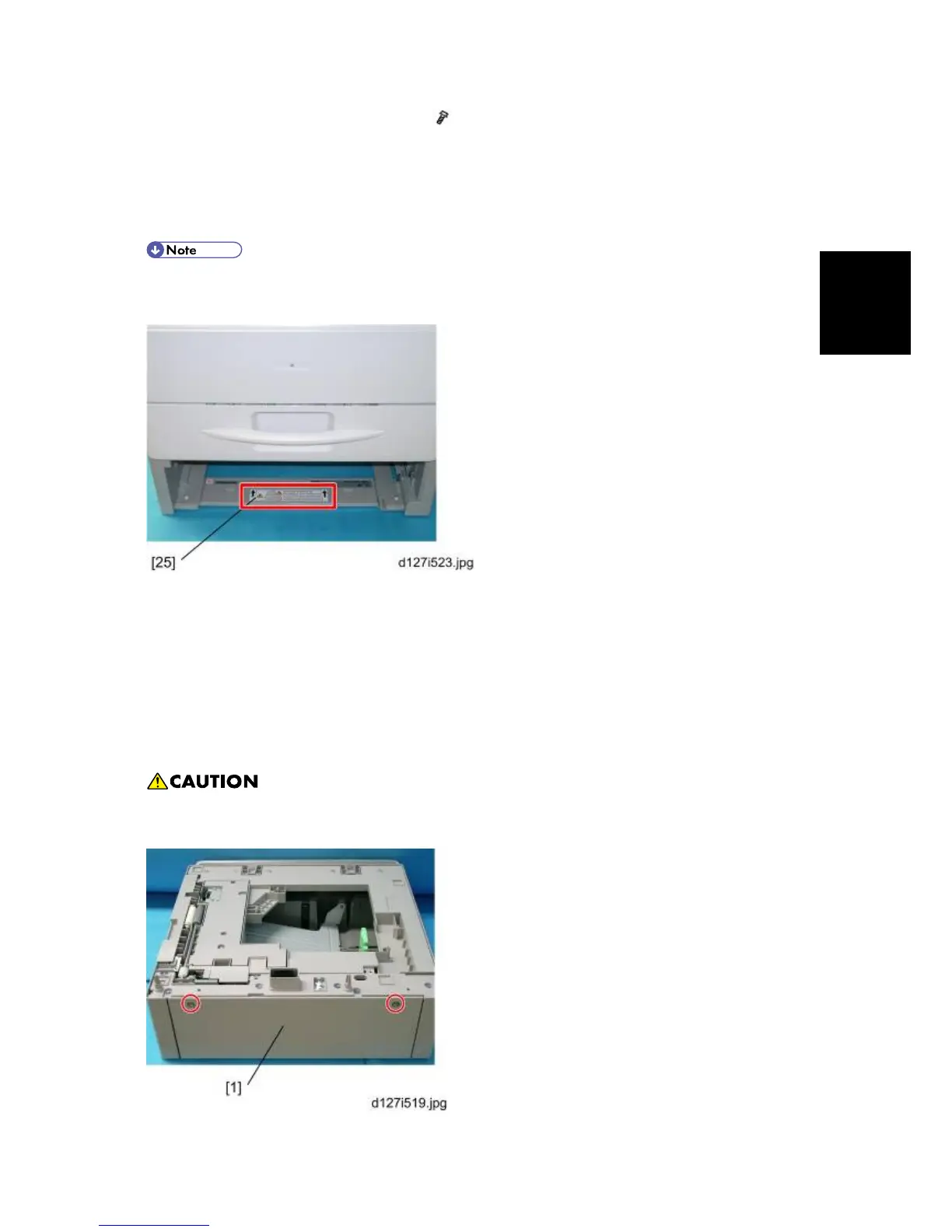

32. Attach the caution decal [25] in the bottom of the paper tray unit.
33. Reassemble the copier.
34. Plug in the power cord, and check the operation.
2.5.3 INSTALLATION PROCEDURE (FOR TWO OF PTU INSTALLED
MACHINE)
Unplug the main machine's power cord before starting the following procedure.
1. Remove the upper and the lower paper tray unit from the copier if it is already installed.
