Ricoh Aficio MP 301SPF Service Manual

Controller Options
SM 2-29 D127/D128
Installation
2.6 CONTROLLER OPTIONS
2.6.1 OVERVIEW

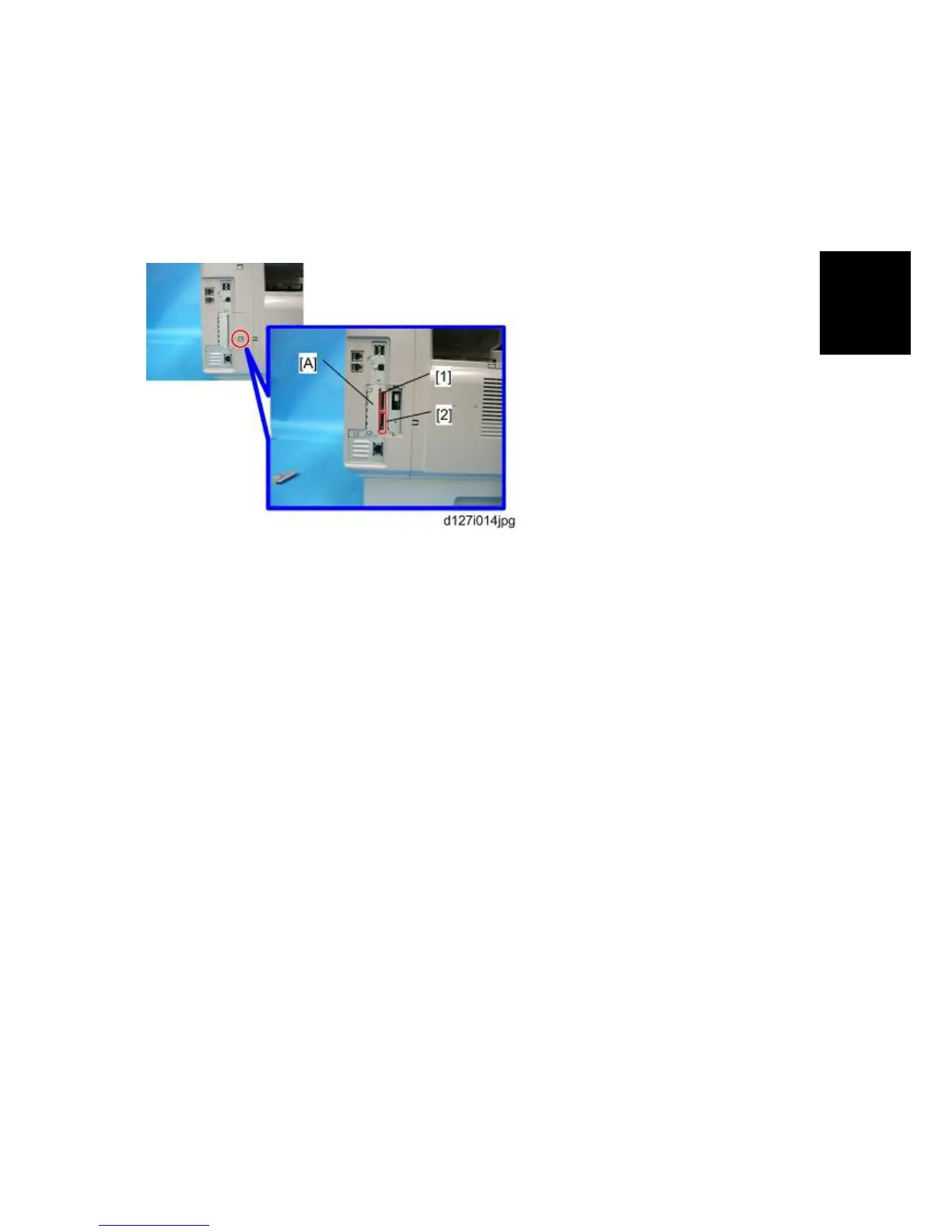

This machine has I/F card slots and SD card slots for optional I/F connections and applications.
I/F Card Slot
 Slot [A] is used for one of the optional I/F connections: (IEEE1284, IEEE802.11a/g (Wireless
LAN) or Gigabit Ethernet).
SD Card Slot
 Slot [1] is used for options provided on SD cards. The application SD card (Printer/Scanner or
Security Card) should be installed in Slot 1. If more than one application is to be used, move
the applications to the same SD card with SP5873.
 Slot [2] is used for options provided on SD cards and servicing. The VM card must be
installed in Slot 2.

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
