Ricoh Aficio MP 301SPF Service Manual

PCU and Quenching Lamp
D127/D128 4-16 SM
4.6 PCU AND QUENCHING LAMP
When handling the photo conductor unit (PCU), use caution:
 Do not touch the OPC drum with your bare hands. When the OPC drum is unclean, clean it
with dry cloth, or clean it with wet cotton and wipe it with dry cloth.
 Do not use alcohol or any other chemicals to clean the OPC drum. These substances
damage the OPC-drum surface.
 Keep PCUs in a cool, dry place.
 Do not expose the OPC to any corrosive gas such as ammonia.
 Do not shake a used PCU. Remaining toner and developer may spill out.
 Dispose of used PCUs in accordance with local regulations.
4.6.1 PCU

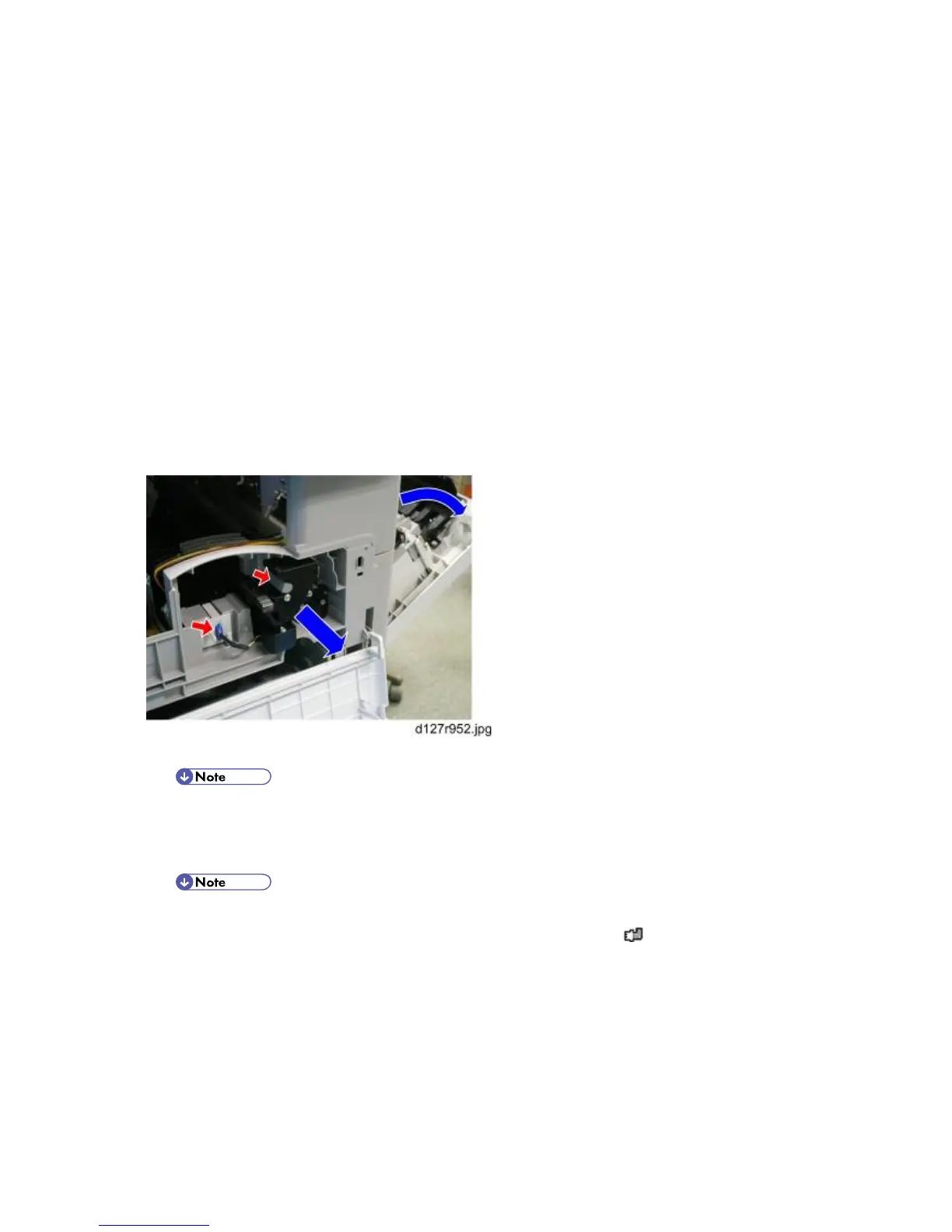

1. Open the right door.
 The PCU may become stuck if you try to remove it while the front door is closed.
2. Open the front door.
3. Remove the toner bottle holder.
 Clean all spilled toner off the toner bottle area and the inside of the front door.
4. Pull out the PCU [A] on pushing the part as the red arrow shows. (
x 1).

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
