Ricoh Aficio MP 301SPF Service Manual

Other Replacements
SM 4-41 D127/D128
Replacement
and
Adjustment
4.11.6 FCU
Lithium Batteries
 Incorrect replacement of lithium battery(s) on the controller or on the fax unit poses risk of
explosion. Replace only with the same type or with an equivalent type recommended by
the manufacturer. Discard used batteries in accordance with the manufacturer's
instructions.
Procedure

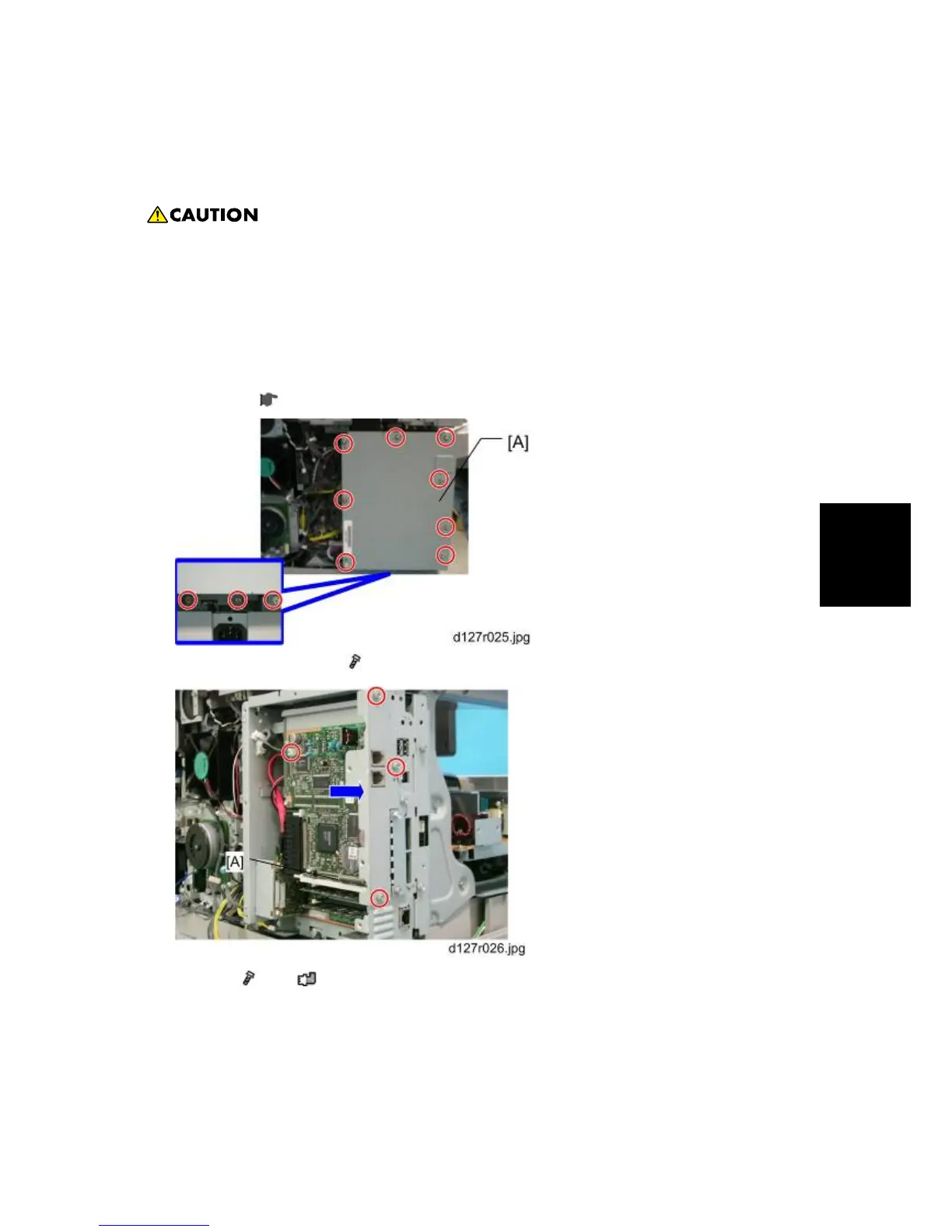

1. Rear cover ( p.4-3 "Rear Cover")
2. Controller box cover [A] (
x 11)
3. FCU [A] (
x 3, x 1)
4. When you replace the FCU board, remove the MBU board from the old FCU board and install
it on the new FCU board.
5. Set the correct date and time with the User Tools: User Tools> System Settings> Timer
Setting> Set Date/Time

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
