Fusing
SM 4-11 D127/D128
Replacement
and
Adjustment

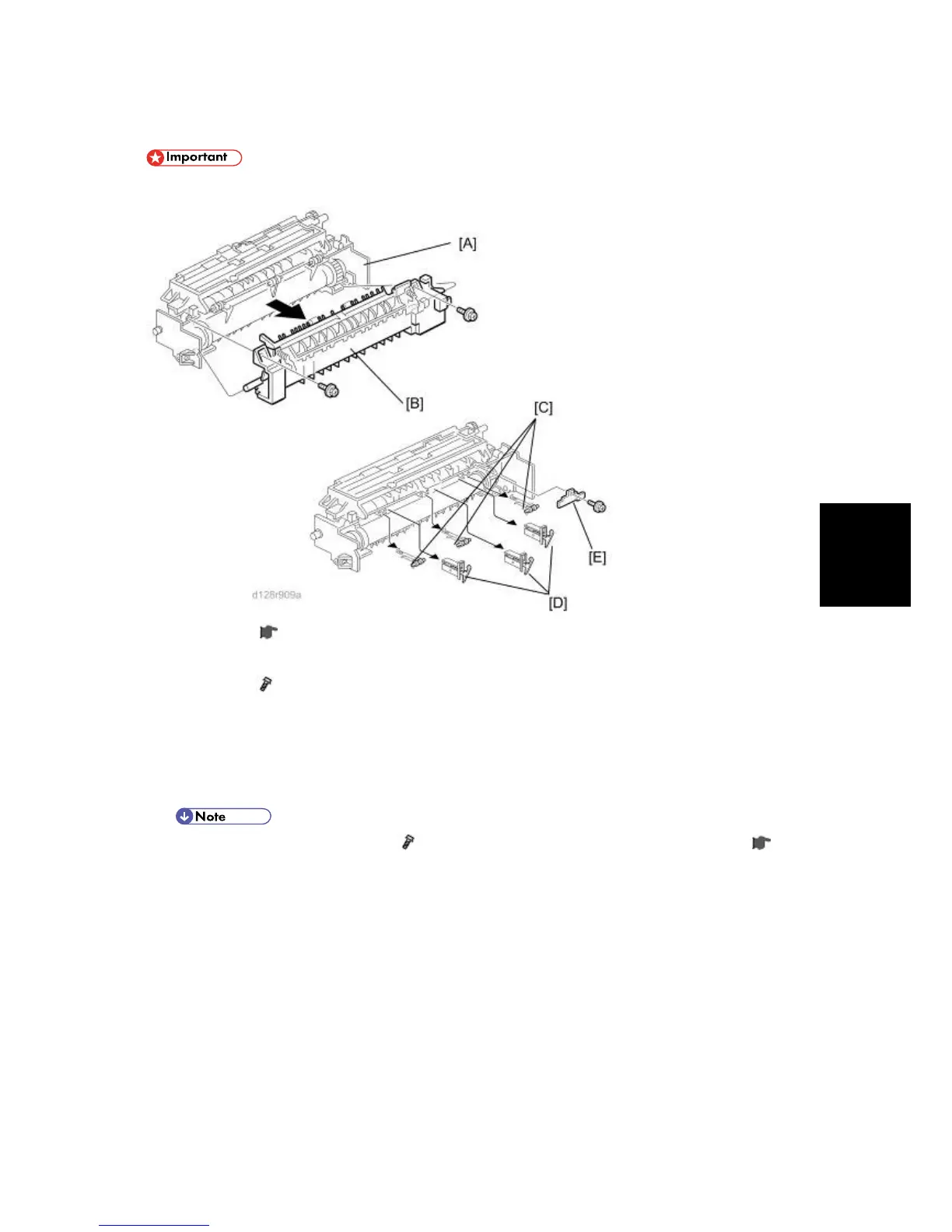

4.5.3 HOT ROLLER STRIPPER PAWLS
Take care not to damage the hot roller stripper pawls and the tension springs.
1. Fusing unit (
p.4-10 "Fusing Unit")
2. Separate the fusing unit into two sections: the hot roller section [A] and the pressure roller
section [B] (
x 2).
After removing the screws, lower the pressure roller section about halfway and then slide it
toward the front side to detach it.
3. Support rollers [C]
4. Hot roller stripper pawls [D]
Remove the spacer [E] (
x 1) if you are removing the hot roller assembly (
p.4-12 "Hot Roller and Fusing Lamp").
