Ricoh Aficio MP 301SPF Service Manual

Scanner Unit
D127/D128 4-8 SM

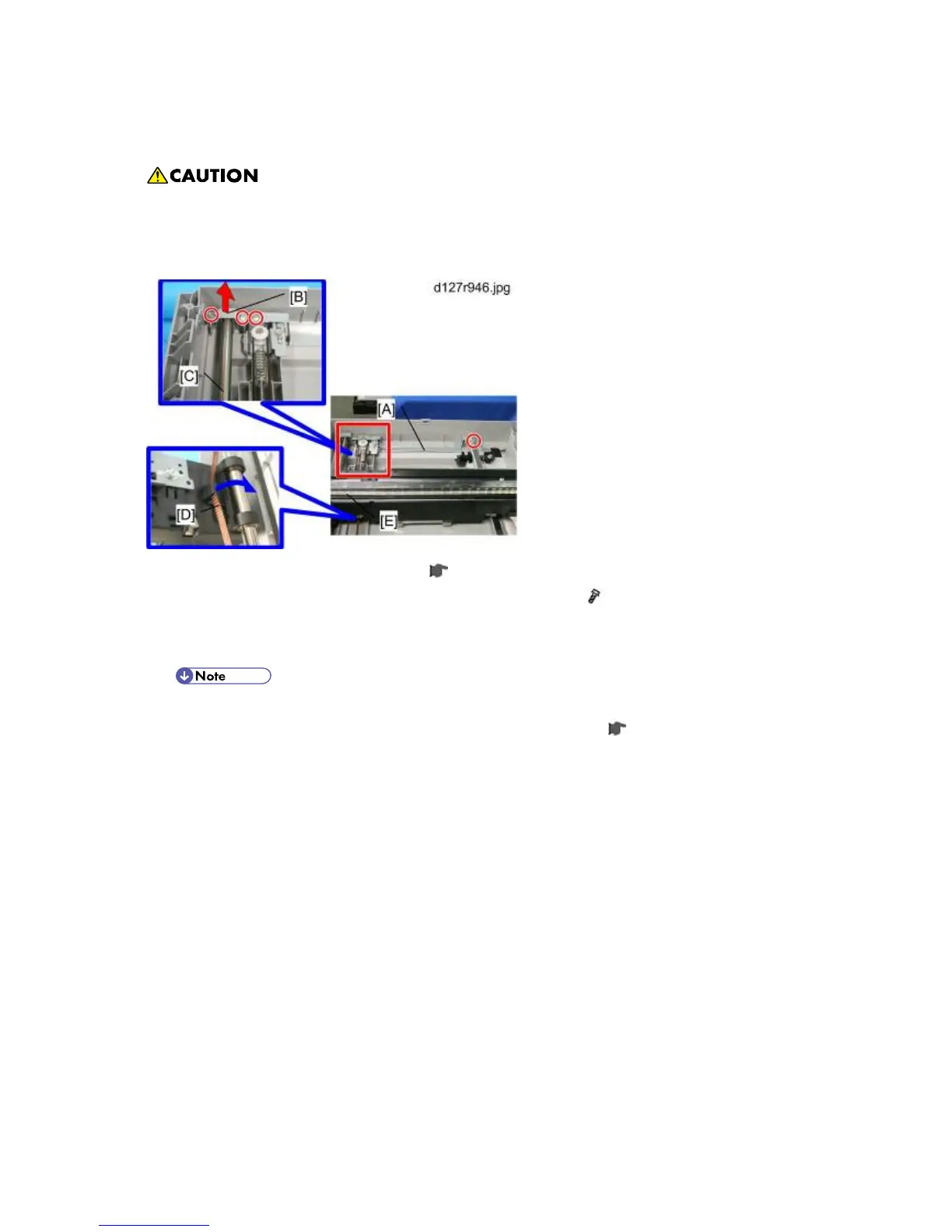

4.4.2 LED UNIT
 Do not disassemble the LED Unit. The LED Unit is precision adjusted before shipment.
 Do not touch the screws on the CCD. The CCD is precision adjusted before shipment.
 Do not wipe the oil coated on the guide rod off. The oil doesn't exist in service parts.
1. Scanner Cover and Exposure Glass (
p.4-7 " Scanner Cover and Exposure Glass")
2. Remove the long bracket [A] and the guide rod bracket [B]. (
x 4)
3. Lift the guide rod [C] as the red arrow shows.
4. Put the belt [D] off as blue arrow shows to release the LED Unit [E] from the guide rod.
 Do not loosen the paint-locked screws holding the lens in place.
 After installing a new lens, carry out copy adjustments (
p.4-57 "Adjusting Copy
Image Area").

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
