Ricoh Aficio MP 301SPF Service Manual

Adjusting Copy Image Area
D127/D128 4-60 SM
Adjusting Main-Scan Magnification
Use the Grid Pattern (Grid Vertical Line) (SP2-109-001 > 5) for this adjustment.
SP Specification
SP2-102-001 (Main scan Mag.)
0 ± 0.5%
1. Print out the test pattern.
2. Measure the sides of squares. Each side should be 2.7-mm long.)
3. Adjust the main-scan magnification (SP2-102-001: Main Scan Mag.).
4. Select "Cancel" in SP2-109-001 after finishing the adjustment procedure.
4.14.2 SCANNING
Preparation:
 Before adjusting scanning, adjust printing ( p.4-57 "Printing").
 To adjust scanning, use the A4 test chart.
Adjusting Registration
1. Place the test chart on the exposure glass. Make sure that the test chart is aligned with the
rear and left scales on the exposure glass.
2. Make a copy.

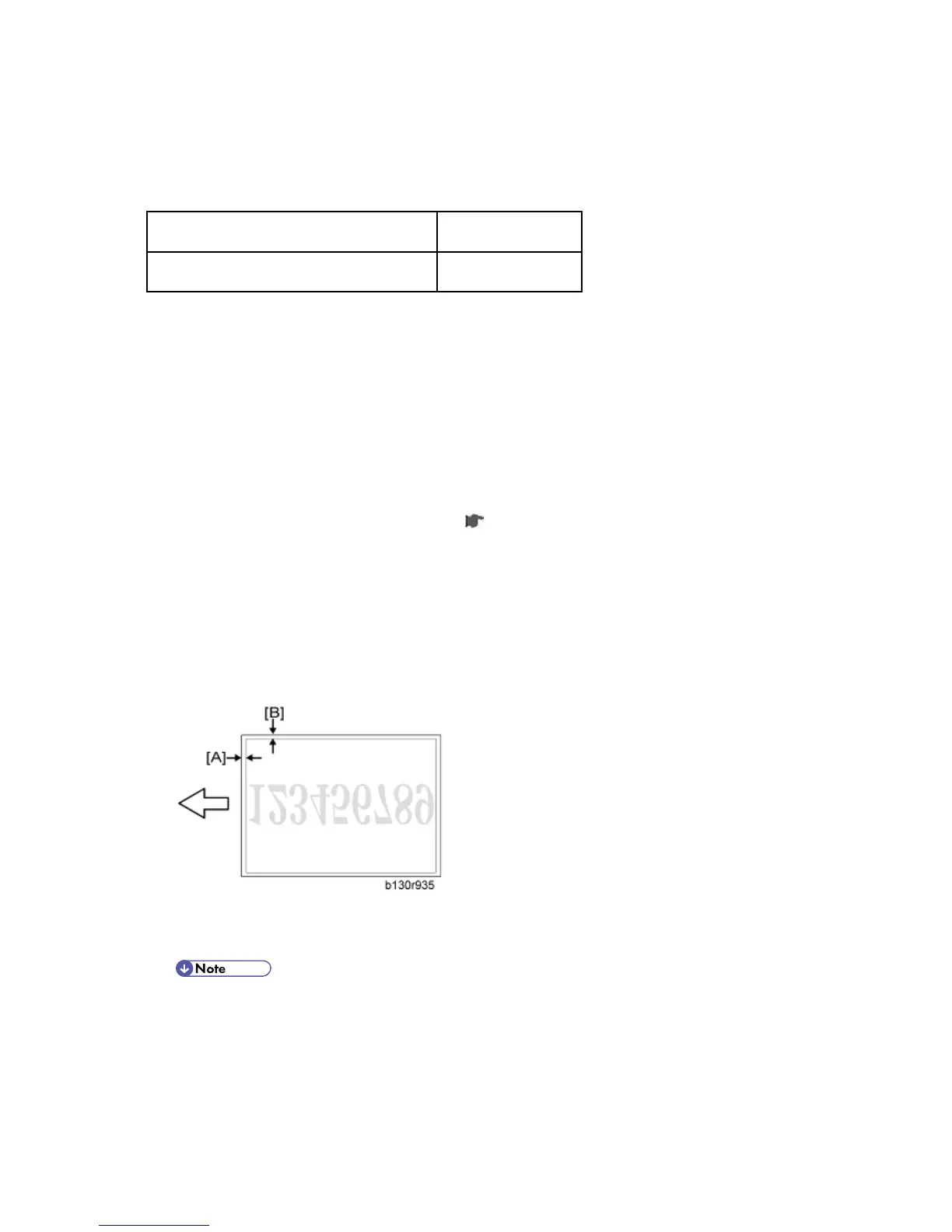

3. Measure the distance between the leading edge of the image area and the leading edge of
the paper [A].
 The diagram shows the paper on the copy tray. Note that the paper is output with the
face down.
4. Adjust the leading-edge scan registration. (SP4-010-001).

Ricoh Aficio MP 301SPF Specifications

Power

power requirements	120V, 60Hz, 8A
power consumption	Less than 1.1 kW
sleep mode power consumption	2.8 W

System Memory

system memory	1 GB RAM
hard disk drive	Optional 128 GB HDD
CPU	RM7035C – 533 MHz

Printer Specifications

output speed	Up to 31 ppm (Letter)
maximum print resolution	600 x 600 dpi
first copy time	6 seconds or less

Paper Handling

standard input capacity	250 sheets + 100-Sheet Bypass Tray
output capacity	250 sheets (internal tray)
document feeder original capacity	50 sheets (ARDF)

Scanner Specifications

scanning speed	31 ipm @ 300 dpi B/W
scanning resolution	100 to 600 dpi
scan area main	8.5 inches

Weight and Dimensions

width	19.0 inches
depth	17.7 inches
height	18.1 inches
weight	57.3 lbs.
