Ricoh C252 - Dipsw101 No.1 to 4 - Paper Registration Position

DIP SWITCHES
SM 5-7 C252
Service
Tables
5.2.2 DIPSW101 NO.1 TO 4 – PAPER REGISTRATION POSITION
ADJUSTMENT
Purpose: To match the printing leading edge on the print paper with that on the
original.
Adjustment standard: ± 1.0 mm

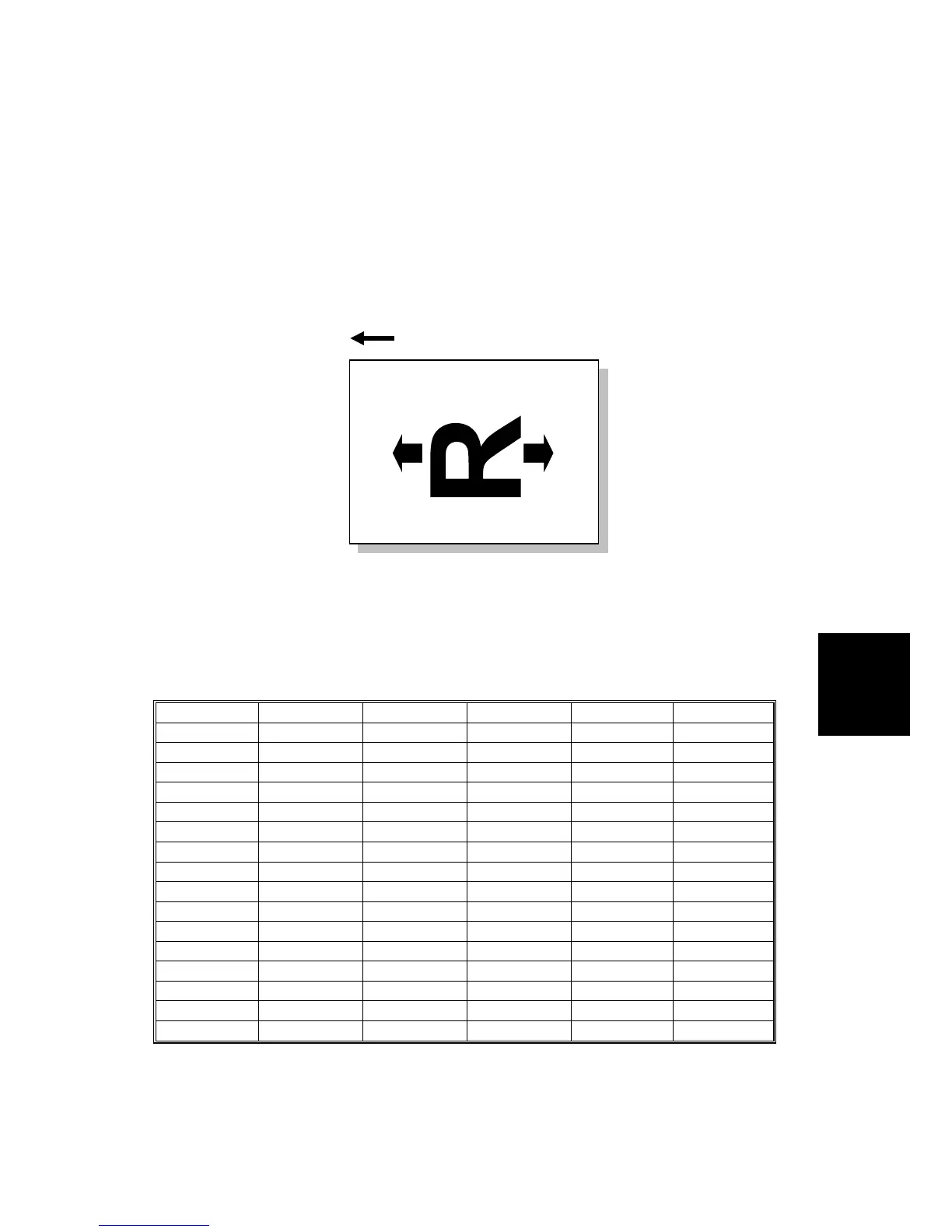

The print position moves as shown below.
NOTE: The image position on a trial print, which is automatically made after
making a master, tends to vary. Do not use the trial print when making
adjustments.
DIPSW101-1 DIPSW101-2 DIPSW101-3 DIPSW101-4 Difference Difference
ON ON ON ON +7 pulse +3.563 mm
OFF ON ON ON +6 pulse +3.054 mm
ON OFF ON ON +5 pulse +2.545 mm
OFF OFF ON ON +4 pulse +2.036 mm
ON ON OFF ON +3 pulse +1.527 mm
OFF ON OFF ON +2 pulse +1.018 mm
ON OFF OFF ON +1 pulse +0.509 mm
OFF OFF OFF ON 0 0
OFF OFF OFF OFF 0 0
ON ON ON OFF -7 pulse -3.563 mm
OFF ON ON OFF -6 pulse -3.054 mm
ON OFF ON OFF -5 pulse -2.545 mm
OFF OFF ON OFF -4 pulse -2.036 mm
ON ON OFF OFF -3 pulse -1.527 mm
OFF ON OFF OFF -2 pulse -1.018 mm
ON OFF OFF OFF -1 pulse -0.509 mm
1 pulse = 0.509 mm
Paper Feed Direction
+
–
C252S903.WMF
