PAPER FEED
SM 3-15 C252
Replacement
and
Adjustment
3.7.2 PAPER FEED PRESSURE ADJUSTMENT
The position of the spring can be changed in order to change the amount of
pressure exerted by the paper tray adjustment plate.
This adjustment can be done:
• When feeding special paper (especially thick paper and thin paper)
• When the customer is experiencing feed problems.
• Front cover (! 3.2.1)
Increase the feed pressure: [A] → [B] → [C] → [D]
Decrease the feed pressure: [E]→ [F] → [G] → [H]
Default position: [A] and [E] positions

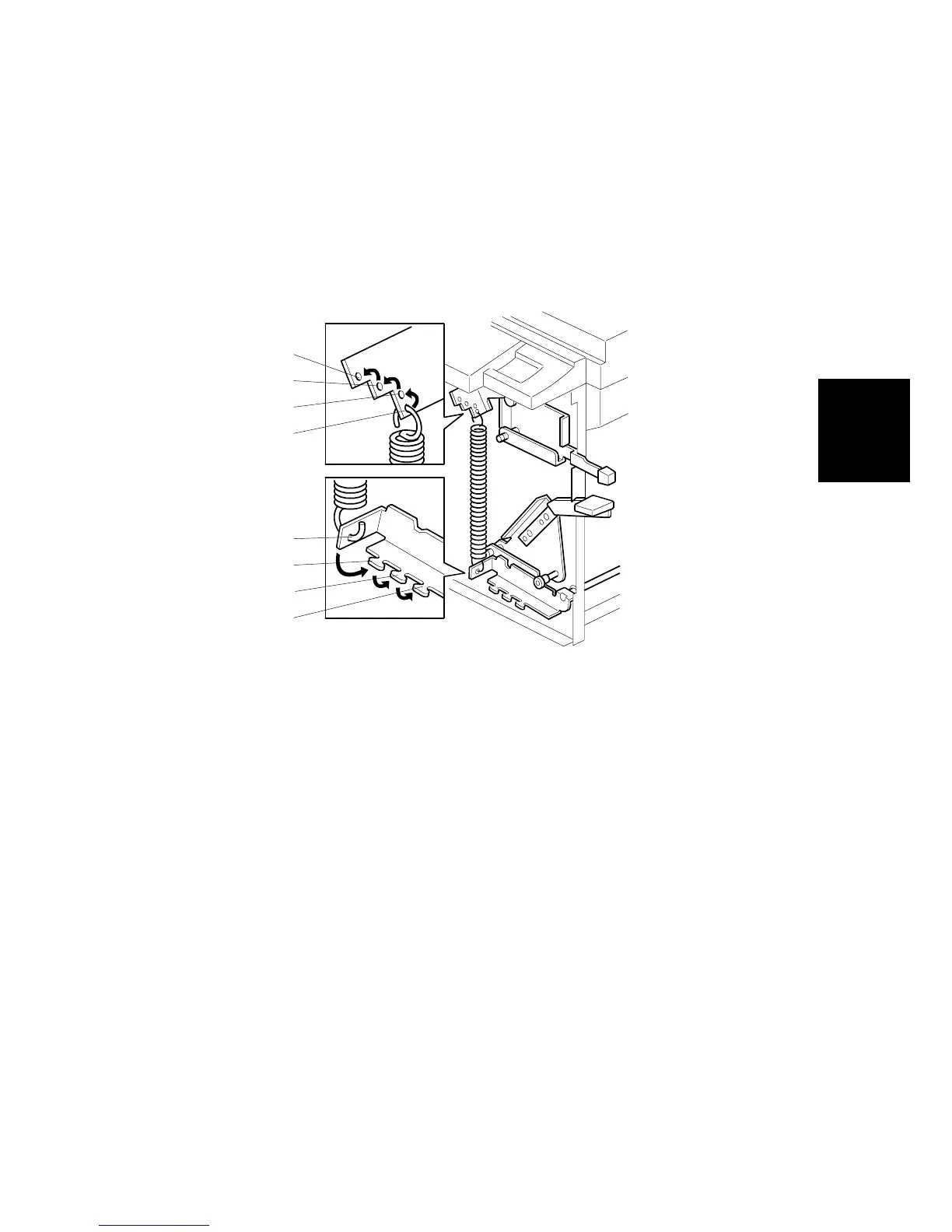

C252R016.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
