Ricoh C252 - Delivery Belt;Paper Exit Sensor

PAPER DELIVERY
SM 3-31 C252
Replacement
and
Adjustment
3.10.2 DELIVERY BELT / PAPER EXIT SENSOR
• Remove paper delivery unit (! 3.10.1)

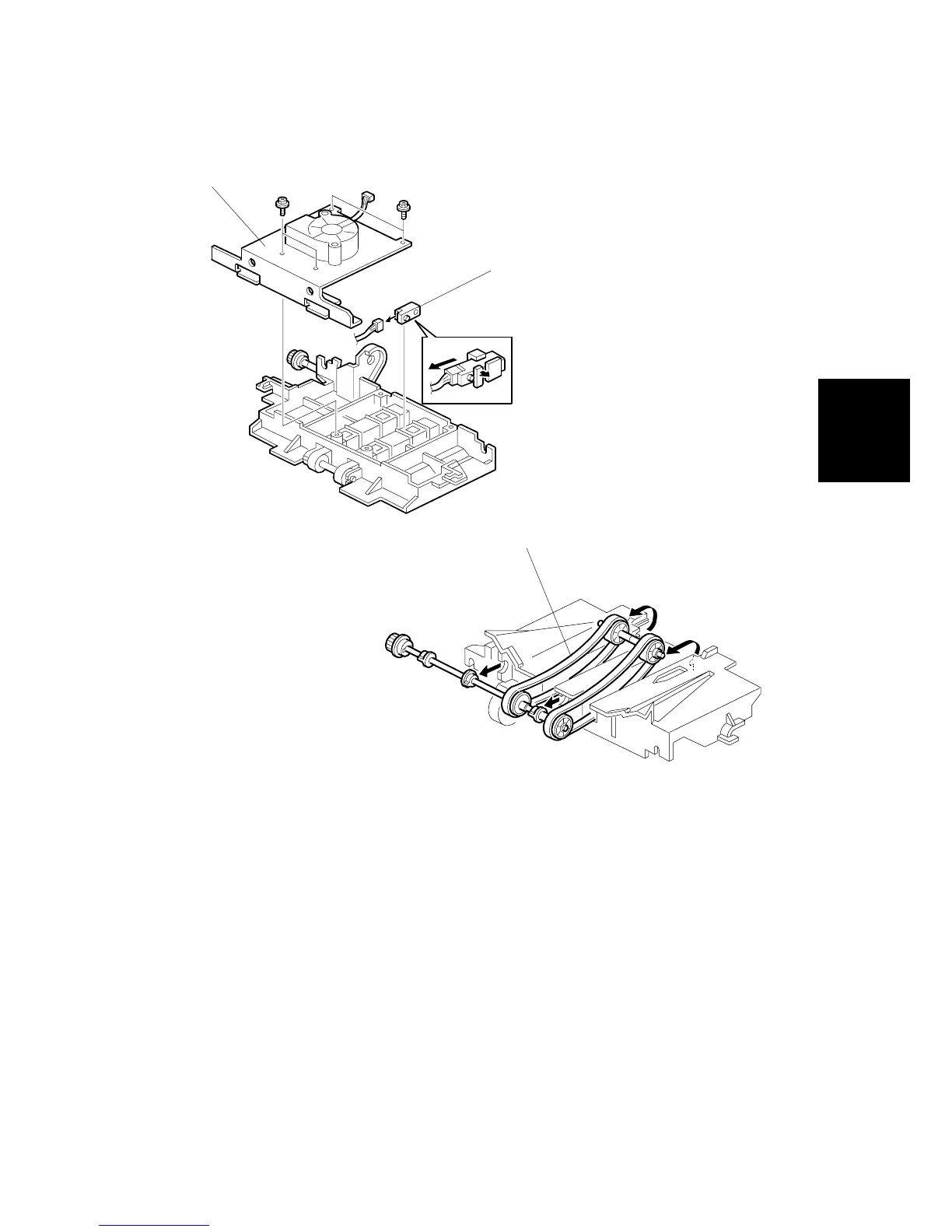

[A]: Vacuum fan motor bracket ( x 4, x1)
[B]: Delivery belts
[C]: Paper exit sensor ( x 1)
C252R029.WMF
C252R030.WMF
[A]
[C]
[B]
