Ricoh C252 - Paper Feed Mechanism

PAPER FEED
C252 6-24 SM

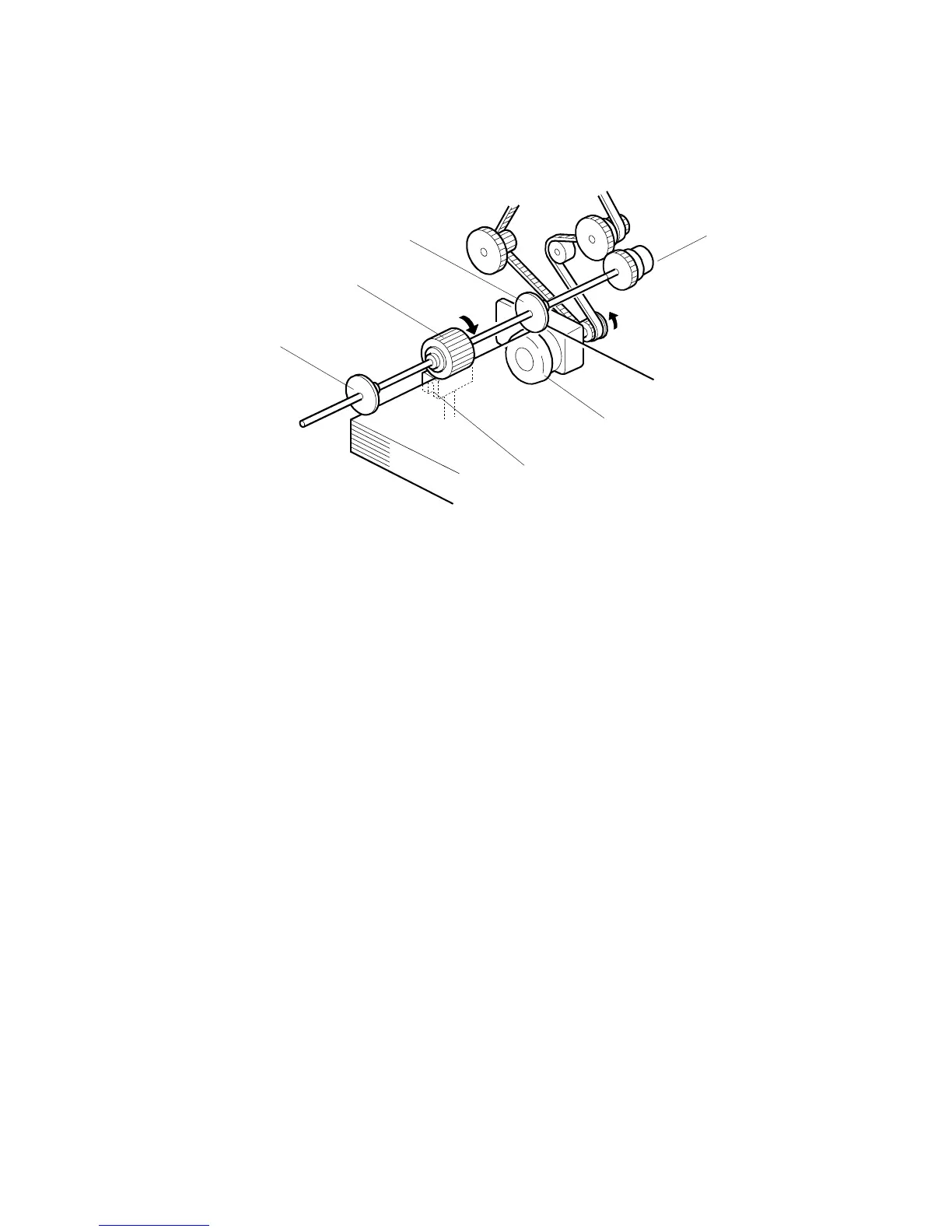

6.7.2 PAPER FEED MECHANISM
Mechanism
Main motor [A]
↓
Belt and gears
↓
Paper feed clutch [B]
↓
Turns the paper feed roller [C]
NOTE:
1) The machine uses a friction pad [D] and feed roller system. (!:
Handling Paper – Paper Feed – Paper Feed Methods – Friction Pad)
2) When the feed roller stops and paper is fed by the registration rollers,
the one-way clutches in the feed roller ensure that these rollers do not
resist paper feed.
3) The guides [E] help to feed paper that is not perfectly flat. The guides
are not used normally.
C252D020.WMF
[A]
[B]
[C]
[D]
[E]
[E]
