SERVICE PROGRAM MODE
C252 5-2 SM
5.1.2 MAIN MENU NO.1: INPUT MODE
No. Name Note
1-3 Original Sensor
1-26 Master End Sensor
1-27 Ink Detection Signal
1-31 Pressure Plate Home Position Sensor
1-32 Pressure Plate Limit Position Sensor
1-33 Master Eject Box Set Sensor
1-42 Paper Exit Sensor
1-43 Master Eject Sensor
1-44 Drum Master Sensor
1-52 Door Safety Switch
Master Making Unit Set Sensor
1-53 Cutter Home Position Sensor
1-56 Feed Start Timing Sensor
1-59 Master Eject Position Sensor
1-62 Drum Set Signal
1-65 Clamper Close Sensor
1-66 Clamper Open Sensor
1-68 Paper Registration Sensor
1-70 Master Set Cover Sensor
1-71 DIPSW 103-1
1-72 DIPSW 103-2
1-73 DIPSW 103-3
1-74 DIPSW 103-4
1-75 DIPSW 103-5
1-76 DIPSW 103-6
1-77 DIPSW 103-7
1-78 DIPSW 103-8
1-79 DIPSW 101-1
1-80 DIPSW 101-2
1-81 DIPSW 101-3
1-82 DIPSW 101-4
1-83 DIPSW 101-5
1-84 DIPSW 101-6
1-85 DIPSW 101-7
1-86 DIPSW 101-8
1-87 DIPSW 102-1
1-88 DIPSW 102-2
1-89 DIPSW 102-3
1-90 DIPSW 102-4
1-91 DIPSW 102-5
1-92 DIPSW 102-6
1-93 DIPSW 102-7
1-94 DIPSW 102-8

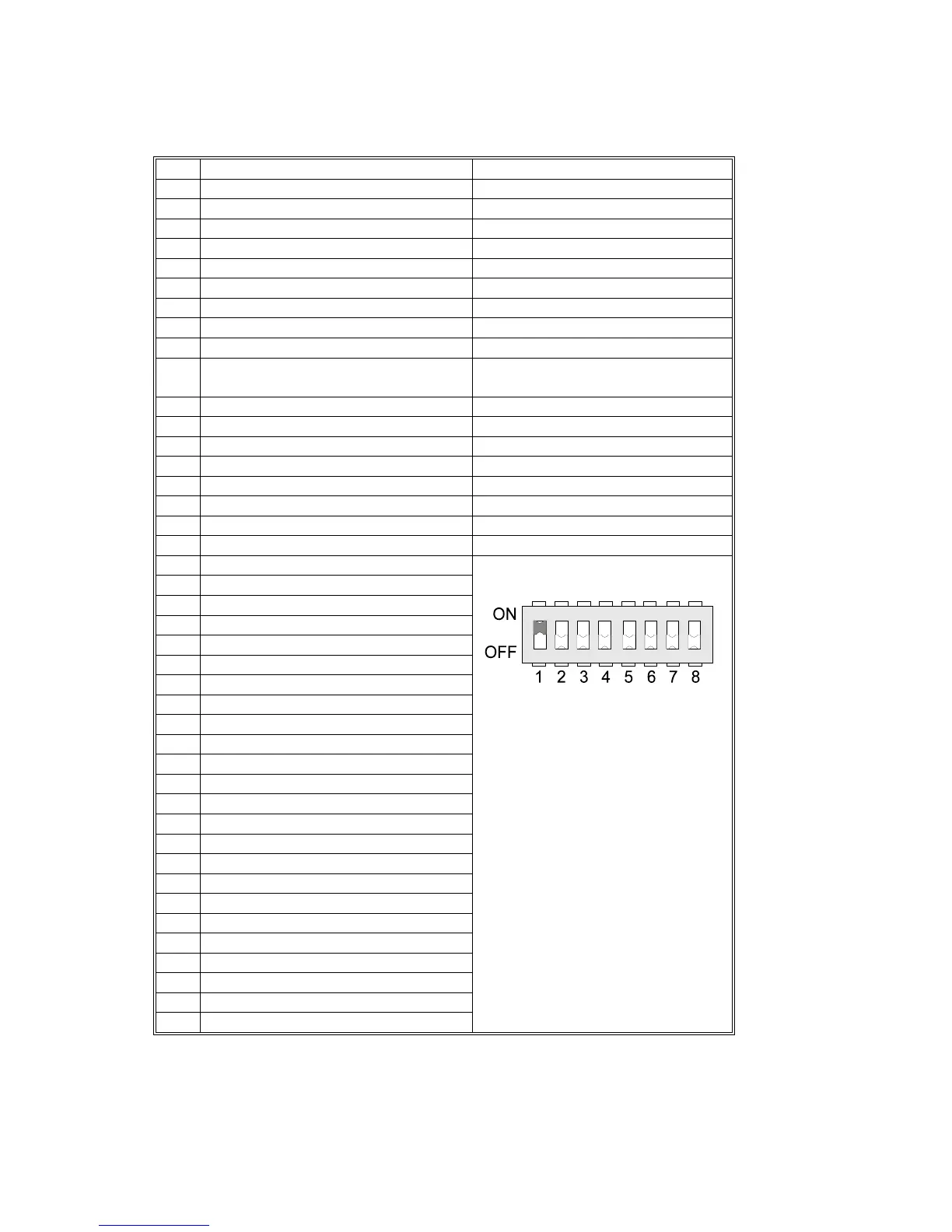

Use these SPs to test whether the
DIP switches are working properly.
