DIP SWITCHES
C252 5-8 SM
5.2.3 DIPSW101 NO.5 TO 8 – MASTER WRITING POSITION
ADJUSTMENT
Purpose: To match the printing side-to-side on the print paper with that on the
original.
Adjustment standard: ± 1.0 mm

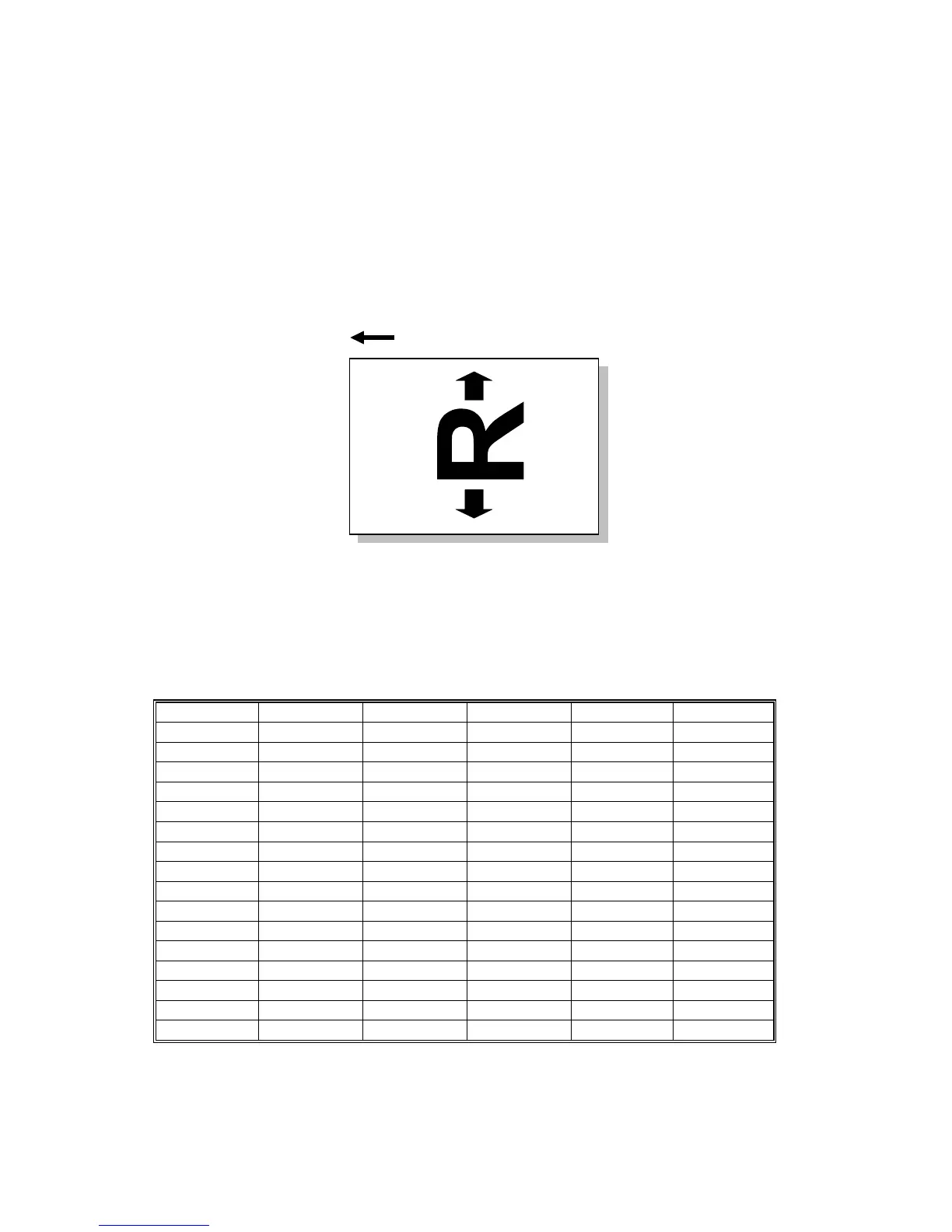

The master writing position moves as shown below.
NOTE: The image position on a trial print, which is automatically made after
making a master, tends to vary. Do not use the trial print when making
adjustments.
DIPSW101-5 DIPSW101-6 DIPSW101-7 DIPSW101-8 Difference Difference
ON ON ON ON -28 dots -2.38 mm
OFF ON ON ON -24 dots -2.04 mm
ON OFF ON ON -20 dots -1.7 mm
OFF OFF ON ON -16 dots -1.36 mm
ON ON OFF ON -12 dots -1.02 mm
OFF ON OFF ON -8 dots -0.68 mm
ON OFF OFF ON -4 dots -0.34 mm
OFF OFF OFF ON 0 0
OFF OFF OFF OFF 0 0
ON ON ON OFF +28 dots +2.38 mm
OFF ON ON OFF +24 dots +2.04 mm
ON OFF ON OFF +20 dots +1.7 mm
OFF OFF ON OFF +16 dots +1.36 mm
ON ON OFF OFF +12 dots +1.02 mm
OFF ON OFF OFF +8 dots +0.68 mm
ON OFF OFF OFF +4 dots +0.34 mm
1 dot = 0.085 mm
Paper Feed Direction
+
–
