PAPER DELIVERY
SM 6-33 C252
Detailed
Descriptions
6.8.2 PAPER DELIVERY UNIT DRIVE MECHANISM

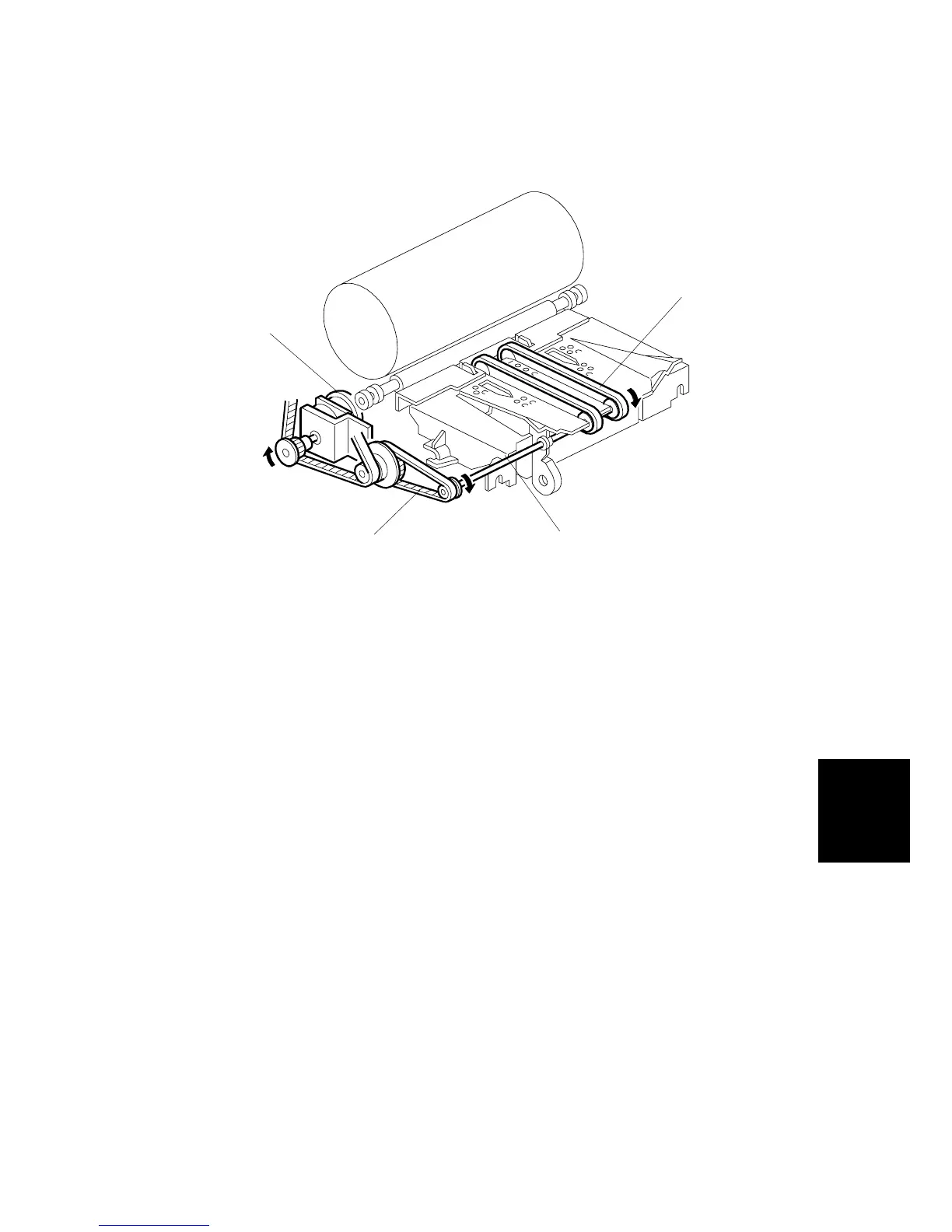

Mechanism
Main motor [A]
↓
Belt and gear [B]
↓
Shaft [C]
↓
Rotates the transport belts [D].
NOTE:
1) The vacuum fan motor inside the unit holds the paper against the belts
[D] to deliver the paper to the delivery table.
2) The transport belt rotation speed depends on the selected print speed.
C252D028.WMF
[A]
[B]
[D]
[C]
