Ricoh C252 - Timing Adjustment

PAPER DELIVERY
C252 3-34 SM
Timing adjustment
Standard: 0 or less than 0.5 mm
• Front cover (! 3.2.1), Rear covers (! 3.2.2)
Do this after the clearance adjustment (the procedure is on the next page).

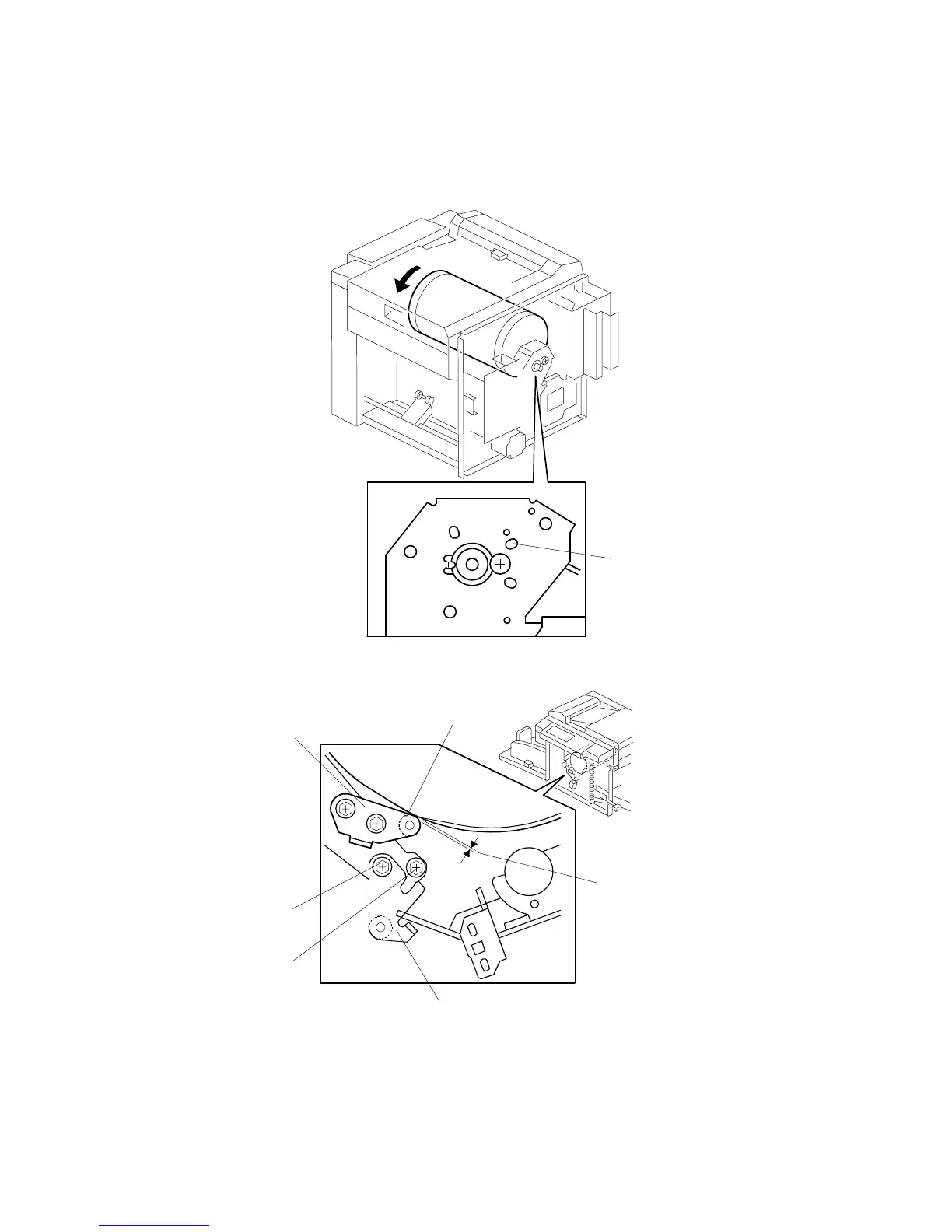

C252R022.WMF
C252R034.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
