Ricoh C252 - Ink Supply Mechanism

DRUM
SM 6-19 C252
Detailed
Descriptions
6.6.3 INK SUPPLY MECHANISM

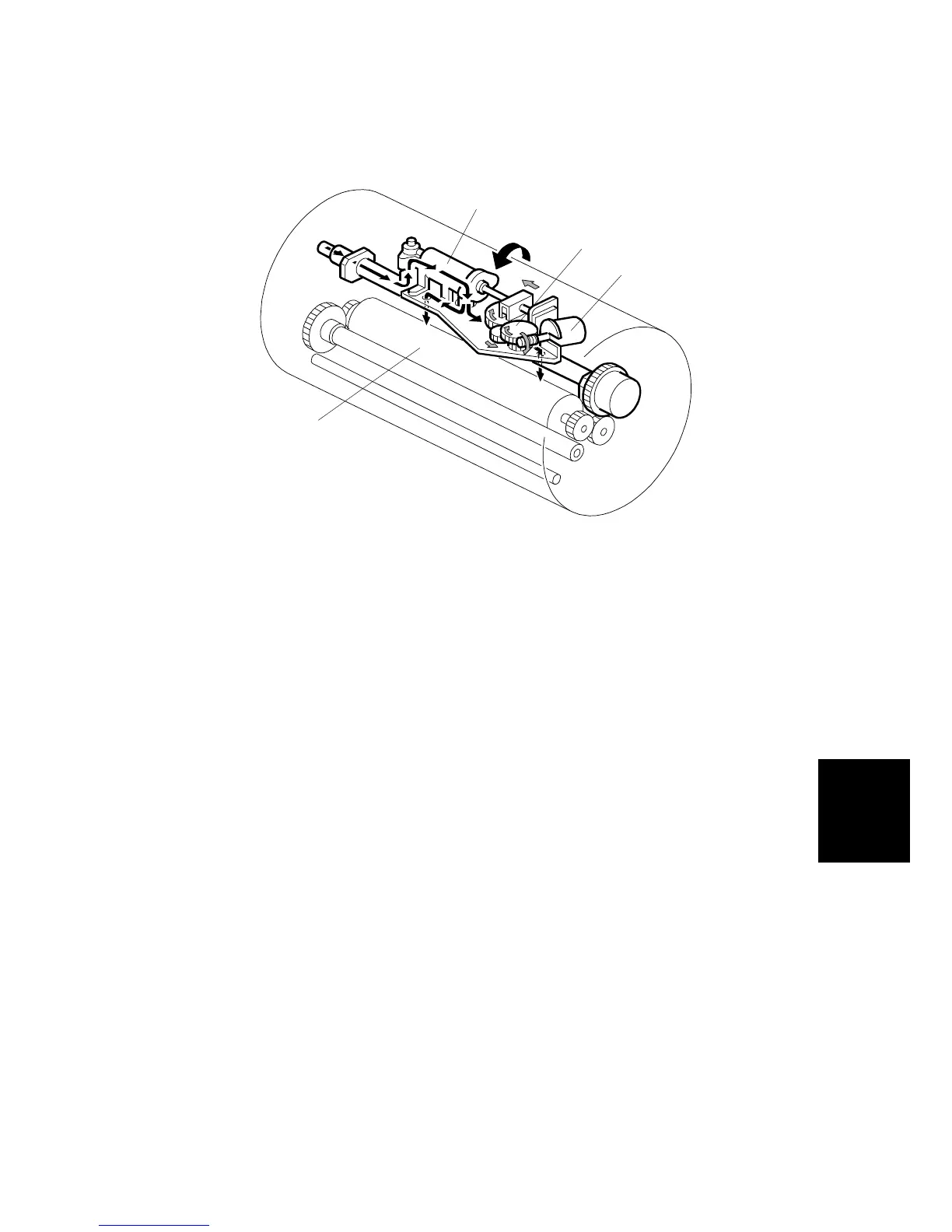

Mechanism
Ink pump motor [A]
↓
Gears [B]
↓
Gear rotation converted into piston motion.
↓
Supplies ink from the ink cartridge to the ink roller via the pump [C]. Ink drops
through holes in the ink roller [D].
NOTE: There are four holes in the shaft for the B4 size drum, and two holes for the
Legal size drum.
