3.8.2 PAPER REGISTRATION ROLLER
• Remove the paper table
• Front cover (! 3.2.1)
• Rear cover (! 3.2.2)
• MPU (! 3.3.1)

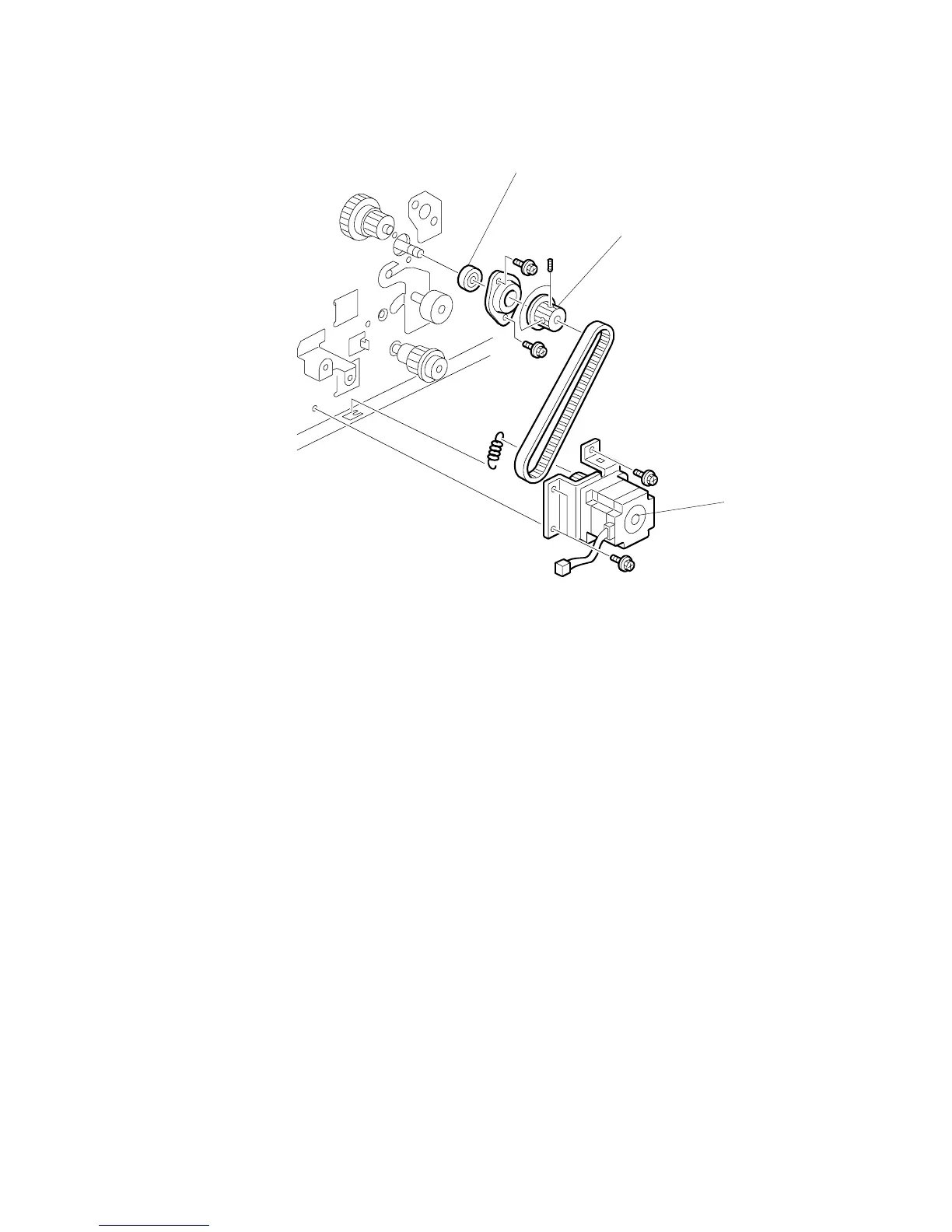

[A]: Registration motor (spring,  x 3, belt  x1)
[B]: Gear
[C]: Bearing ( x 2)
C252R020.WMF
[A]
[B]
[C]
