Ricoh C252 - Registration Roller Mechanism

PAPER FEED
C252 6-26 SM
6.7.4 REGISTRATION ROLLER MECHANISM

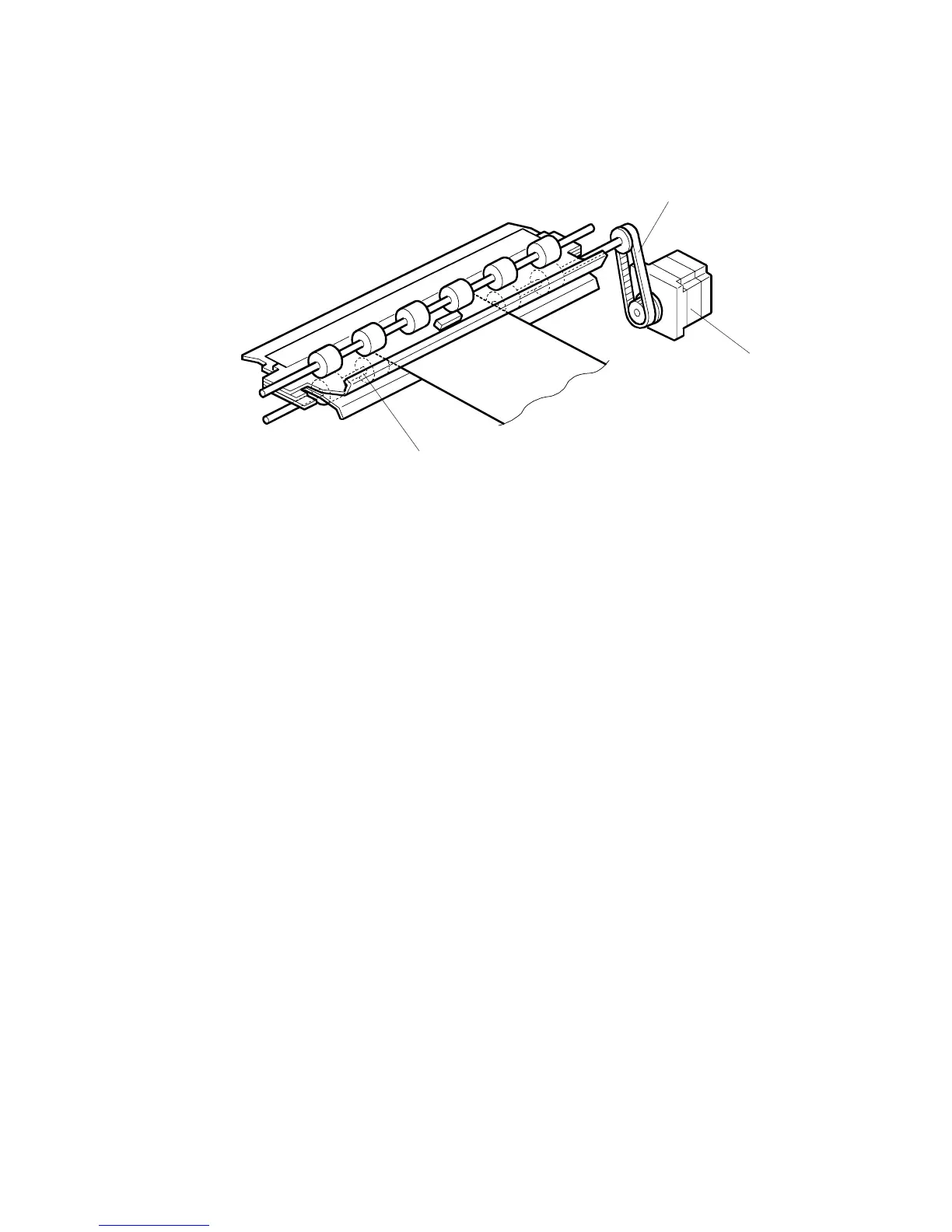

Registration Roller Drive
Registration motor [A]
↓
Belt [B]
↓
Turns the lower registration roller [C]
NOTE:
1) The CPU controls the registration roller start timing to synchronize the
print paper with the image on the master on the drum.
2) The motor speed depends on the selected printing speed.
3) By pressing the image position keys on the operation panel, the
registration motor start timing is changed.
C252D022.WMF
[A]
[B]
[C]
