MAIN DRIVE
SM 3-37 C252
Replacement
and
Adjustment
3.11.2 MAIN MOTOR PULLEY POSITION

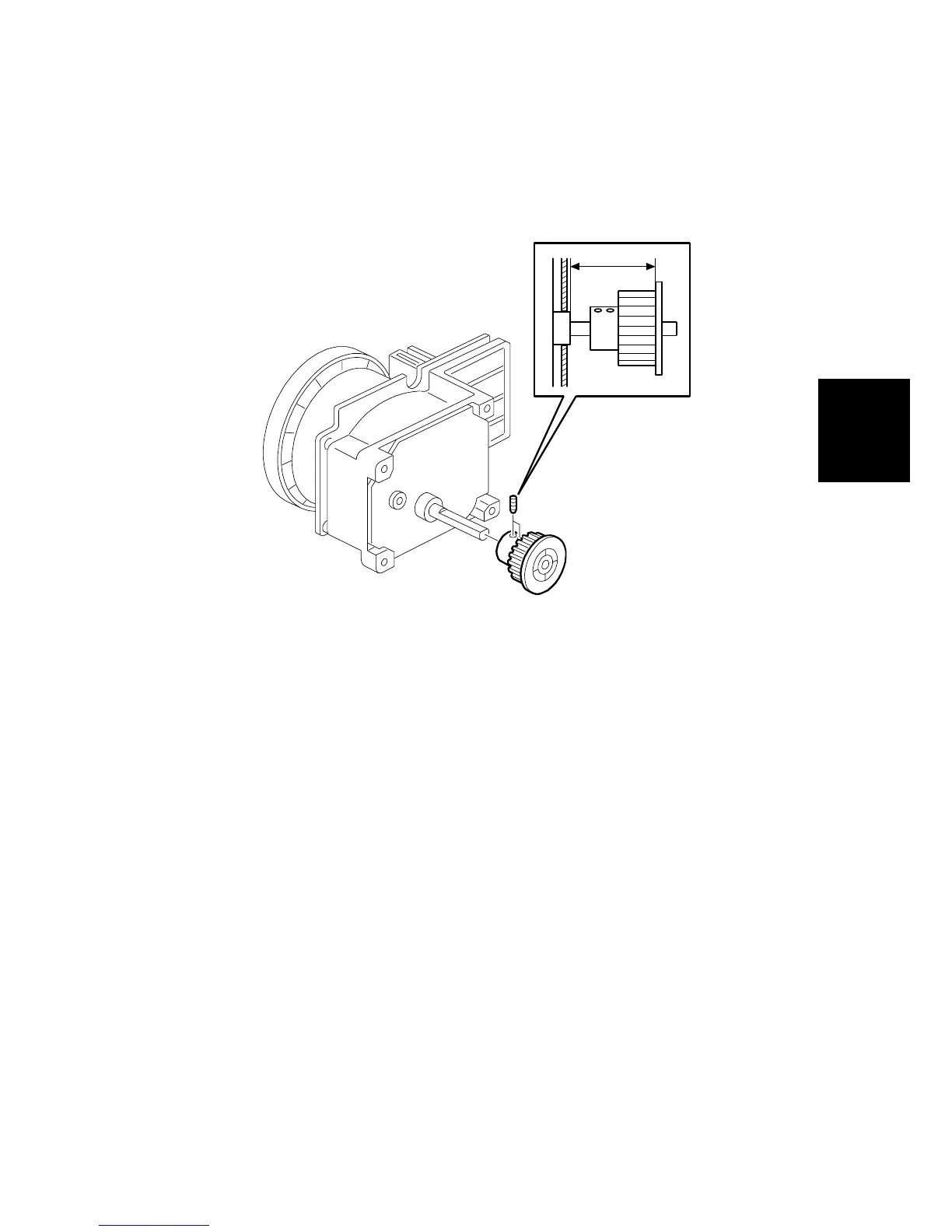

After putting the pulley back on the main motor shaft, refer to the above illustration
for the correct position of the pulley.
C252R036.WMF
44.7 ± 0.1mm
