MASTER EJECT
SM 3-13 C252
Replacement
and
Adjustment
3.6 MASTER EJECT

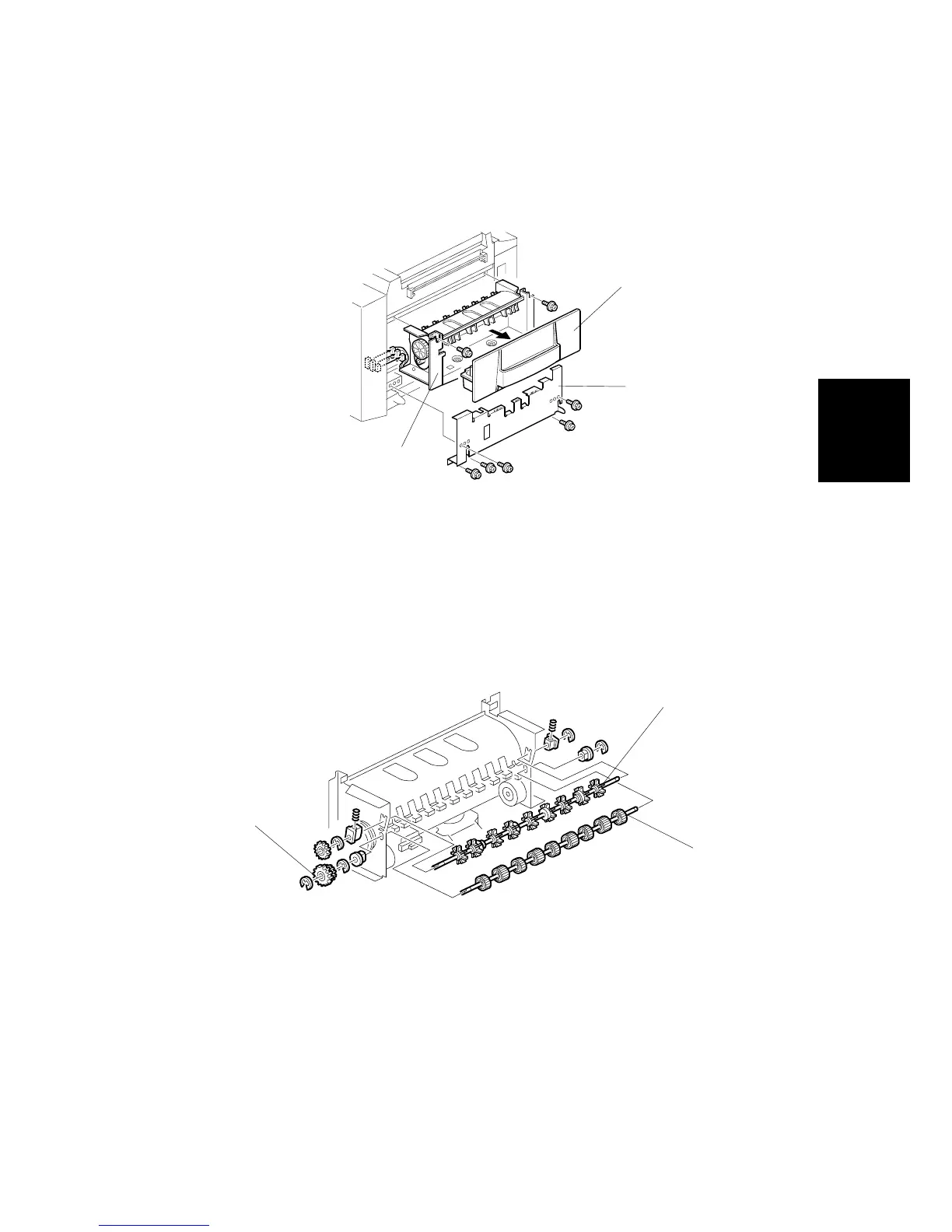

3.6.1 MASTER EJECT UNIT
[A]: Paper delivery cover ( x 5)
[B]: Master eject box
[C]: Master eject unit ( x 2,  x 3)
3.6.2 MASTER EJECT ROLLERS
• Master eject unit (!3.6.1)
[A]: Gears ( x 1)
[B]: Lower master eject roller ( x 2)
[C]: Upper master eject roller ( x 2, spring)
C252R013.WMF
C252R014.WMF
[A]
[B]
[C]
[A]
[B]
[C]
