Ricoh C252 - Paper Table Mechanism

PAPER FEED
C252 6-30 SM
6.7.8 PAPER TABLE MECHANISM
Table lifting / lowering
Mechanism

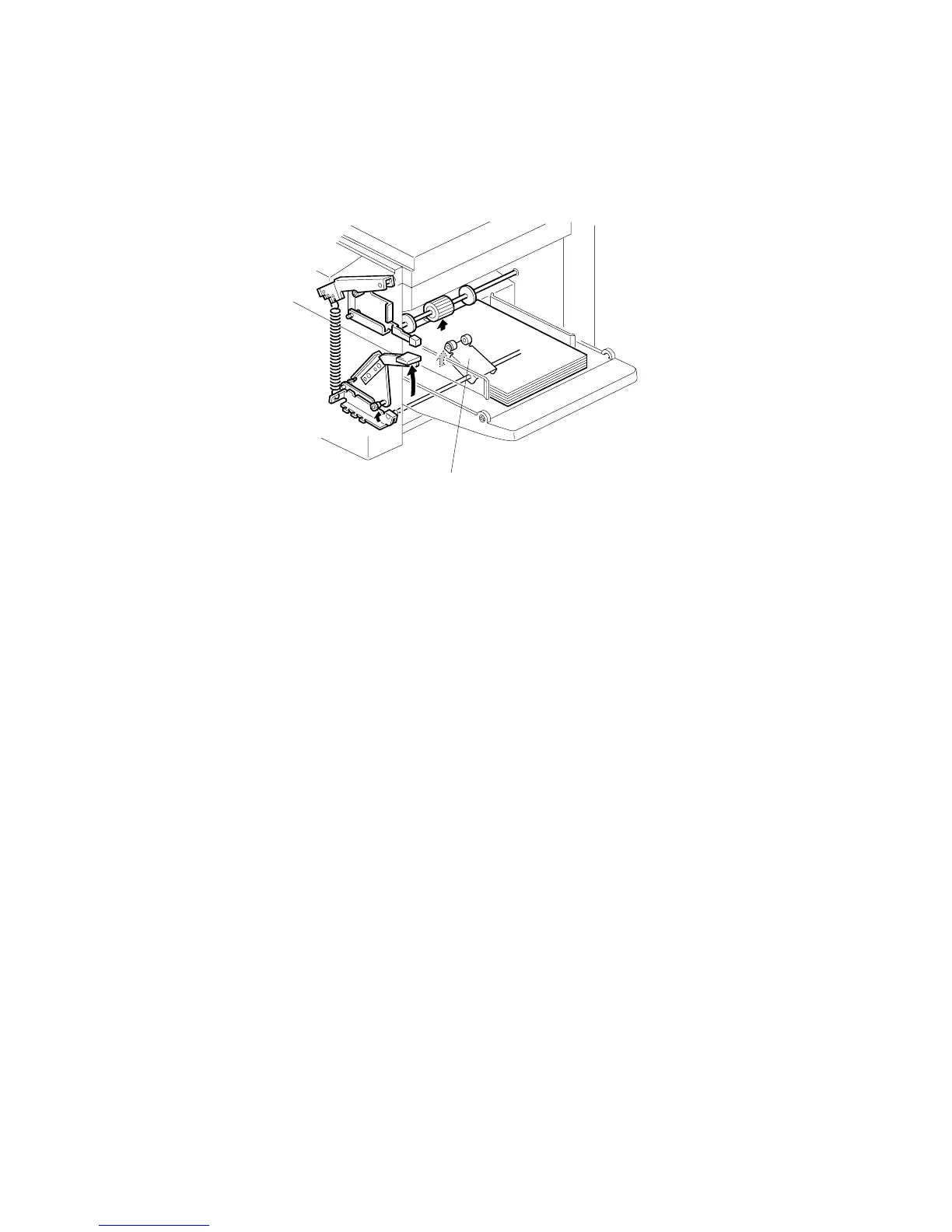

The user moves the paper feed tray adjustment lever [A] up or down.
↓
Link and spring
↓
Plate [B]
↓
Lift or lower the paper table.
• When the user raises the paper feed tray adjustment lever [A], the plate [B] lifts
the paper table to the paper feed position.
Paper end detection
There is no paper end sensor.
The registration sensor detects when the paper on the table runs out. Then, the
following three indicators light: “A jam indicator”, “”, “”.
NOTE: This is the same condition as the paper jam detected during the refeed
process (section 6.7.7); the machine cannot distinguish between these two
conditions. The user must check for both a paper jam and a paper end
condition at this time.
After the front cover is opened and closed, only the paper end indicator will remain
lit.
C252D024.WMF
[A]
[B]
