4.4.6 PAPER DELIVERY JAM (C JAM LOCATION INDICATOR)
Paper delivery
Check 1:

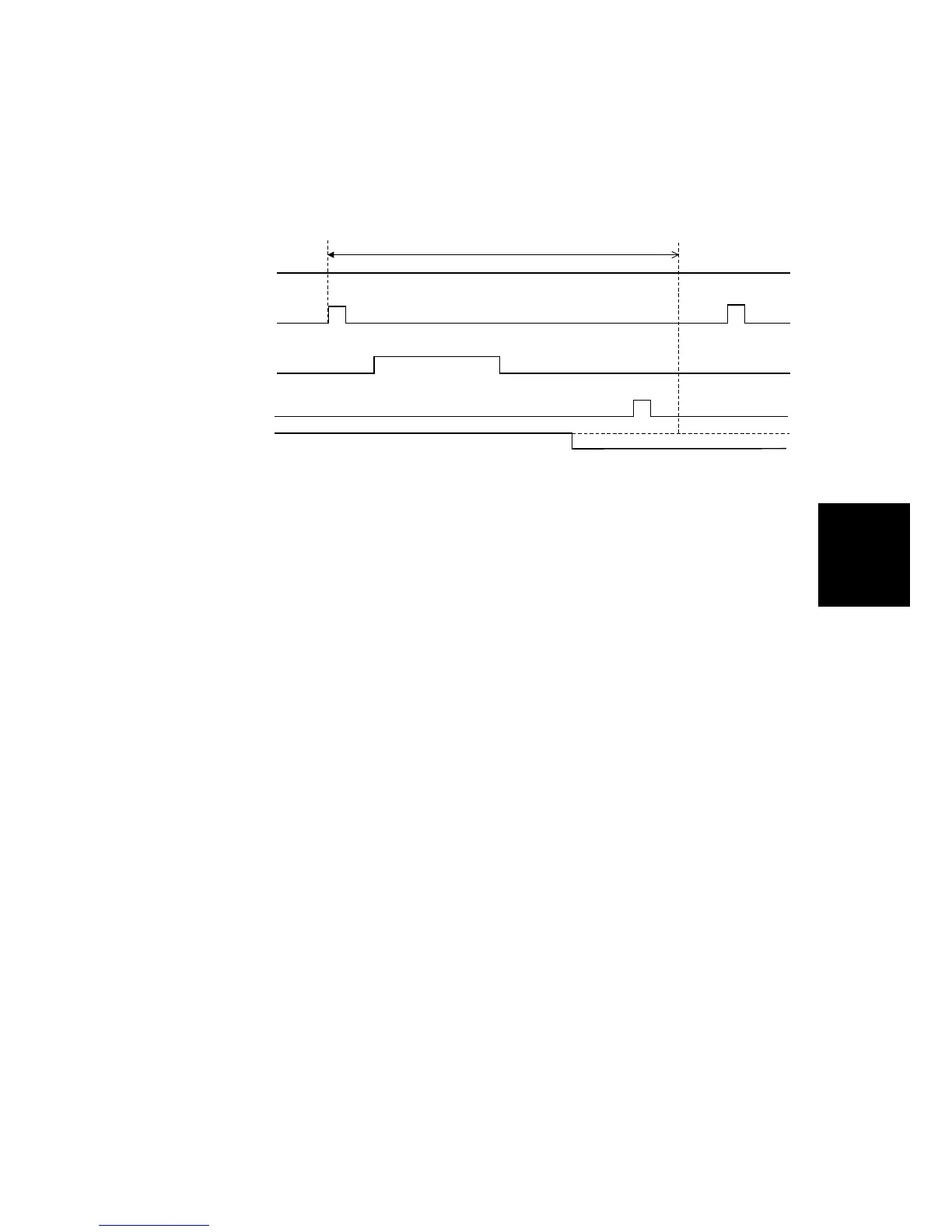

When the drum has turned 273 degrees since the feed start timing sensor turns on,
if the paper exit sensor detects paper, the C jam location indicator lights.
Just after turning on the main switch
Check:
If the paper exit sensor detects paper, the C jam location indicator lights.
273 degrees
Check 1
Main Motor
Feed Start
Timing Sn.
Registration Sn.
Master Eject
Position Sn.
Paper Exit Sn.
ON
C252T909.WMF
