SM 3-47 G147
Replacement
Adjustment

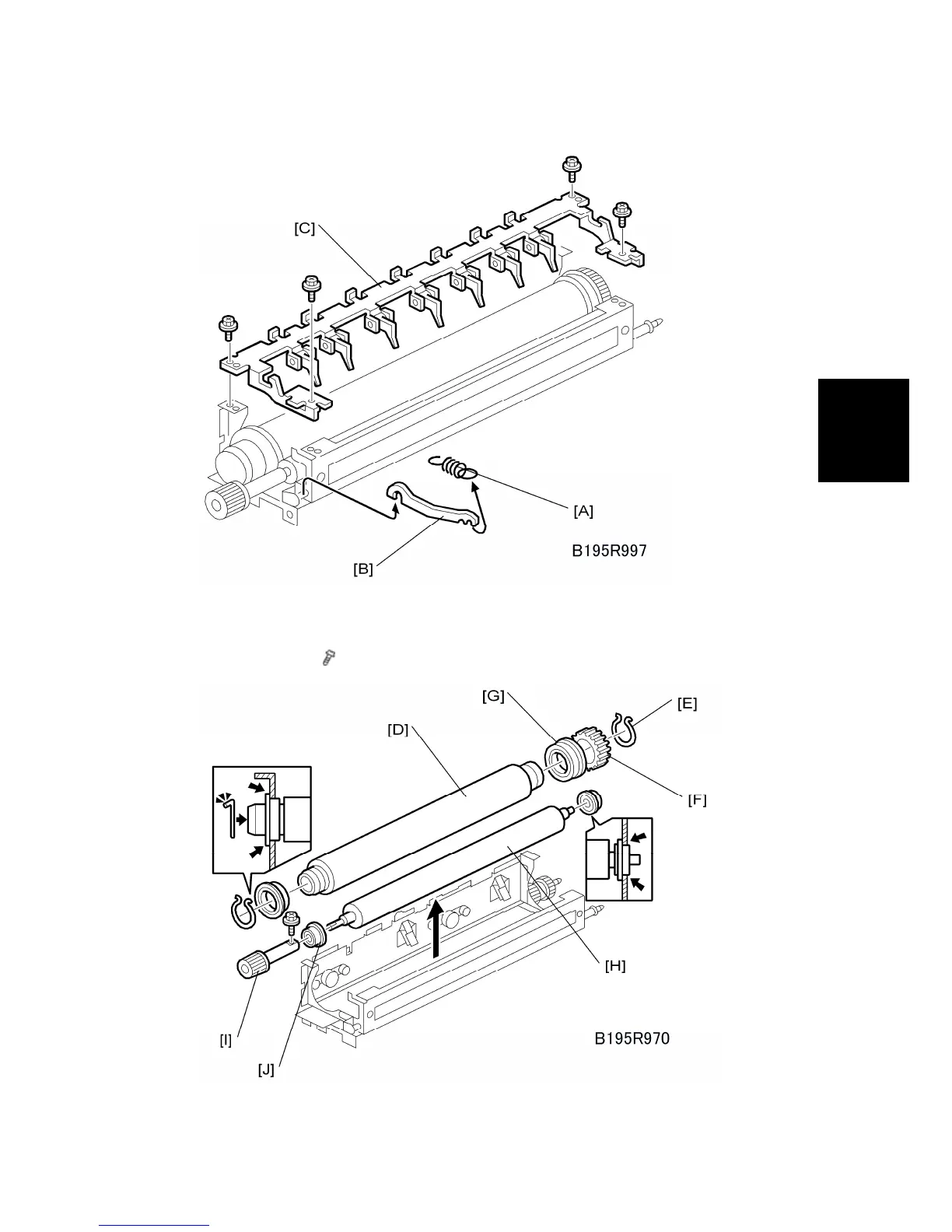

5. Springs x2 [A] (both sides)
6. Arms x2 [B] (both sides)
7. Pawl bracket [C] (
x4)
