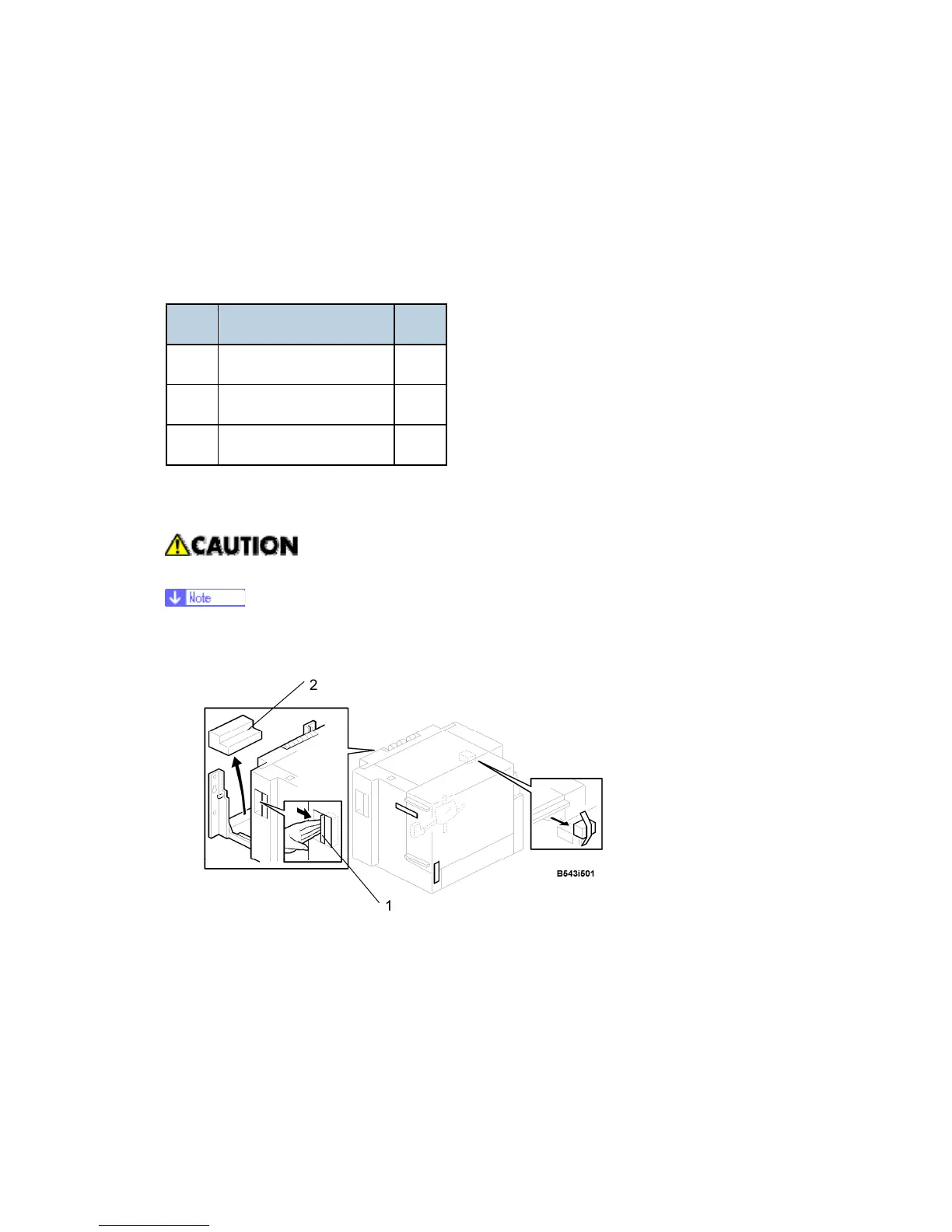

G147 1-6 SM
1.4 LCT (B543)
1.4.1 ACCESSORY CHECK: LCT
Check the quantity and condition of the accessories in the box against the following list:
No. Description Q’ty
1. Joint Pin 2
2. Stepped Screw M3 x 18 4
3. Installation Procedure 1
1.4.2 INSTALLATION PROCEDURE: LCT
Unplug the main machine power cord before starting the following procedure.
The Paper Tray G839 must be installed before installing the LCT.
1. Unpack the LCT.
2. Remove the tapes on the unit.
3. Release the lever [1] and remove the spacer [2].
