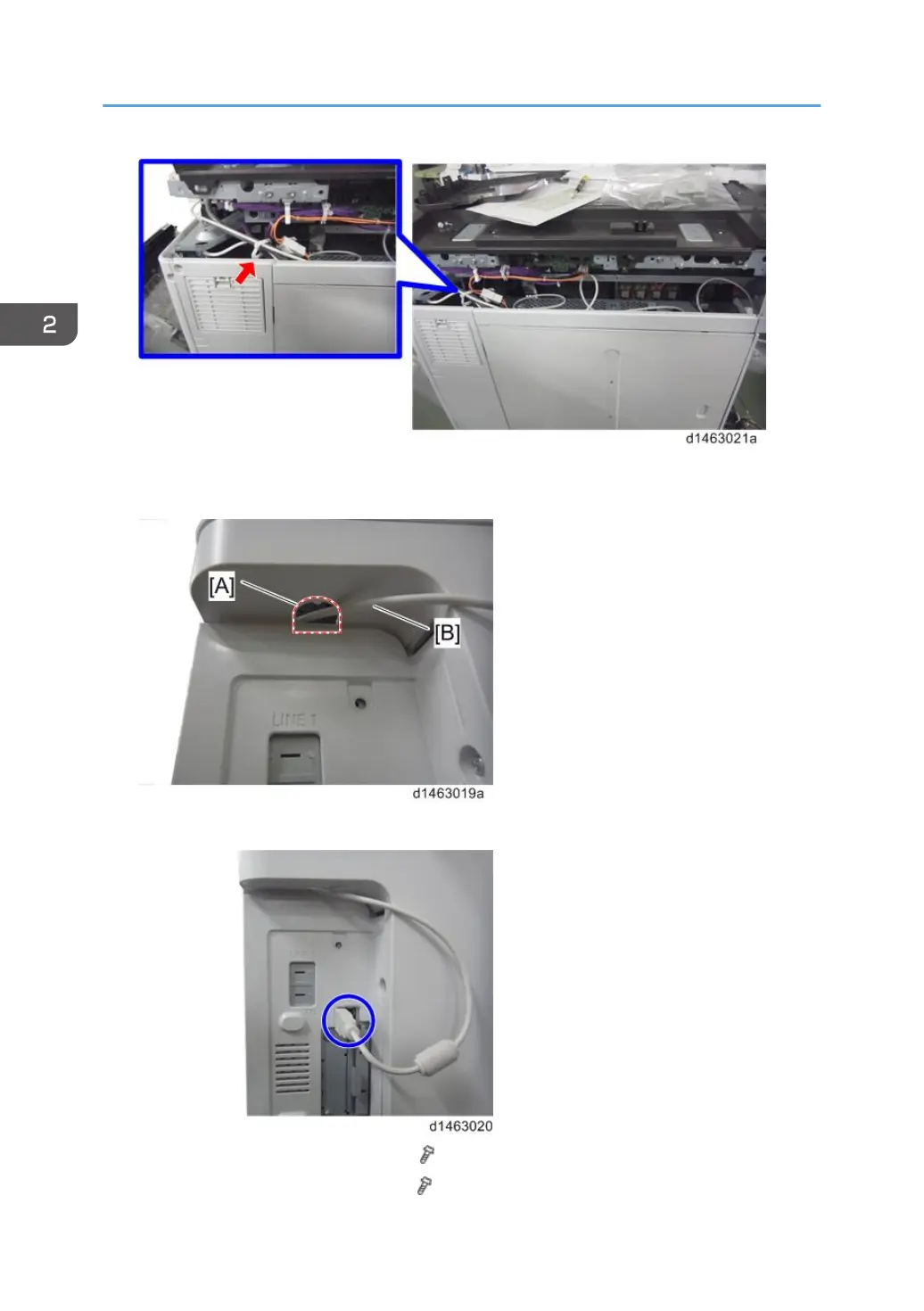

14.
Remove the cutout [A] in the left rear cover to make a cable hole, and then pass the USB
cable [B] through it.
15.
Connect the USB cable to the USB slot (the left side).
16.
Reattach the scanner right cover [A] (
×1).
17.
Reattach the scanner rear cover [A] (
×3).
