Ricoh SR3270 - Stapler Transfer Motor (STM6); Paper Guide Drive Motor (STM18)

2.Replacement and Adjustment
94

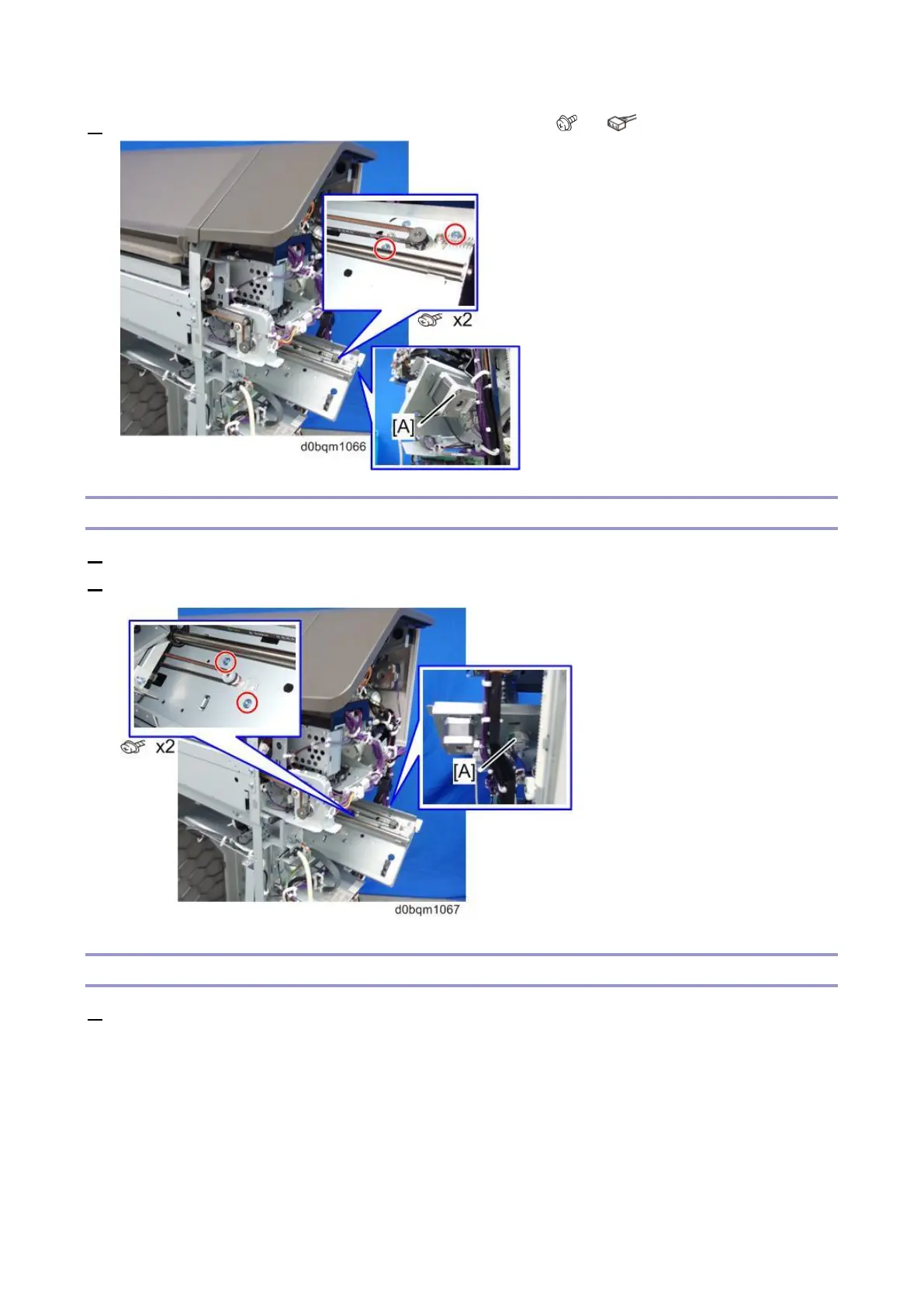

2. Remove the Stapleless Stapler Transfer Motor (STM17) [A] ( ×2, ×1).
Stapler Transfer Motor (STM6)
1. Move the stapleless stapler unit to the recess. (Stapleless Stapler Transfer Motor (STM17))
2. Remove the Stapler Transfer Motor (STM6) [A].
Paper Guide Drive Motor (STM18)
1. Remove the inner cover (Inner Cover).
