Ricoh SR3270 - Jogger Motor (STM3); Booklet Transport (Upper) Pressure Release Motor (STM9) (SR3270 Only); Feedout Pawl Motor (STM4)

2.Replacement and Adjustment
84
Jogger Motor (STM3)
1. Remove the stapler tray (Stapler Tray).

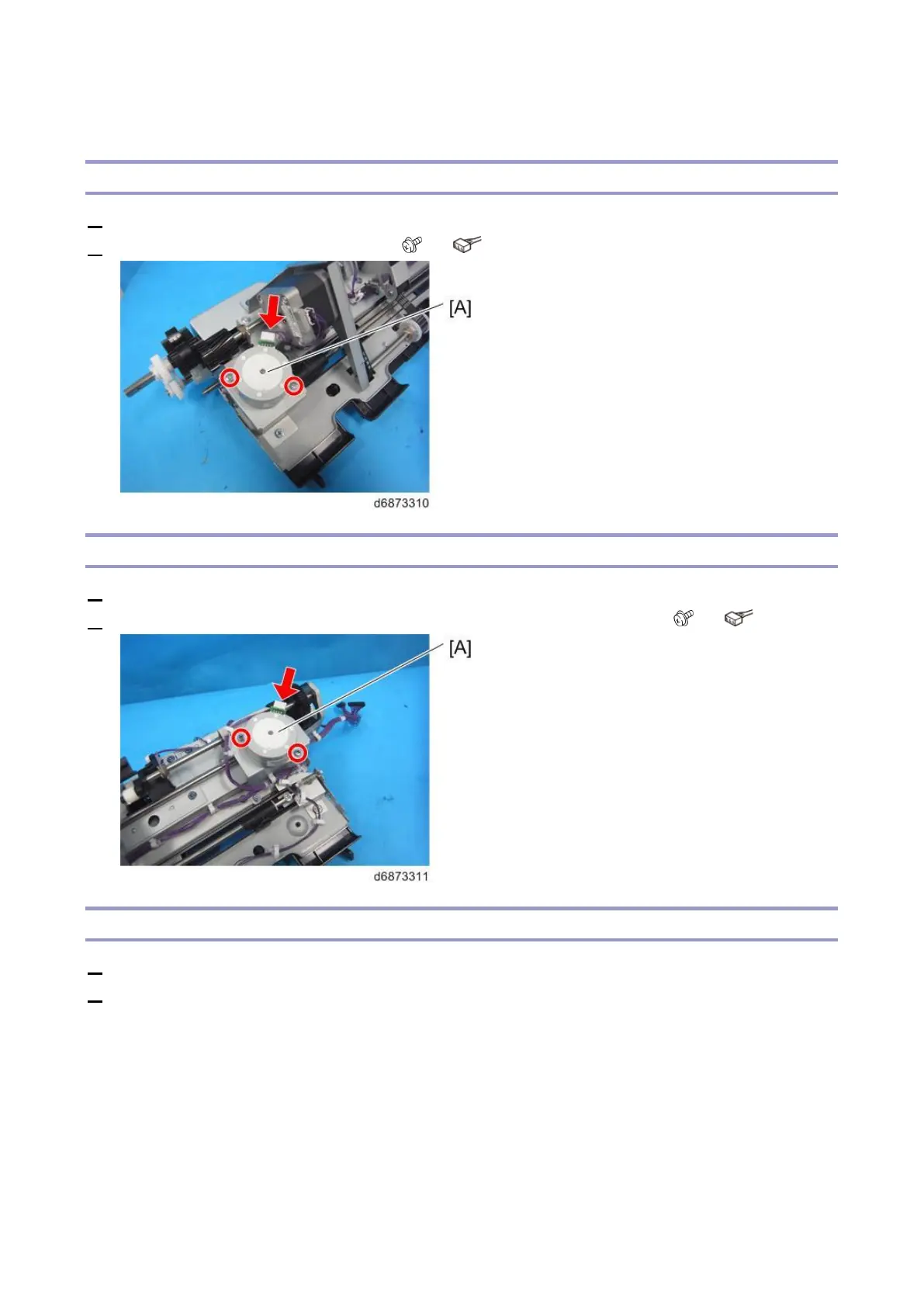

2. Remove the Jogger Motor (STM3) [A] ( ×2, ×1).
Booklet Transport (Upper) Pressure Release Motor (STM9) (SR3270 Only)
1. Remove the stapler tray (Stapler Tray).
2. Remove the Booklet Transport (Upper) Pressure Release Motor (STM9) [A] ( ×2, ×1).
Feedout Pawl Motor (STM4)
1. Remove the stapler tray (Stapler Tray).
2. Remove the clip ring, and then slide the bearing.
