1.Detailed Descriptions
20
Mechanisms

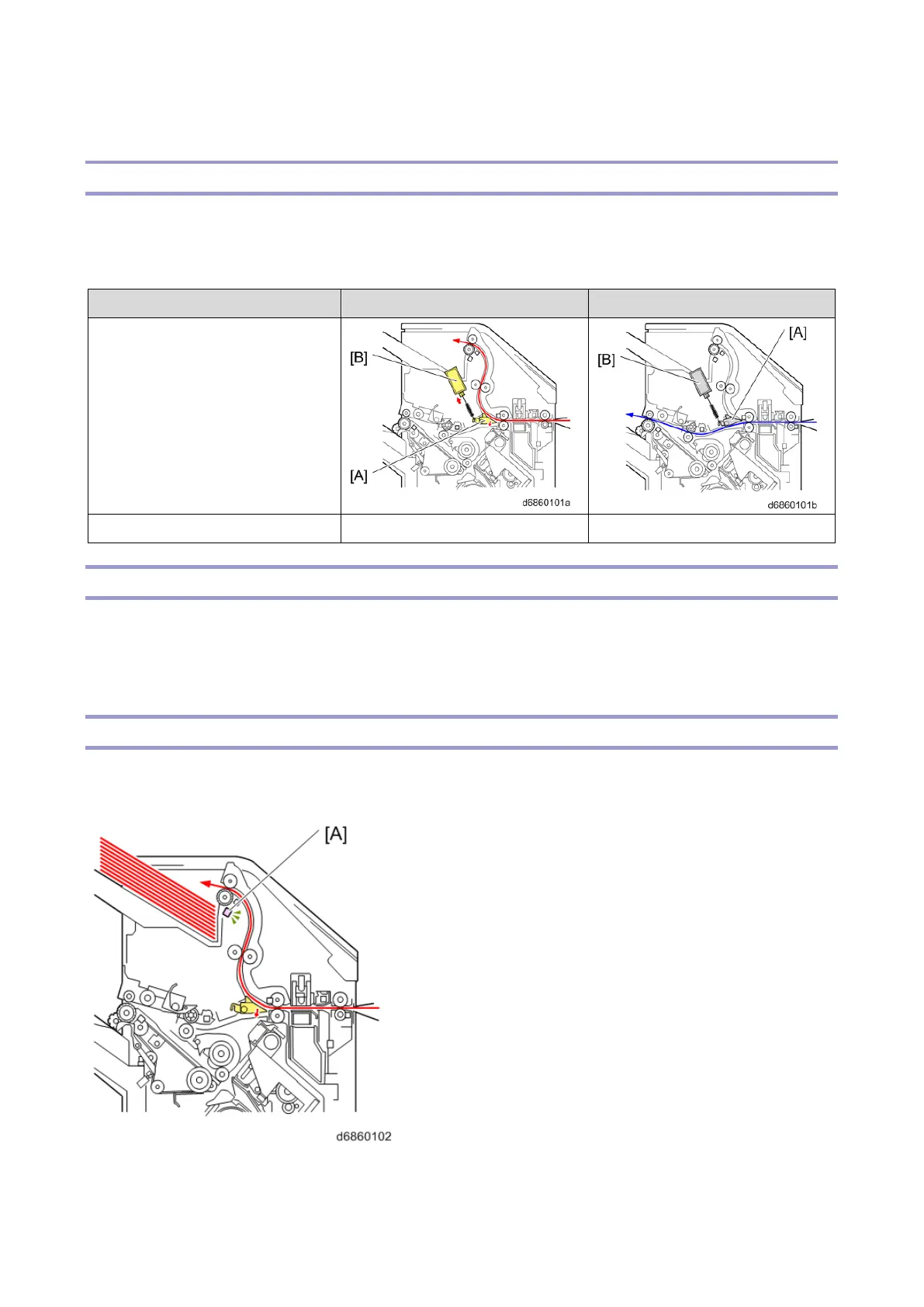

Separation Mechanism
In the separation unit, the transport path of the paper is changed with the junction gate [A] by the
Junction Gate Solenoid (SOL1) [B].
The change-over action of the junction gate is as follows.
Proof Tray Transport
The proof tray paper exit roller, proof transport roller and the intermediate transport roller are driven by
the Proof Transport Motor (DCM2). The entrance transport roller is driven by the Entrance Transport
Motor (DCM1).
Proof Tray Full Detection
The Proof Tray Full Sensor (S21) [A] is above the proof tray. When a fixed amount of paper is ejected, it
switches OFF (blocked), and "Full" is detected.
