Ricoh SR3270 - Positioning Roller Motor (STM5)

2.Replacement and Adjustment
71

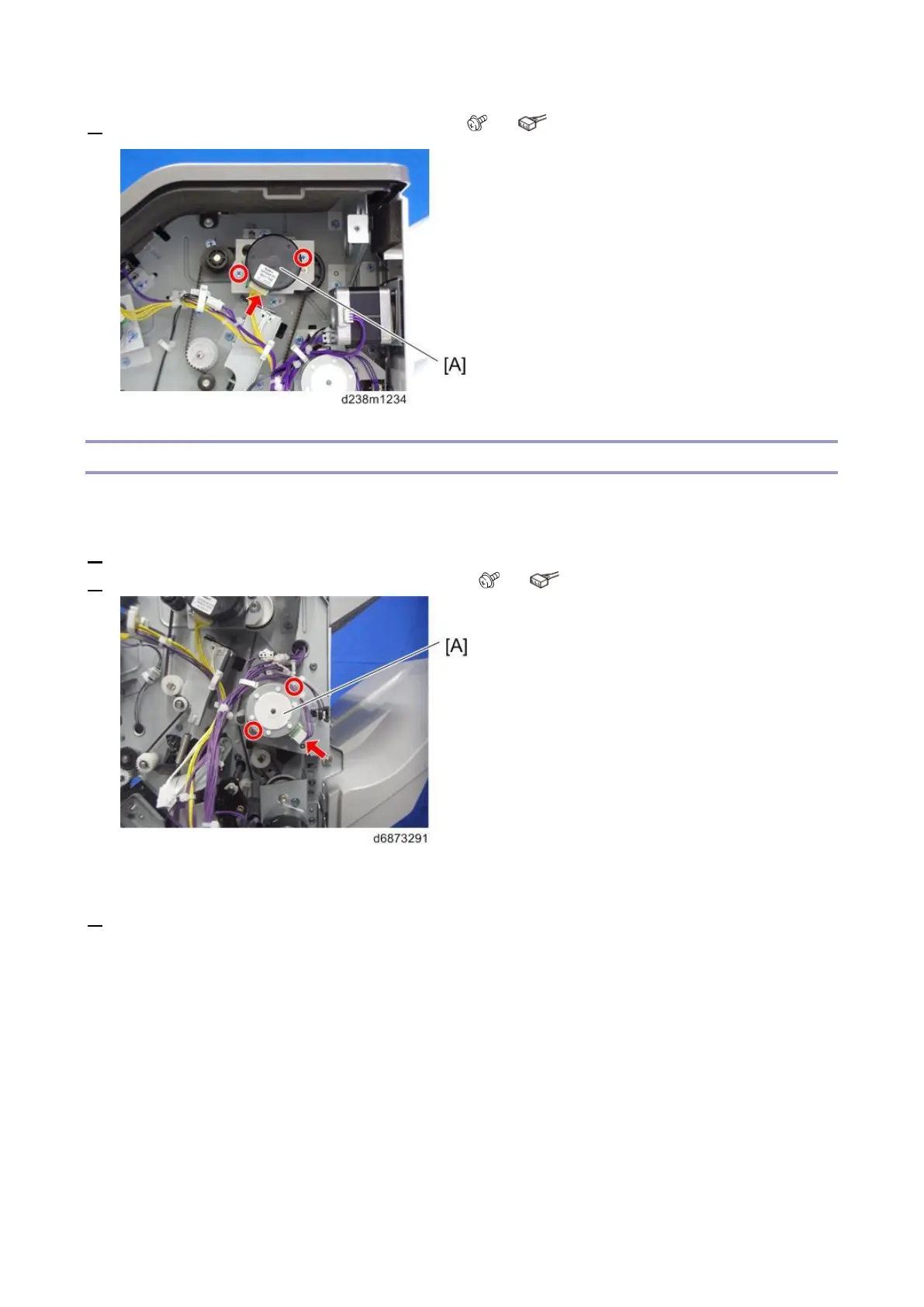

2. Remove the Proof Transport Motor (DCM2) [A] ( ×2, ×1).
Positioning Roller Motor (STM5)
For Booklet Finisher SR3270
1. Remove the rear cover (Rear Cover).
2. Remove the Positioning Roller Motor (STM5) [A] ( ×2, ×1).
For Finisher SR3260
1. Remove the rear cover (Rear Cover).
