Ricoh SR3270 - Main Unit Components Replacement

Ricoh SR3270
128 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
2.Replacement and Adjustment
57

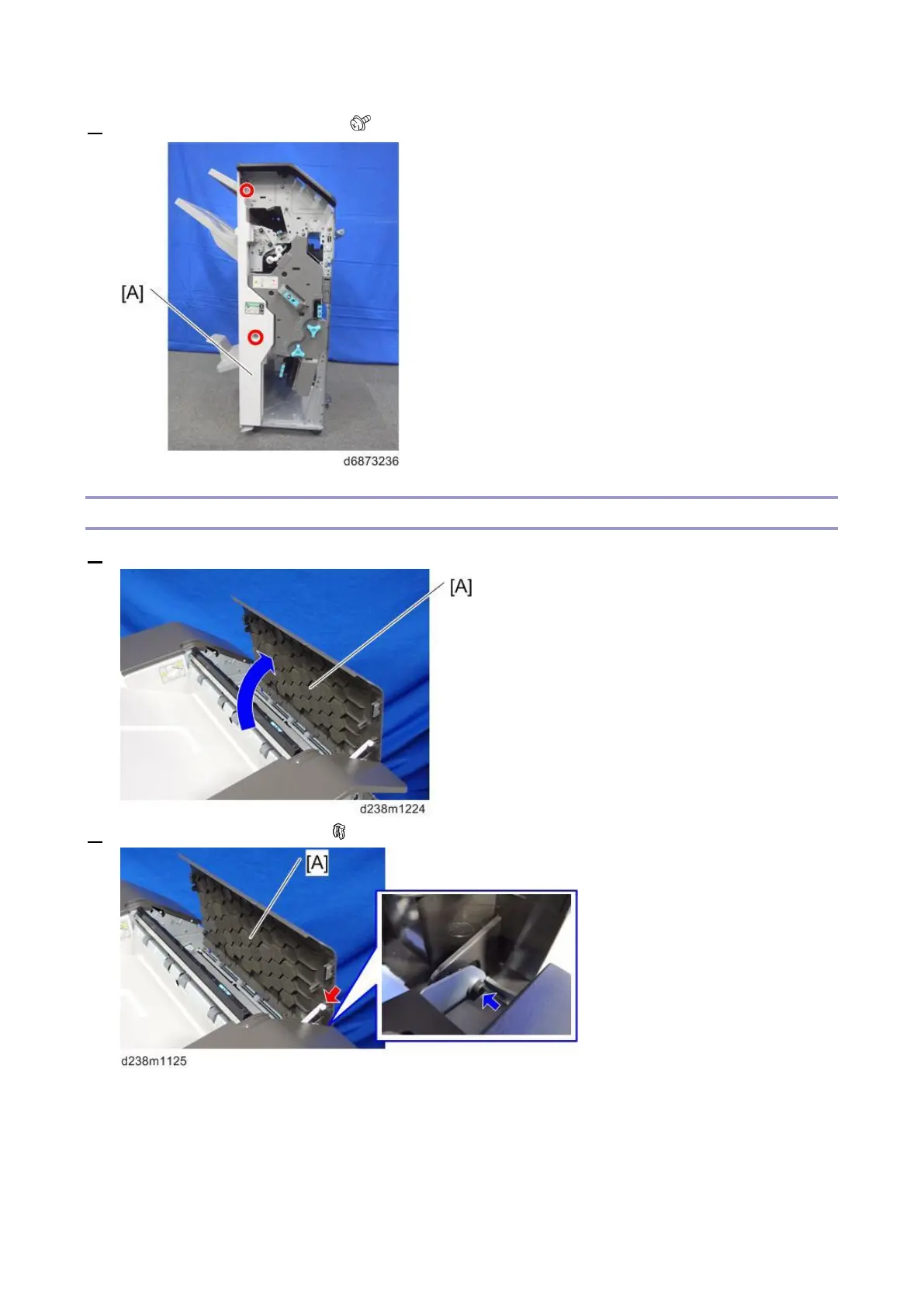

2. Remove the front left cover [A] ( ×2).
Upper Cover
1. Open the upper cover [A].
2. Remove the upper cover [A] ( ×1, tab ×1).
