Ricoh SR3270 - Drive Layout Components

1.Detailed Descriptions
18

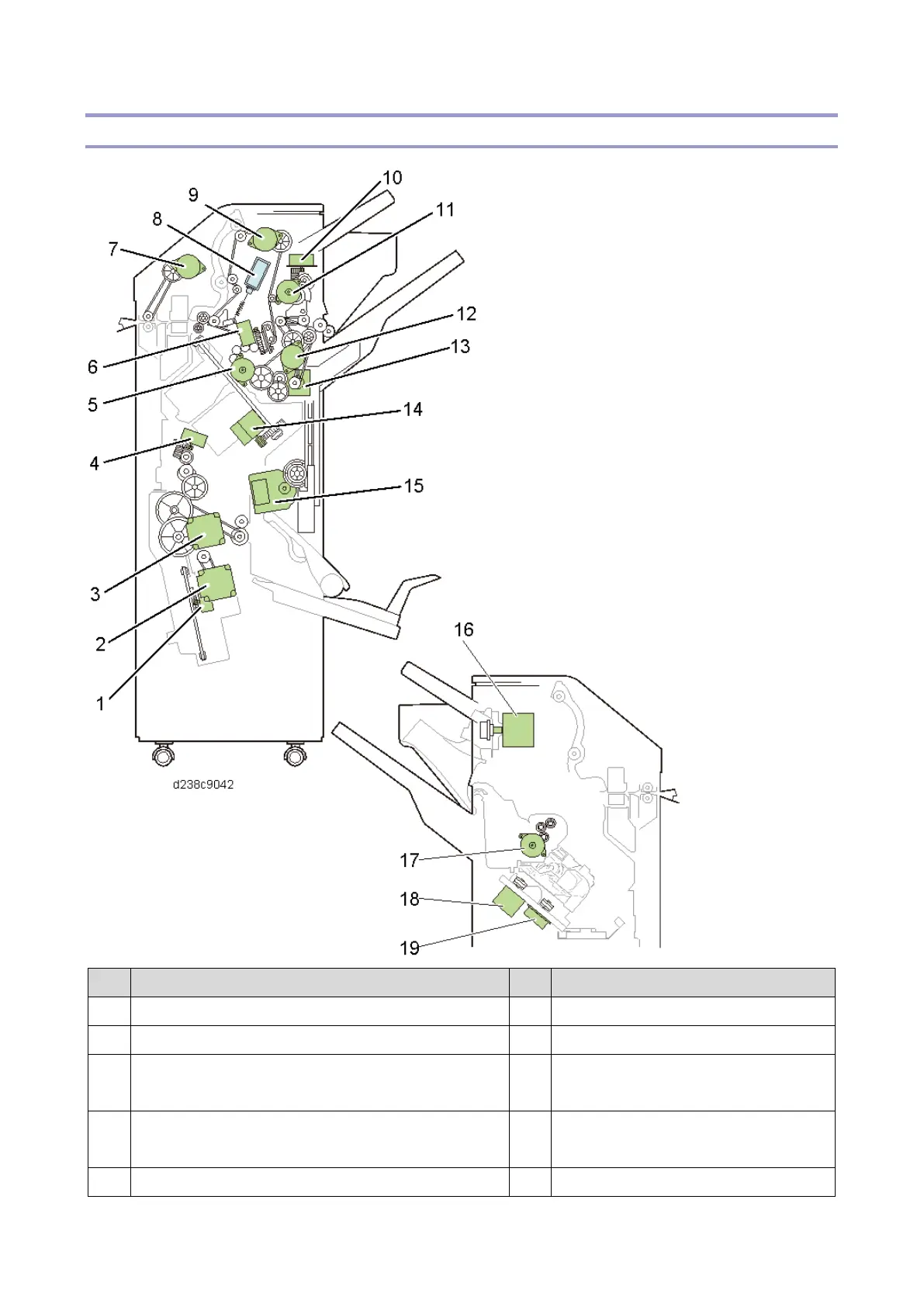

Drive Layout
No.
Description
No.
Description
1
Edge stopper motor (STM13)
12
Paper Exit Transport Motor (DCM3)
2
Folding Blade Motor (STM11)
13
Feedout Pawl Motor (STM4)
3
Folding Transport Motor (STM12)
14
Booklet stapler transfer motor
(STM7)
4
Booklet Transport (Lower) Pressure Release
Motor (STM10)
15
Tray Lift Motor (DCM4)
5
Booklet Transport (Upper) Motor (STM8)
16
Paper Exit Guide Drive Motor
