Ricoh SR3270 - Electrical Component Layout; Transport System Components

1.Detailed Descriptions
12

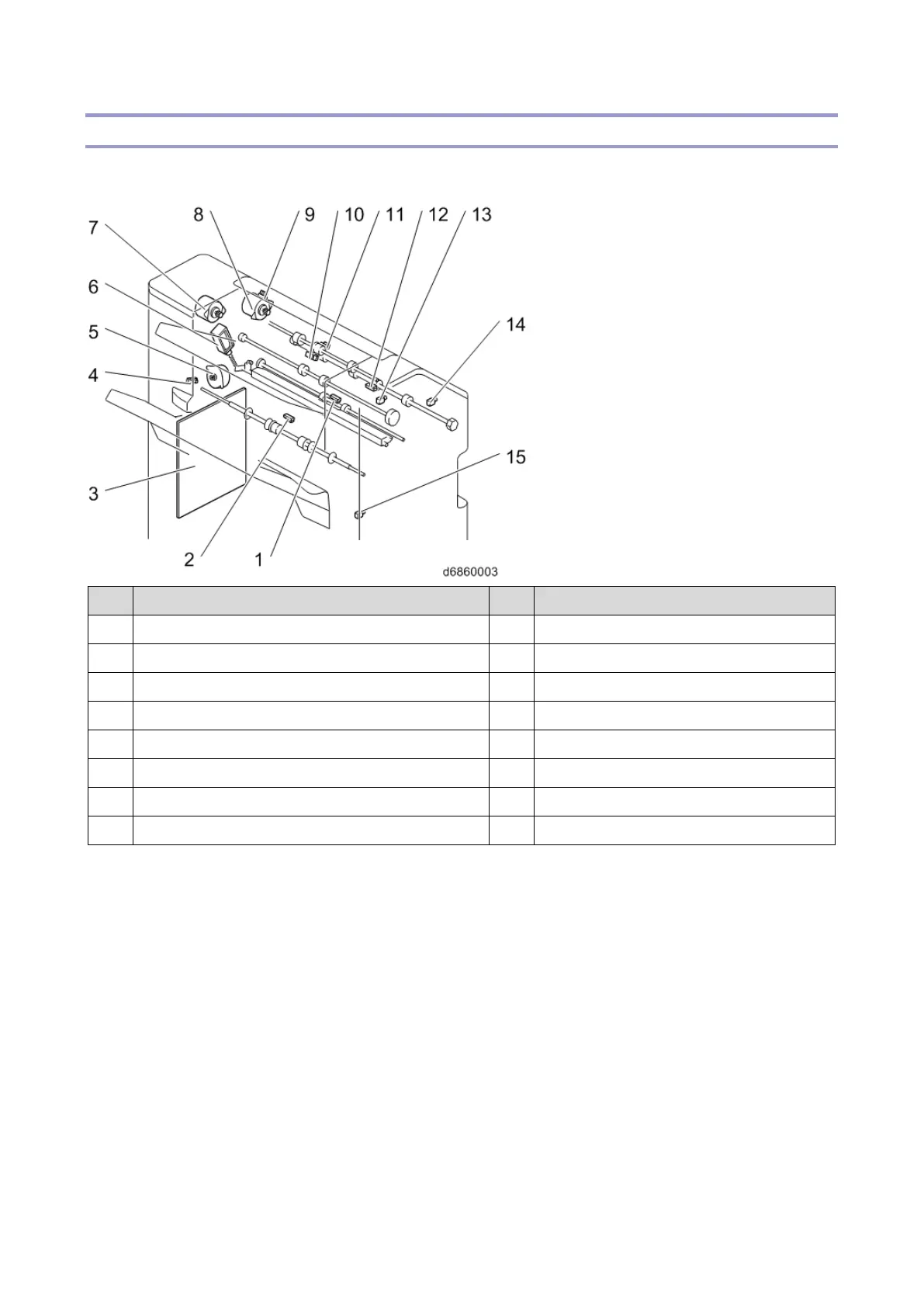

Electrical Component Layout
Transport system
No.
Description
No.
Description
1
Intermediate Transport (Right) Sensor (S20)
9
Upper Cover Sensor (S16)
2
Intermediate Transport (Left) Sensor (S19)
10
Proof Tray Full Sensor (S21)
3
Main Controller Board (PCB1)
11
Proof Tray Paper Exit Sensor (S22)
4
Shift HP Sensor (S17)
12
Entrance Sensor (S18)
5
Shift Motor (STM1)
13
Straight Transport LED (LED2)
6
Junction Gate Solenoid (SOL1)
14
Entrance Jam Detection LED (LED3)
7
Proof Transport Motor (DCM2)
15
Stapler Jam Detection LED (LED1)
8
Entrance Transport Motor (DCM1)
-
-
