1.Detailed Descriptions
47
Punch unit
type
Paper size
holes
2 & 3 holes
type: 2 holes
SEF: A3, B4 JIS, B5 JIS, A5, 11 x 17, 8 1/2 x 14, 8 1/2 x 11, 5 1/2 x 8 1/2, 7 1/4 x 10
1/2, 8 x 13, 8 1/2 x 13, 8 1/4 x 13, 8K, 16K, 8 1/4 x 14, 8 x 10, 11 x 15, 10 x 14
2 & 3 holes
type: 2 holes
LEF: A4, B5 JIS, 8 1/2 x 11, 7 1/4 x 10 1/2, 16K
2 & 3 holes
type: 3 holes
SEF: A3, B4 JIS, 11 x 17, 11 x 15, 10 x 14, 8K
2 & 3 holes
type: 3 holes
LEF: A4, B5 JIS, 8 1/2 x 11, 7 1/4 x 10 1/2, 16K
Paper weight:
52–256 g/m
2
(14 lb. Bond–140 lb. Index)

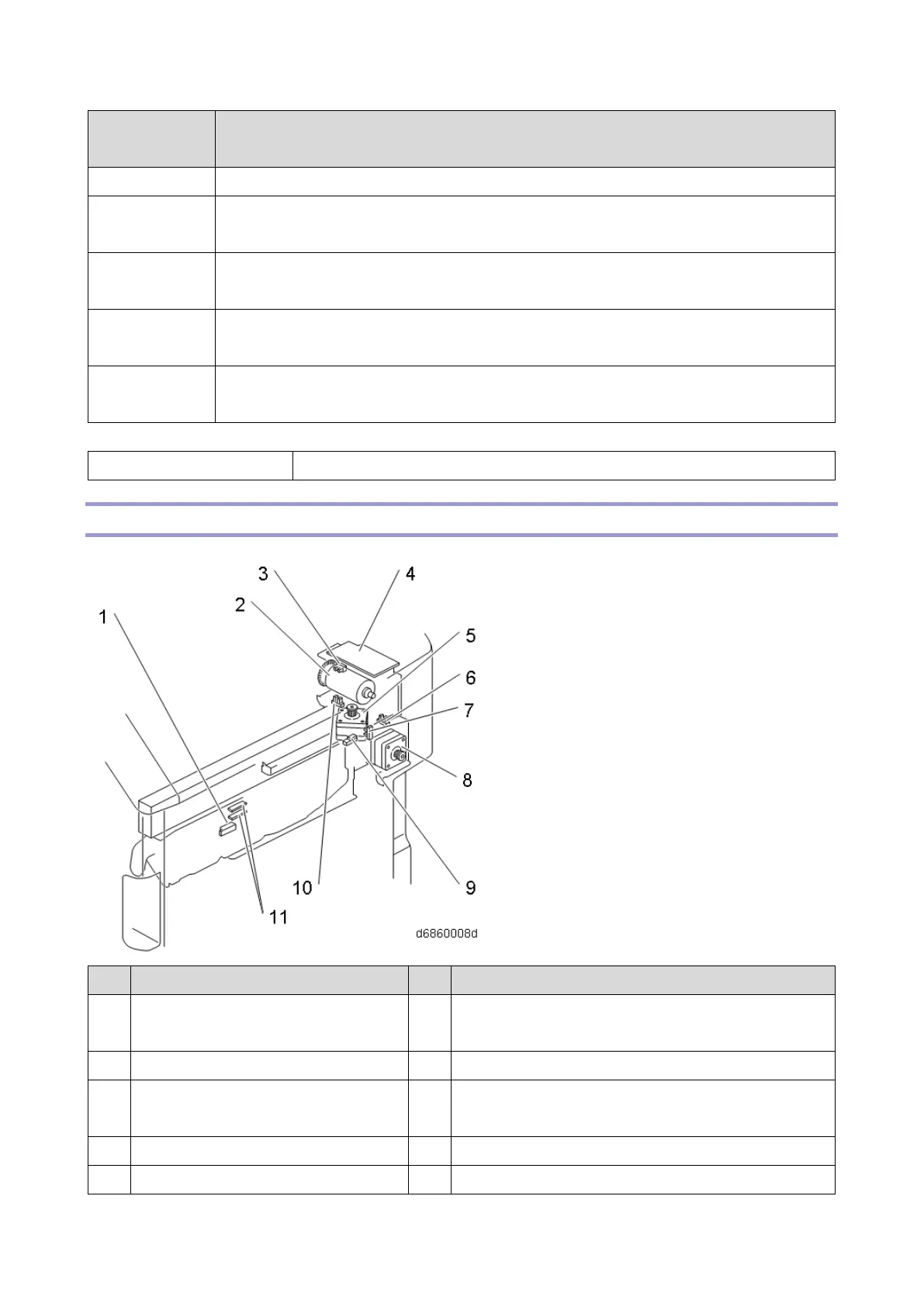

Parts Layout
No.
Description
No.
Description
1
Hopper Full Sensor (S32)
7
Horizontal Registration Correction Unit HP Sensor
(S31)
2
Punch Drive Motor (DCM8)
8
Horizontal Registration Correction Motor (STM15)
3
Punch Pulse Wave Count Sensor
(S34)
9
Horizontal Registration Correction Sensor (S29)
4
Punch Unit Controller Board (PCB2)
10
Punch HP Sensor (S33)
5
Punch Unit Moving Motor (STM14)
11
Relay Board (PCB3)
